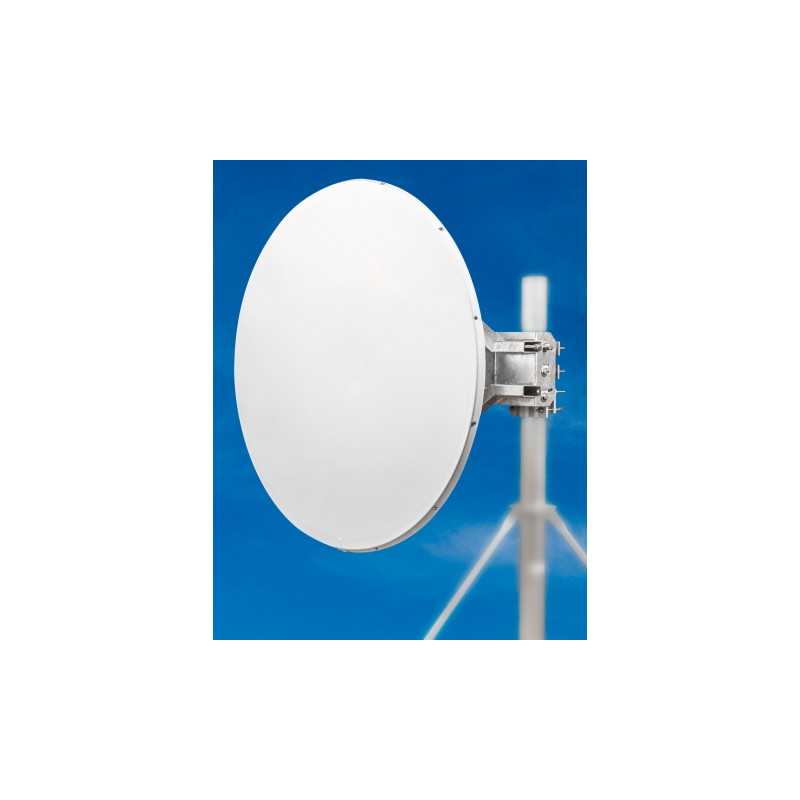

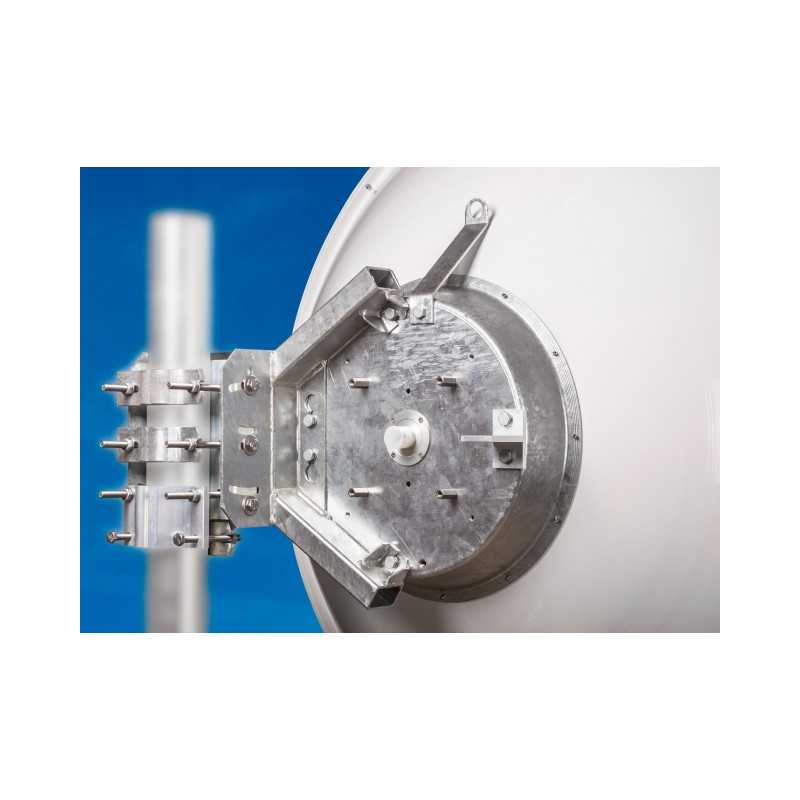

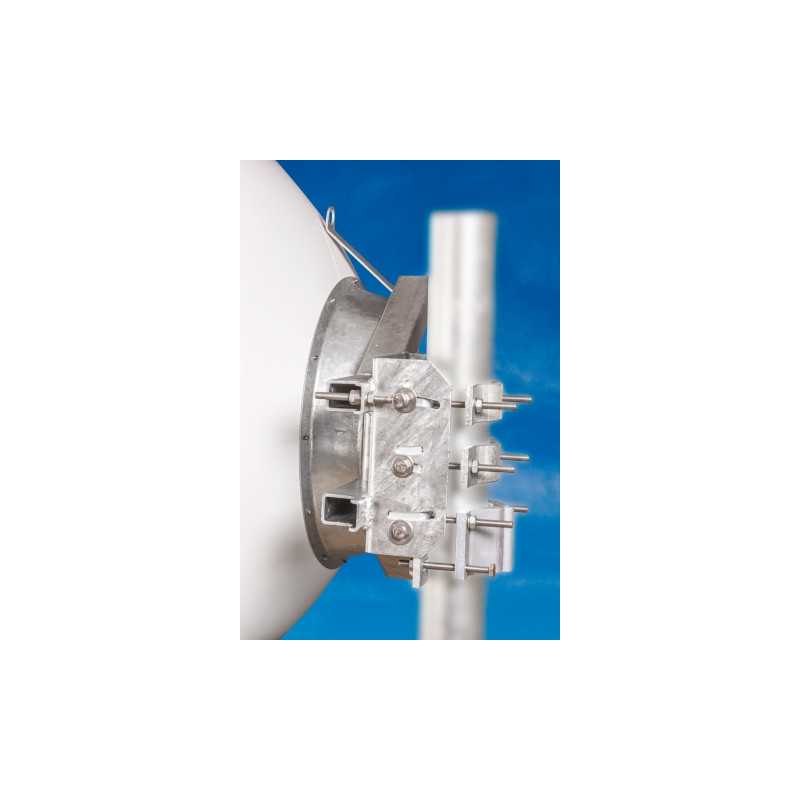

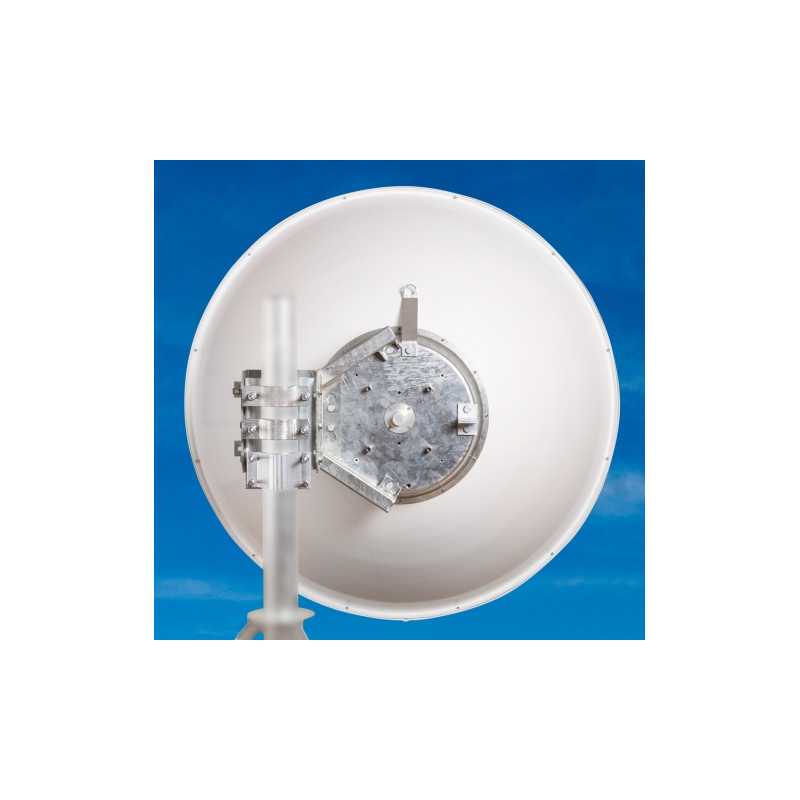

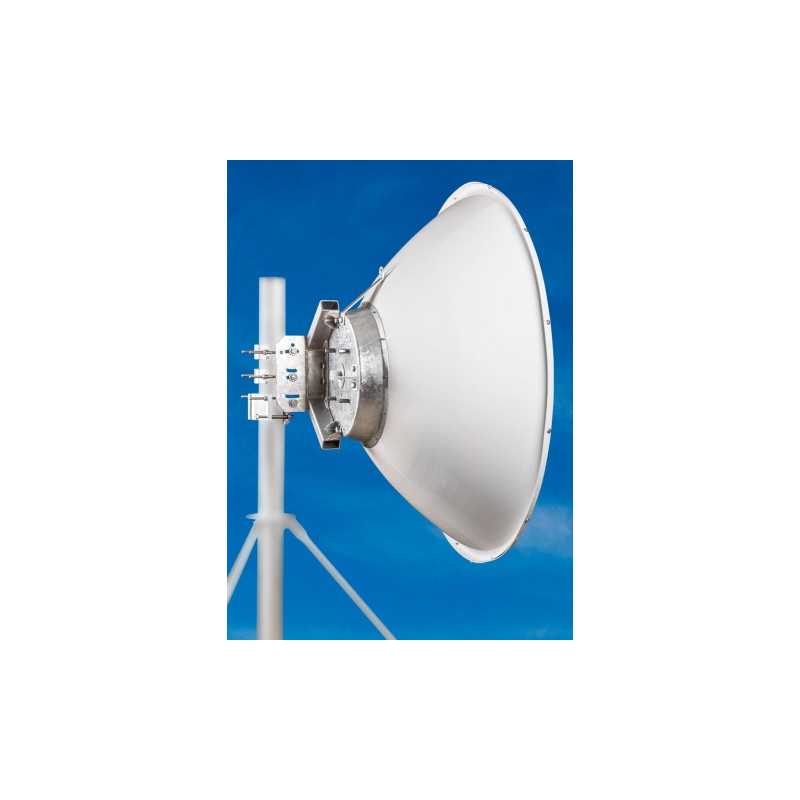

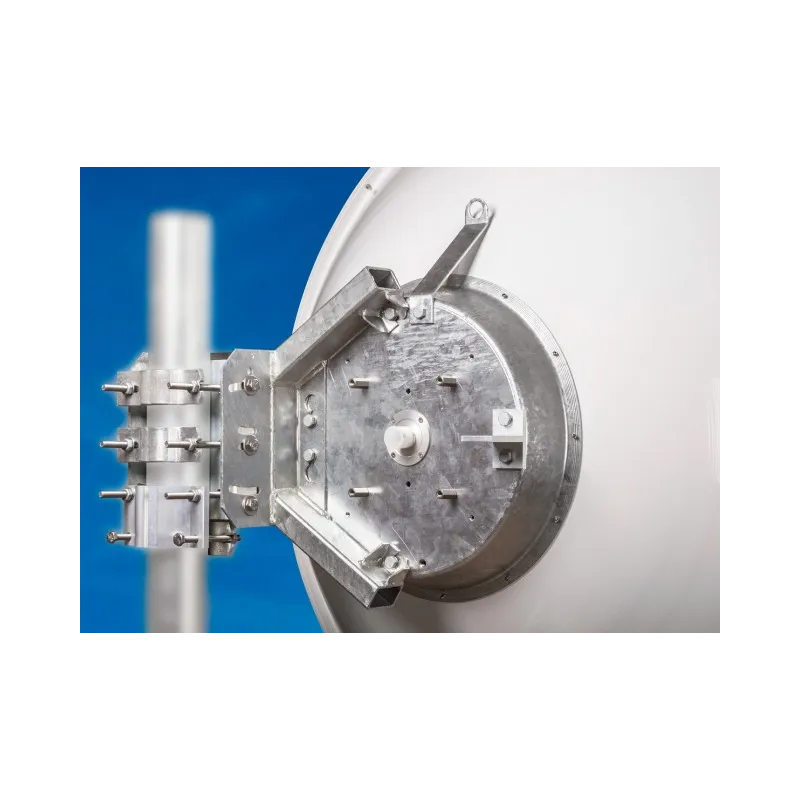

Jirous JRMD-1200 Parabolic Antenna 10/11, 10 – 12GHz, 40dBi, Designed for Mimosa B11

Jirous antenna JRMD-1200-10/11 Parabolic antenna for MIMOSA B11

Parabolic dual-polarized antenna with 40dBi gain is designed to work with Mimosa B11 radio in 10 GHz band. The antenna has high separation between 60.5dB polarizations. We can avoid many interference and noise from other transmissions, thanks to narrow main beam (1.5°).The antenna has a solid handle for precise adjustment in both directions. Ready to mount on the right and left side. Recommended maximum wind speed 140 km/h.

Application:

• Dual polarization antenna, horizontal and vertical polarization
• Polarization separation 50 dB
• The mounting allows for right and left-handed installation
• Radom (plastic parabola cover)

Energy gain:

Low frequency: 39.5 ±1 dBi
High frequency: 40.5 ±1 dBi
