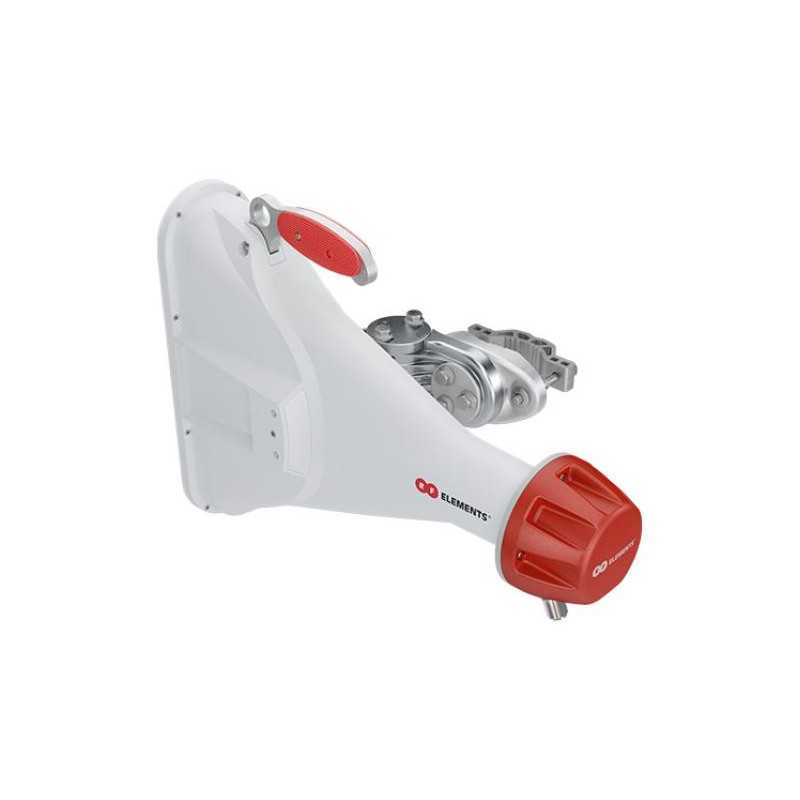

RF Elements HG3-CC-A60 | Sector antenna | 5GHz - 6GHz, 17dBi, 60°, 2x N-Female

Groundbreaking RF Sector Antennas Elements Horn CC

Horn CC asymmetric antennas, including the HG3-CC-A60 model, provide a unique asymmetric beamformer while maintaining the excellent noise rejection and overall superior performance of a well-designed horn antenna with N-Female connectors. This allows for a new level of network scalability and increased throughput. Horn CC asymmetrical antennas complete the Horn series of excellent symmetrical antennas.

Unique asymmetrical beam

Horn CC asymmetric antennas have a unique beam shape. The cross section of the beam is elliptical: wide in azimuth and narrow in elevation plane. This is useful for applications where an asymmetrical beam shape provides better coverage.

No side leaves

AsymmetricalHorn CC anten nas have naturally attenuated side lobes due to their optimized design: they concentrate energy in one main beam. The absence of side lobes provides excellent network immunity to interference when using Asymmetrical Horn CCantennas.

Broadband performance

The radiation pattern of Asymmetrical Horn CC antennas is stable over the entire bandwidth.

Balanced horizontal and vertical beam characteristics

Horn CC Asymmetrical Antennas have balanced horizontal and vertical beam patterns. Balanced H+V beams are very difficult to achieve for antennas with asymmetrical beam patterns and this is an area where all competitive products in the market fail. Balanced H+V beams are a critical feature for stable link operation when switching channels.

High gain of asymmetrical Horn CC antennas

AsymmetricalHorn CC antennas have higher gain compared to Symmetrical Horn antennas with the same azimuth beamwidth. Horn CC Asymmetrical Antennas cover a very wide frequency range: 5180-6000 MHz with excellent VSWR performance.

Perfect signal coverage

Mainstream patch array sector antennas have a very wide radiation pattern in azimuth and a very narrow one in elevation plane. If the AP is installed on a tall tower, customers near the tower suffer from low AP signal levels. Horn CC asymmetric antennas provide valuable additional degrees of beamwidth at elevation, reducing the null zone while maintaining increased gain for long ranges.

N-type connectors

Horn CC asymmetrical antennas feature N-female connectors, used in a wide range of devices such as the Mimosa A5c, Cambium Networks PMP 450, LigoWave and many others.
