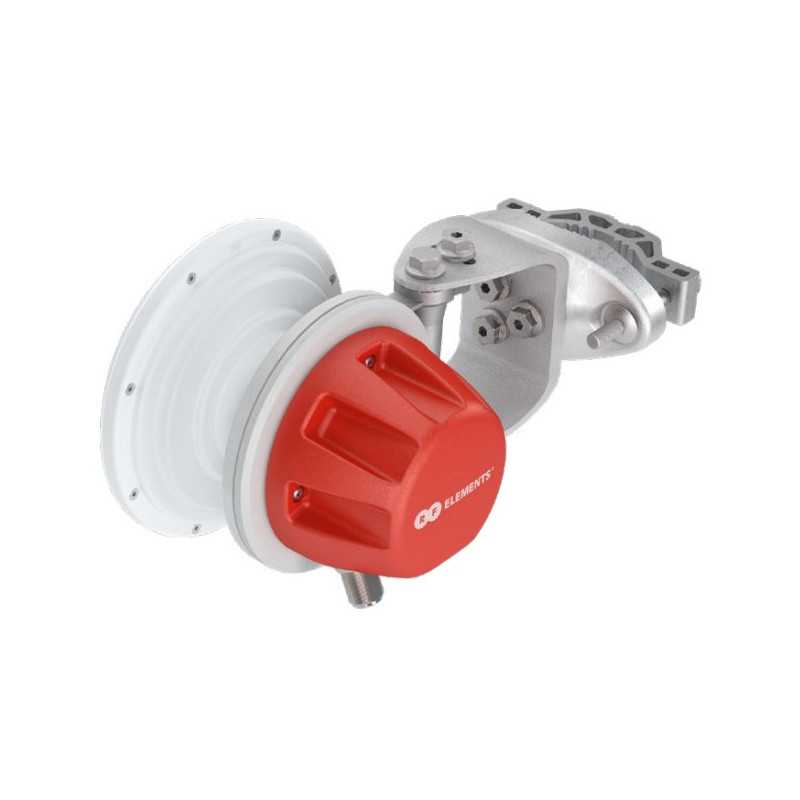

RF Elements HG3-CC-S70 | Sector antenna | 5180 - 6400MHz, 11.5dBi, 70°
EAN: 4250605584979
Reference: HG3-CC-S70
127.86 zł gross gross / meter 103,95 zł netto gross / piece
Warranty and service support
Available options and delivery cost
Same-day shipping
Payments methods
Meet RF Elements HG3-CC-S70, a sector antenna that delivers unparalleled performance and reliability.
With an impressive 11.5dBi energy gain and 70° beamwidth, this antenna is ideal for demanding wireless users. The use of high-quality materials and innovative technology guarantees durability and resistance to harsh weather conditions.
High energy gain
The Elements HG3-CC-S70 RF antenna offers an energy gain of 11.5dBi, providing excellent performance and long-range signal coverage. As a result, your network will operate stably and efficiently, even in harsh conditions. It is ideal for professionals who need reliable WLAN equipment.
Precise beam width and durability
With a beamwidth of 70°, the RF Elements HG3-CC-S70 sector antenna allows for accurate and efficient signal targeting. The antenna is designed for outdoor use, as evidenced by its IP55 rating. Made of UV and corrosion-resistant materials such as stainless steel and plastic - the antenna from RF Elements is extremely durable and reliable.
Height 152 mm
Antenna type Horn antenna
Width 312 mm
Depth 162 mm
Mounting pipe 30 mm
Package weight 2600 g
Antenna gain level (max) 11.5 gain
Master (outer) case height 335 mm
Impedance 50 Ω
Master (outer) case width 940 mm
Front to back ratio 30 decibel
Operating temperature (T-T) -30 - 55 °C
Package depth 239 mm
Downtilt 25 °
Package height 183 mm
Master (outer) case gross weight 27400 g
Package width 305 mm
Mounting Pole
Master (outer) case length 510 mm
International Protection (IP) code IP55
Product colour Red
Wind load 22
Survival wind speed 160 km/h
Ultraviolet (UV) resistant Yes
Voltage Standing Wave Ratio (VSWR) 1.6/1.9
Horizontal beam width 70 °
Vertical beam width 70 °
Polarization Dual polarization
Antenna connector type N-type
Connector gender Female
Watch case material Aluminium
Designation Outdoor
Product weight 1800 g
