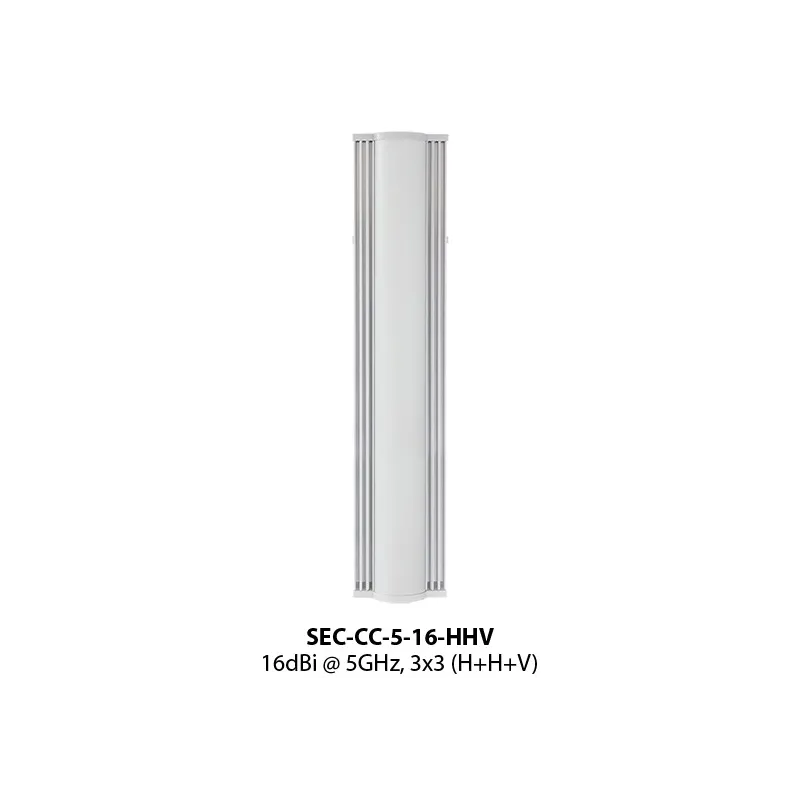

RF Elements SEC-CC-5-16-HHV Sector Antenna, MIMO, 5GHz, 16dBi, 3x RP-SMA
EAN: 5711783894469
Reference: SEC-CC-5-16-HHV
129.15 zł gross 105,00 zł netto
Warranty and service support
Available options and delivery cost
Same-day shipping
Payments methods
CARRIER CLASS sector - efficiency and larger transmission coverage area
The CARRIER CLASSsectors meet customer requirements in terms of radio performance, noise resistance at the collocation site, ease of installation and cost effectiveness. The antennas are equipped with an innovative Back-Shield™ system, a patent-pending system of selective frequency reflectors built into the antenna structure to attenuate the side and rear panel near field radiation.
The 5 GHz 16 dBi 16 dBi sector antenna is a triple polarization version of the CARRIER CLASS sector with two antennas for horizontal polarization and one antenna for vertical polarization.
Height 783 mm
Antenna type Sector antenna
Width 172 mm
Depth 263 mm
Product colour Grey
Antenna gain level (max) 16.7 gain
Mounting Wall/Pole
Impedance 50 Ω
Antenna connector type RP-SMA
Package depth 100 mm
Package height 220 mm
Package width 1150 mm
Package weight 4000 g
International Protection (IP) code IP55
Weight 3000 g
