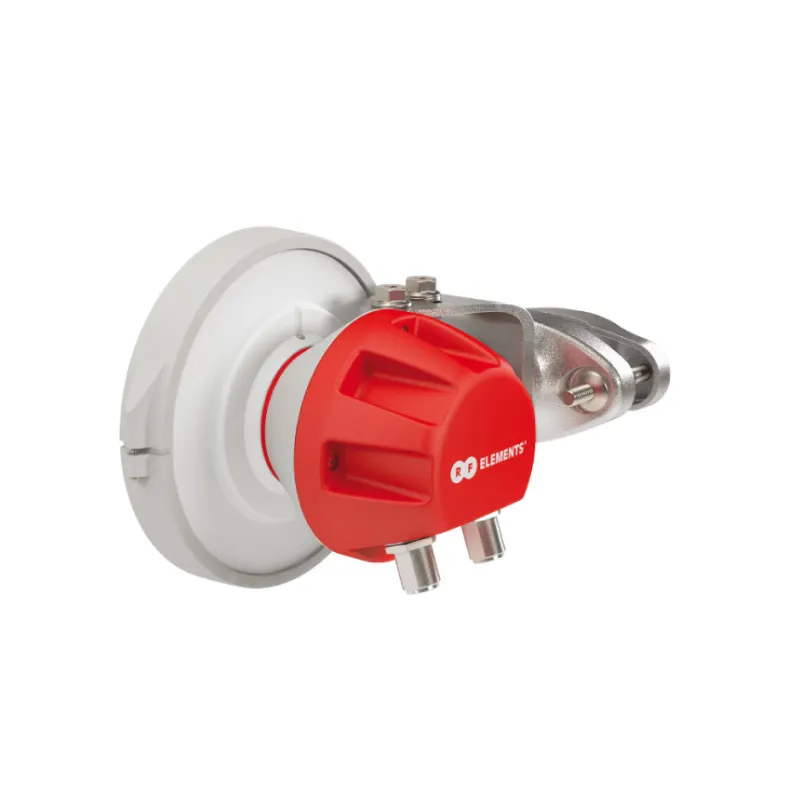

RF Elements SH-CC-5-90 | Sector horn antenna | 5GHz, 10dBi, 90°, 2x N Female
EAN: 5706998262950
Reference: SH-CC-5-90 HORN
127.86 zł gross gross / meter 103,95 zł netto gross / piece
Warranty and service support
Available options and delivery cost
Same-day shipping
Payments methods
Symmetrical RF Elements sector antenna with 90 degree beam beam
Symmetric RF ElementsSymmetric sector antenna of the Carrier class with a 90 degree beam. This Symmetrical Horn (horn) sector antenna (horn) from the SH-CC series offers exceptional performance, typical of RF products, in a compact housing. It has a long range and provides symmetrical coverage of the transmission of a specific area. It has a 2 x N-Female female connector.
SH-CC antenna series
RF Elements' SH-CC antenna series offers exceptional performance in a compact, user-friendly housing. All HORN type antennas have symmetrical beams with identical patterns both vertically and horizontally. The SH-CC series antennas are extremely resistant to interference due to extremely small side flaps.
Height 160 mm
Width 260 mm
Depth 130 mm
Mounting pipe 15 mm
Package weight 2400 g
Antenna gain level (max) 10 gain
Impedance 50 Ω
Front to back ratio 28 decibel
Operating temperature (T-T) -30 - 55 °C
Package depth 320 mm
Downtilt 25 °
Package height 240 mm
Package width 310 mm
Mounting Pole
International Protection (IP) code IP55
Product colour Red
Wind load 26
Survival wind speed 160 km/h
Voltage Standing Wave Ratio (VSWR) 1.8
Horizontal beam width 90 °
Vertical beam width 90 °
Polarization Dual linear polarization
Antenna connector type N-type
Connector gender Female
Watch case material Aluminium
Designation Outdoor
Product weight 1700 g
