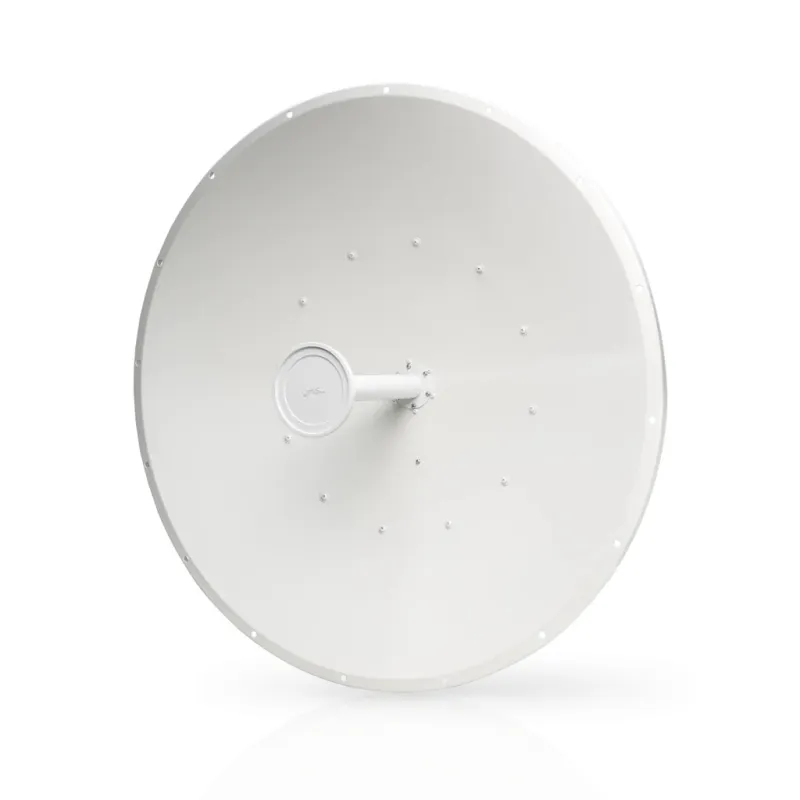

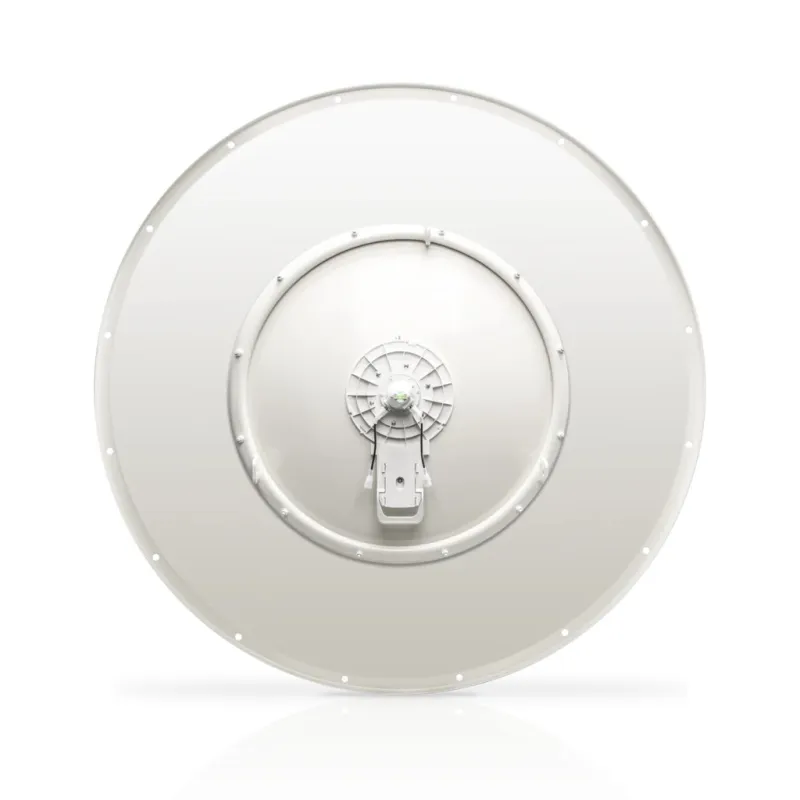

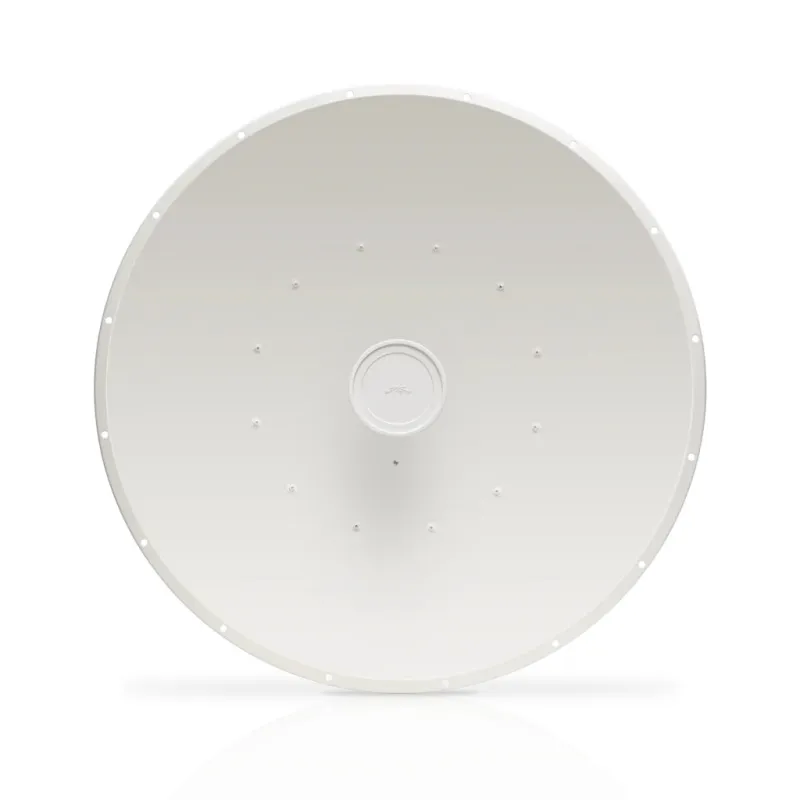

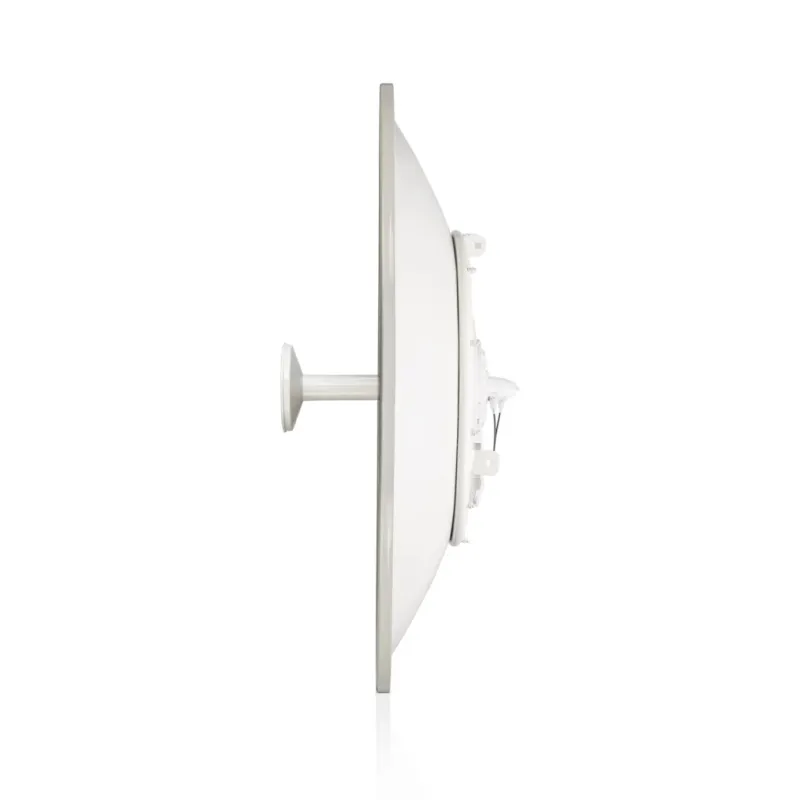

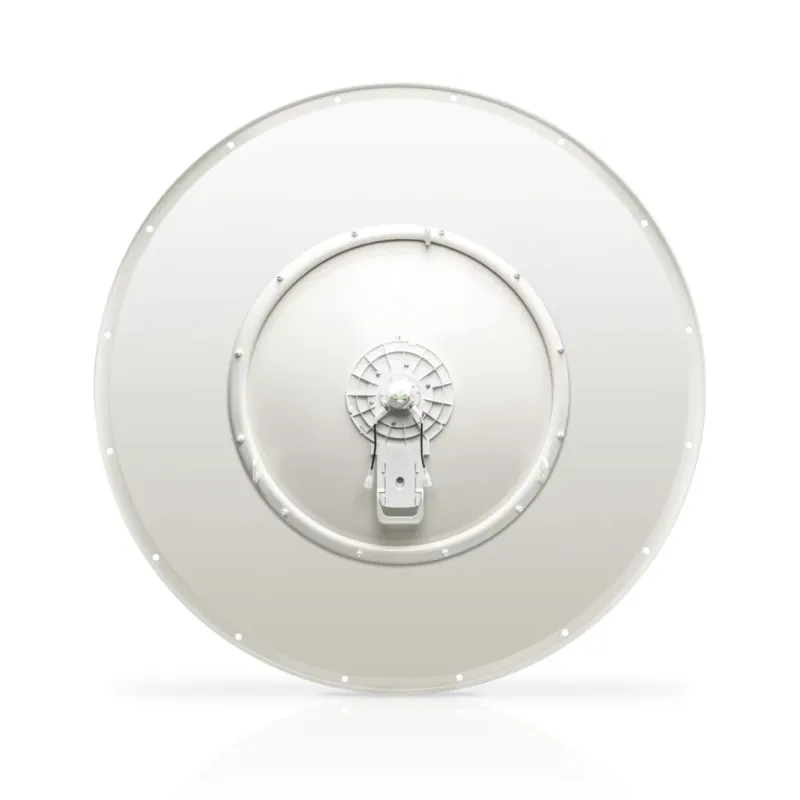

Ubiquiti AF-5G34-S45 | Directional antenna | airFiber Dish, 5GHz, 34dBi
EAN: 0810354023446
Reference: AF-5G34-S45
1,243.01 zł gross gross / meter 1 010,58 zł netto gross / piece
Warranty and service support
Available options and delivery cost
Same-day shipping
Payments methods
Small footprint for flexible deployment
The airFiber X device together with the airFiber X antenna can be used as a high quality endpoint, point to point bridge (PtP) or backhaul connection. AirFiber X supports diagonal polarization ± 45° to increase interference immunity and use SNR. Compounding execution means that airFiber X can be mounted on the Ubiquiti directional antenna without the need for additional tools.
Advanced radio signal isolation
Ubiquiti AF-5G34-S45 is a special directional antenna, operating in the 5GHz frequency band and with a gain of 34dBi. The radiation characteristics of the directional antenna guarantees the highest possible signal-to-noise ratio (SNR) and high resistance to interference from other devices. The AIRFIBER DISH is designed to provide users with reliable connections and high performance.
Height 1050 mm
Width 1050 mm
Depth 421 mm
Isolation 34 decibel
Harmonized System (HS) code 85177100
Antenna gain level (max) 34 gain
Front to back ratio 42 decibel
Quick installation guide Yes
Product colour White
Survival wind speed 200 km/h
Voltage Standing Wave Ratio (VSWR) 1.4:1
Horizontal beam width (5 GHz) 3 °
Vertical beam width (5 GHz) 3 °
Polarization Dual polarization
Diameter 1050 mm
Product weight 13500 g
Information about responsible entities
Ubiquiti Networks Sro Manufacturer
Country: CZ
Street: Plzenska 345/5
Postal Code: 150 00
City: Praha
Mail: direct@ui.com
