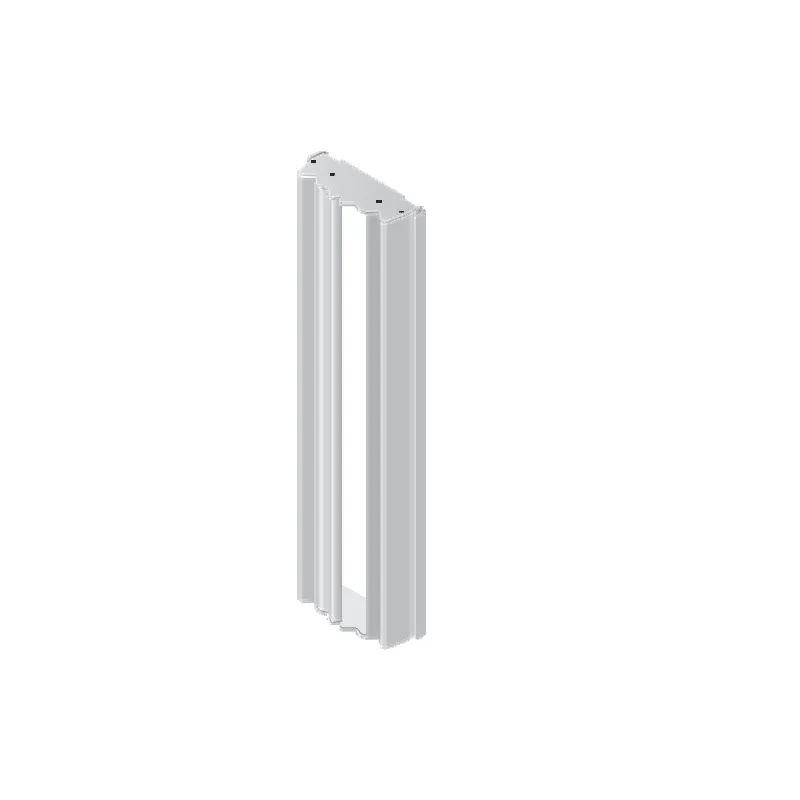

Ubiquiti AM-5AC22-45 | Sector antenna | airMAX, 5GHz, 22dBi
EAN: 0810354021404
Reference: AM-5AC22-45
751.03 zł gross gross / meter 610,59 zł netto gross / piece
Warranty and service support
Available options and delivery cost
Same-day shipping
Payments methods
Breakthrough design and performance
The airMAX ac sector antenna features an innovative deflector design and 2x2 bipolar performance for the airMAX network. The ubiquiti antenna works on 5GHz frequency which allows for fast communication.
Interference resistance
The airMAX ac sector antennas have reduced side bars so that they eliminate interference.
High transmission efficiency
Compare the airMAX ac sector antenna diagram, model AM-5AC22-45, with the standard sector antenna diagram and pay attention to the excellent interference resistance and transmission performance.
Rugged construction
The airMAX ac antennas are designed with a robust mechanical construction for outdoor use.
Plug and Play integration
Each ubiquiti airMAX ac sector antenna has a built-in Rocket handle, so no tools are needed to install the Rocket BaseStation.
Height 750 mm
Width 215 mm
Depth 94 mm
Harmonized System (HS) code 85177100
Antenna gain level (max) 22 gain
Mounting Wall
Product colour White
Voltage Standing Wave Ratio (VSWR) 1.5:1
Horizontal beam width 45 °
Vertical beam width 45 °
Polarization Dual polarization
Product weight 6000 g
