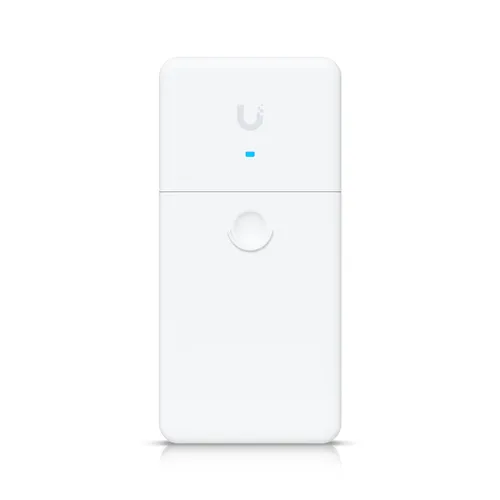

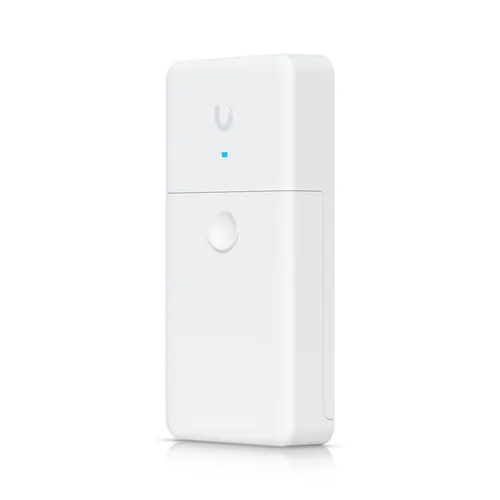

FiberPoE provides fiber optic connectivity to any PoE device.
FiberPoE has an external, weatherproof enclosure with integrated load management.
FiberPoE allows for separation of power supply from standard Ethernet cables or a standard block of power terminals/cables. There are three ways to configure input and output power.
The use of fibre optic cable for data transmission significantly reduces failures from electrostatic discharge (ESD) and electromagnetic interference (EMI). Data integrity is also maintained for transmissions above 100 meters, which is a limitation for Ethernet networks via twisted-pair. FiberPoE Gen 2 supports 1G SFP and power supply 24 V or 50 V from a DC or PoE cable.
| Features / filters | |
| Data transmission speed | Gigabit Ethernet |
| Type of fiber optic connector | SFP slot |
| Certification | CE, FCC, IC |
| Connectivity technology | Wired |
| Depth | 93.5 |
| Dimensions (WxDxH) | 196.4 x 93.5 x 32.4 |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber optic connector | SFP |
| Fiber ports quantity | 1 |
| Harmonized System (HS) code | 85176990 |
| Height | 32.4 |
| Input voltage | 57 |
| Internal | Yes |
| Maximum data transfer rate | 1000 |
| Operating relative humidity (H-H) | 10 - 95 |
| Operating temperature (T-T) | -40 - 60 |
| Output voltage | 24 - 50 |
| Power consumption (typical) | 1.5 |
| Power over Ethernet (PoE) ports quantity | 1 |
| Product colour | White |
| Weight | 288 |
| Width | 196.4 |
| Basic technical parameters | |
| Dimensions | 196,4 × 93,5 × 32,4 mm |
| Weight | 288 g |
| Case | White polycarbonate |
| Interface connectors | (1) 1 Gbps SFP Port SFP (1) DC terminal block (1) RJ45 port, 2-par or 4-par DC (1) 1 Gbps1 Ethernet PoE port, 2-par (24VDC input) or 4-par (24 or 50VDC input) PoE Passthrough |
| PoE polarization | 2-pairs (24 or 50VDC) Pins 4, 5 (+); 7, 8 (-) 4-par (50VDC) Pins 1, 2, 4, 5 (+); 3, 6, 7, 8 (-) |
| Power supply method | RJ45 DC input, 2-par or 4-par PoE compatibility RJ45 PoE Port, 2 or 4 pair PoE compatibility DC terminal block |
| PoE Output (RJ45 PoE Port) | 2-par or 4-par (24VDC input), or 4-pair (50VDC input) Passthrough |
| DC output (connection block) | 24 or 50VDC (DC input or PoE port) |
| DC input voltage | 16 to 57 V |
| Typical power consumption | 1.5W |
| Surge protection | Built-in high-current gas-discharge tube for DC terminal block and PoE port |
| Operating temperature | -40 to 60° C |
| Operating humidity | 10 to 95% |
| ESD/EMP protection | ± 24kV Air, ± 24kV Contact |
| Certificates | CE, FCC, IC |

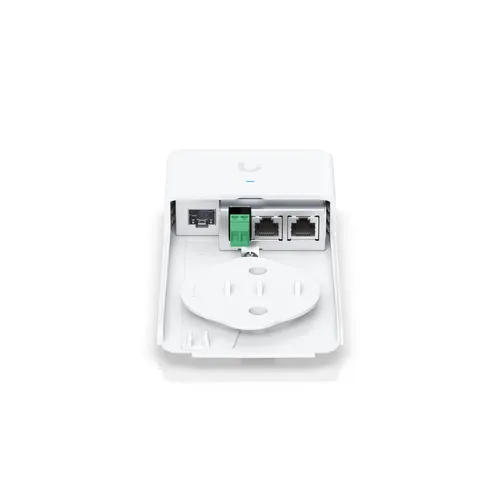

1. Attach the optical SFP module to the SFP port.
2. Remove the cover from the optical cable and connect the optical fiber to the SFP module.
3. Roll the optical fiber around the wheel counter-clockwise.
4. Continue until the cable has made at least 1½ turns. Secure the cable in the clamp.
5. Attach the other end of the optical cable to another optical device.
Operating temperature from: -40 to 60° C
Power method:
- RJ45 DC input, 2-par or 4-par PoE compatibility
- RJ45 PoE Port, 2 or 4 pair PoE compatibility
- DC terminal block
