Direct buried fiber optic cable 4F | DAC Z-XOTKTCD, single mode, 4J, G652D, 1,2kN, 5.3mm | Fiberhome

4F DAC Z-XOTKTCD Optical Fiber Cable

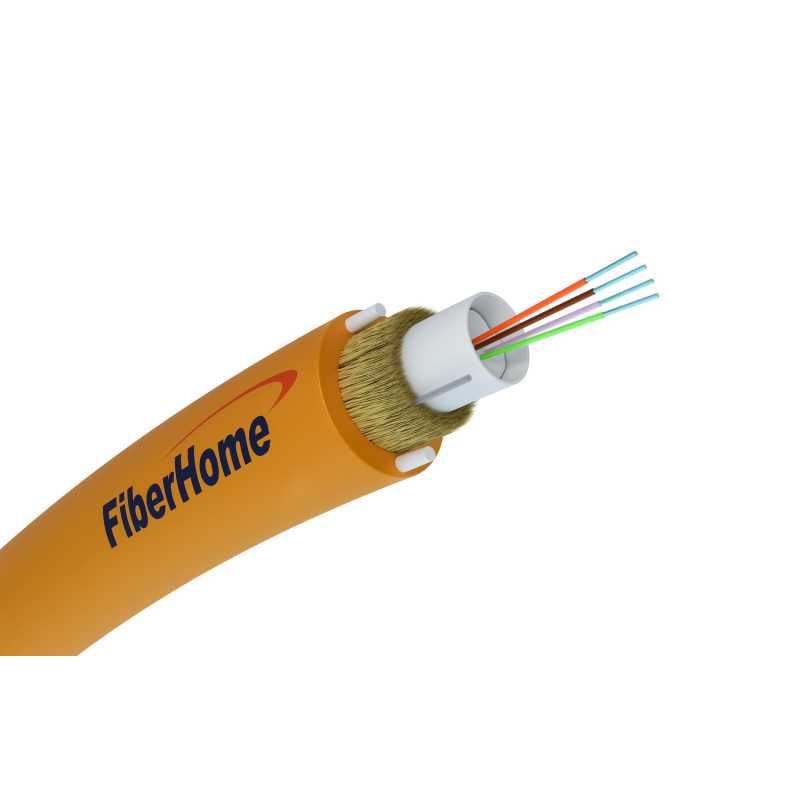

4F DAC Z-XOTKTCD fibre optic underground cable is a terrestrial fibre optic cable designed for direct burial in the ground. For its construction 4 fibers of G.652D type have been used, which are placed in the central tube. Strengthening element, in addition to perimeter strength elements, are two FRP rods from aramid yarn embedded in outer jacket, which provide required cable tensile strength. The HDPE outer sheath protects the cable from the external environment.

Compared to ordinary aramid cables, it has thicker FRP rods and a thicker outer sheath.

Key features

• Fibre G.652.D
• Tensile strength 1,2 kN
• 1.2 mm thick HDPE outer shell
• Two 0,8 mm diameter FRP reinforcing rods
• Diameter 5.3 mm
