Extralink 144F | Fiber optic cable | Single mode, 12T12F G652D 8.8mm, microduct, 2km

Fiber optic microduct cable 144F 12T12F, G652D, 8.8mm

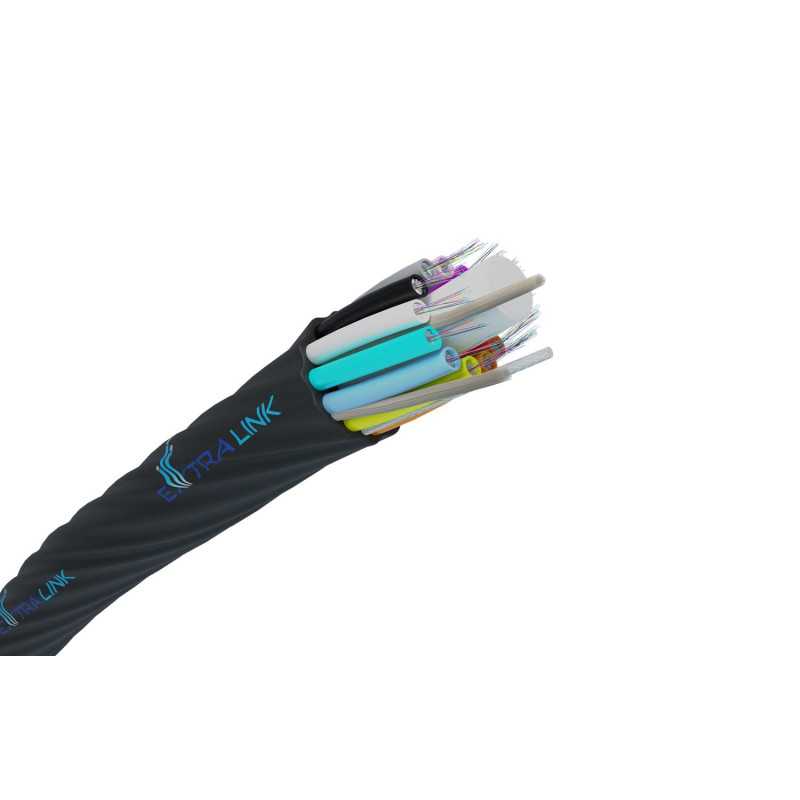

Extralink MICROCABLE is a fiber optic cable designed to be used in microducting. 12 G.652D type fibers were used. The construction of the cable is 12 tubes twisted around a central FRP rod, which is a strengthening element. Additionally, the cable is filled with Water Swellable Yarn - a polyester yarn swelling in water which prevents water penetration. The cable's outer coating is corrugated for easy blowing of the cable into the sewer pipe.

Features of fiber optic cables:

• fibre G.652D
• 12 tubes twisted around the central FRP bar
• application of Water Swellable Yarn
• HDPE outer shell
• diameter 8.8 mm

Applications of fiber optic cables:

• microchanneling
