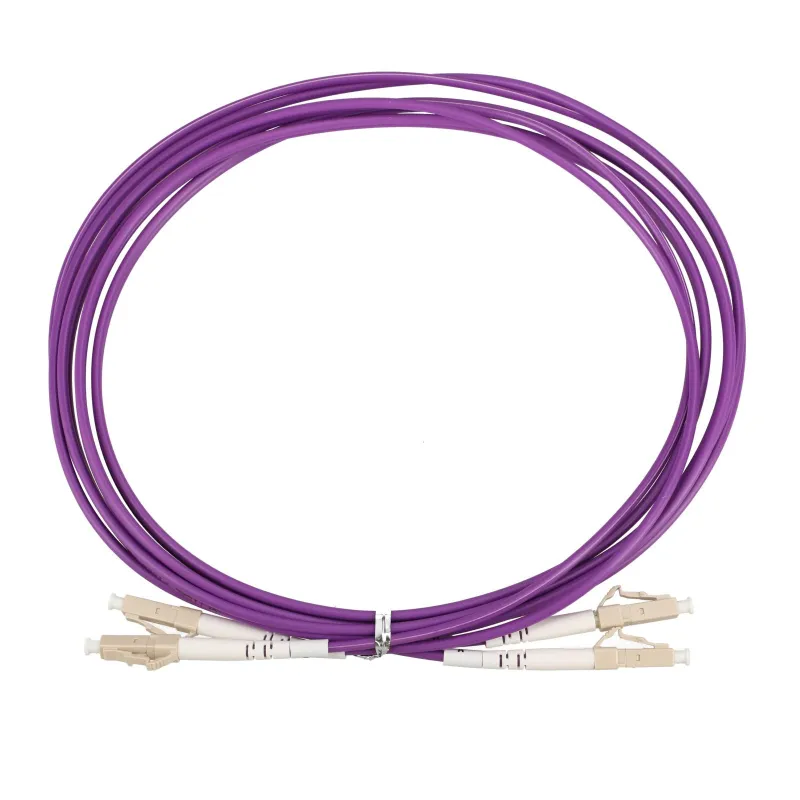

Extralink LC/UPC-LC/UPC | Patchcord | Multi mode, OM4, Duplex, 3mm, 2m

Fast network with Extralink

The Extralink LC/UPC-LC/UPC OM4 Duplex fibre optic patch cord contributes to efficient data exchange in your infrastructure. The use of multimode OM4 fibre enables stable optical signal transmission in the 850/1300nm band. The robust LSZH sheath helps ensure installation safety. Smooth operation in the duplex standard improves device performance.

High OM4 performance

The applied OM4 50/125µm fibre offers excellent bandwidth over short and medium distances. This solution supports the development of data backbones, offering low attenuation. The fibre performs exceptionally well in environments requiring high bandwidth, helping to avoid transmission delays.

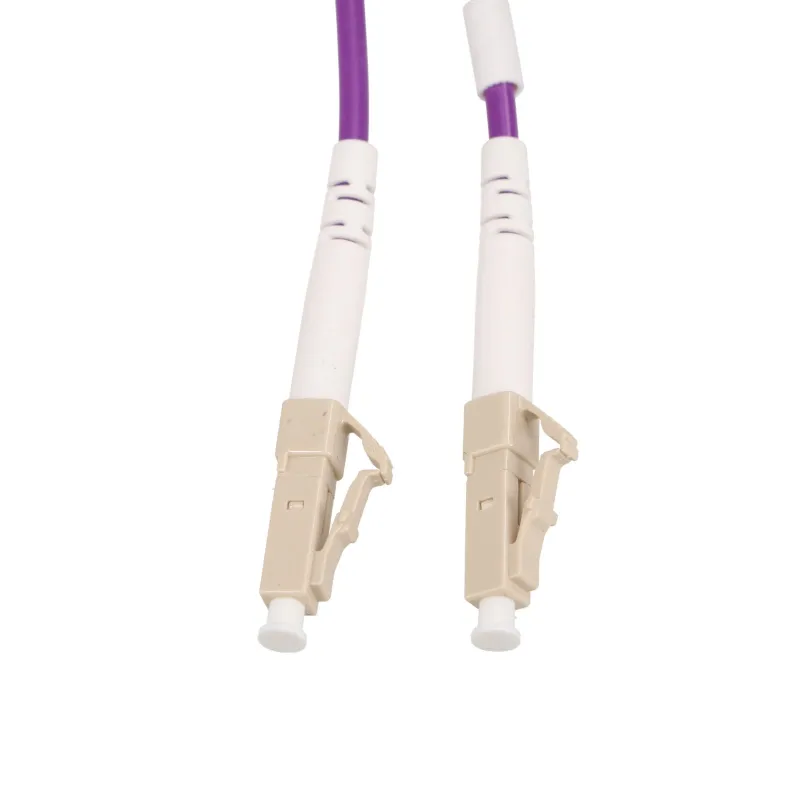

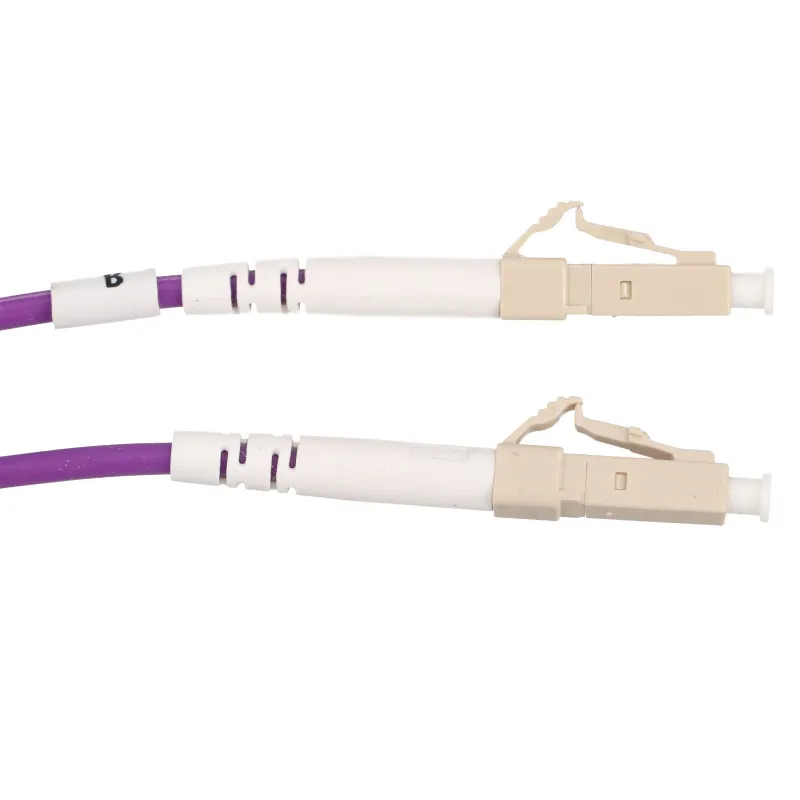

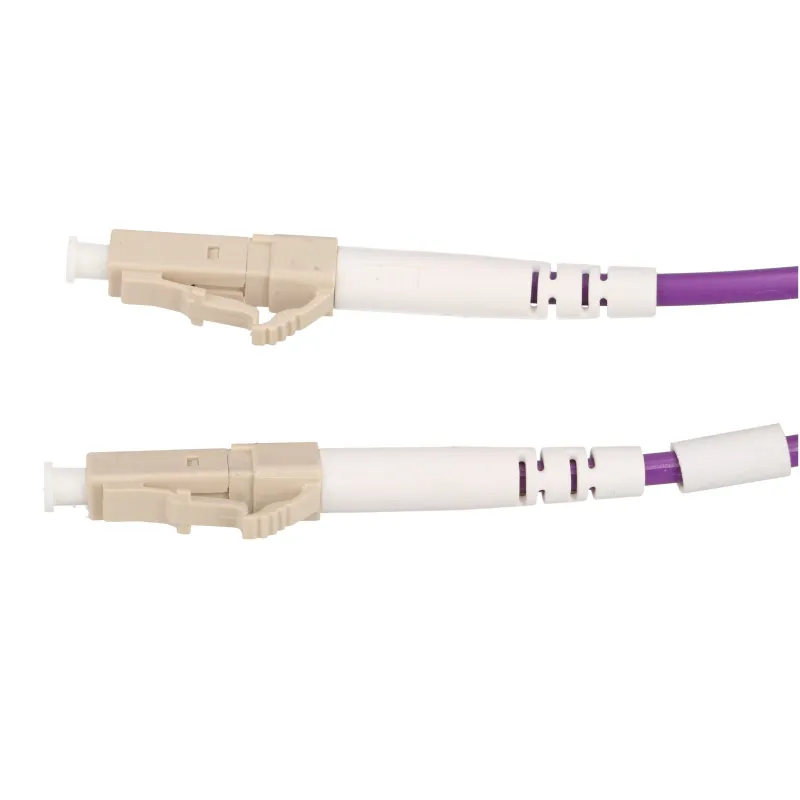

Compact LC connectors

The LC/UPC connectors with a ceramic ferrule save space in rack cabinets. The small size of the plugs makes cable management easier in densely populated patch panels. Precise UPC polishing minimises return loss and protects connection stability.

Safe LSZH sheath

The 3 mm diameter jacket is made of halogen-free LSZH material. In the event of a fire, the cable does not emit corrosive gases or thick smoke, which increases protection for people and equipment. The durable construction protects the internal fibres from bends and mechanical damage.

Wide operating tolerance

The product operates efficiently within a temperature range of from -10°C to +70°C. Stable transmission parameters mean the cable works excellently in demanding server environments. The 2-metre length makes it easy to arrange connections neatly inside control cabinets.

Who is this product for?

• Server room administrators – looking for stable connections between switches and servers.
• LAN and FTTx network installers – building modern structured cabling in offices and server rooms.
• Telecommunications service providers – connecting SFP optical modules in data backbones.

Benefits

• OM4 50/125µm fibre – enables high transmission speeds at 850nm and 1300nm wavelengths.
• Halogen-free LSZH sheath – increases fire safety in the building.
• LC/UPC connectors – allow dense packing of ports in optical patch panels.
• Duplex construction – enables two-way data transmission within a single cable.
