Extralink SC/APC-LC/APC | Patchcord | Single Mode, Duplex, 9/125um, 3mm, 1,5m
EAN: 5902560361421
Reference: EX.1421
12.50 zł gross 10,16 zł netto
Warranty and service support
Available options and delivery cost
Same-day shipping
Payments methods
EXTRALINK PATCHCORD SC/APC-LC/APC SM 9/125 DUPLEX G.657.A1 3.0MM 1,5M

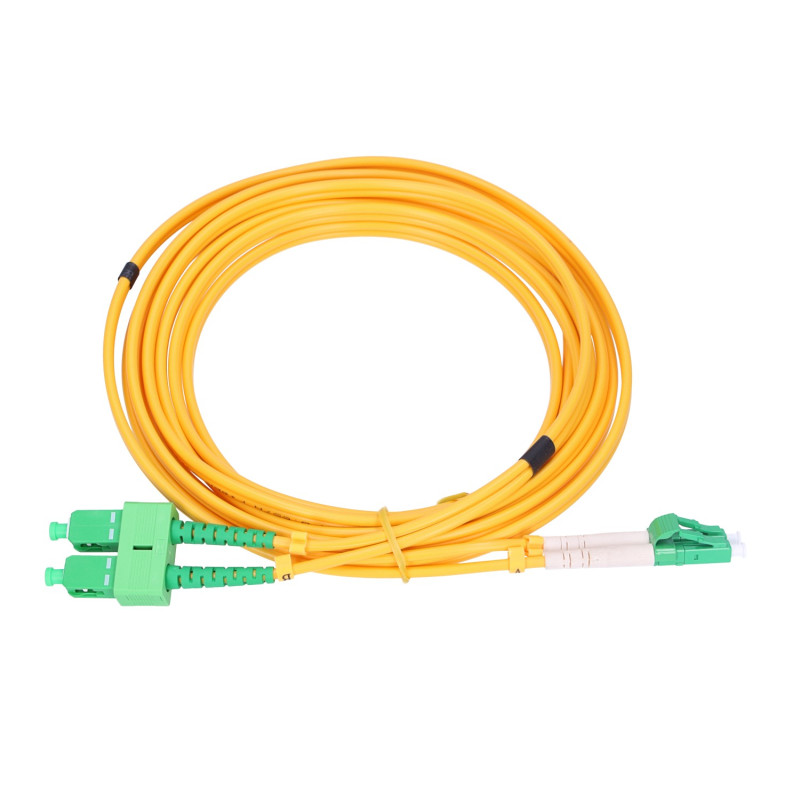

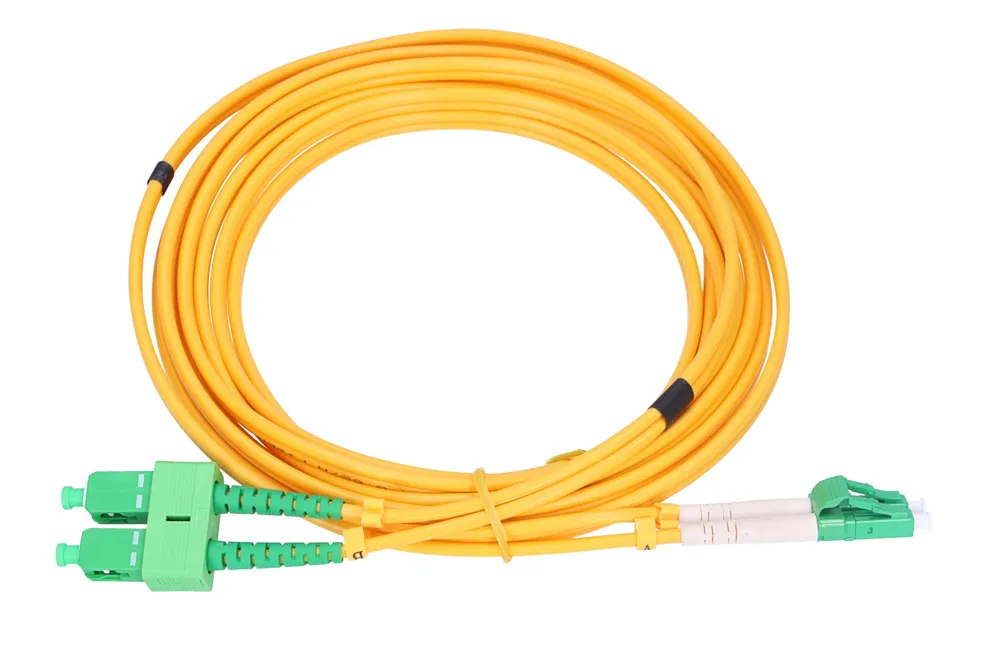

Patchcord (connection cable) single mode with double connected fibers. Length 1.5m and cable diameter 3mm. Terminated with SC/APC-LC/APC connectors. Used in devices connected to fiber optic networks.
Features of patchcords
- Attenuation ≤ 0.20 dB
- Tensile strength > 10 kg
- Repeatability ≤ 0.1 dB
- Reflectance loss ≥ 60 dB
- Operating temperature - 40 ÷ 80 ÷°C
Fiber mode structure Single-mode
Cable length 1.5 m
Package depth 200 mm
Package height 400 mm
Package width 200 mm
Cord diameter 3 mm
Sheath material Nylon/Polyvinyl Chloride (PVC)
Connector polish type APC
Product colour Yellow
Connector 2 gender Male
Connector 1 gender Male
Fibre optic type G.657.A1
Cable type FTTH
Connector 2 LC
Connector 1 2x SC
Optical patchcord connectors SC/APC-LC/APC
Information about responsible entities
Batna Sp. z o. o. Manufacturer
Country: PL
Street: 1 Maja 23
Postal Code: 42-202
City: Częstochowa
Mail: info@extralink24.com
