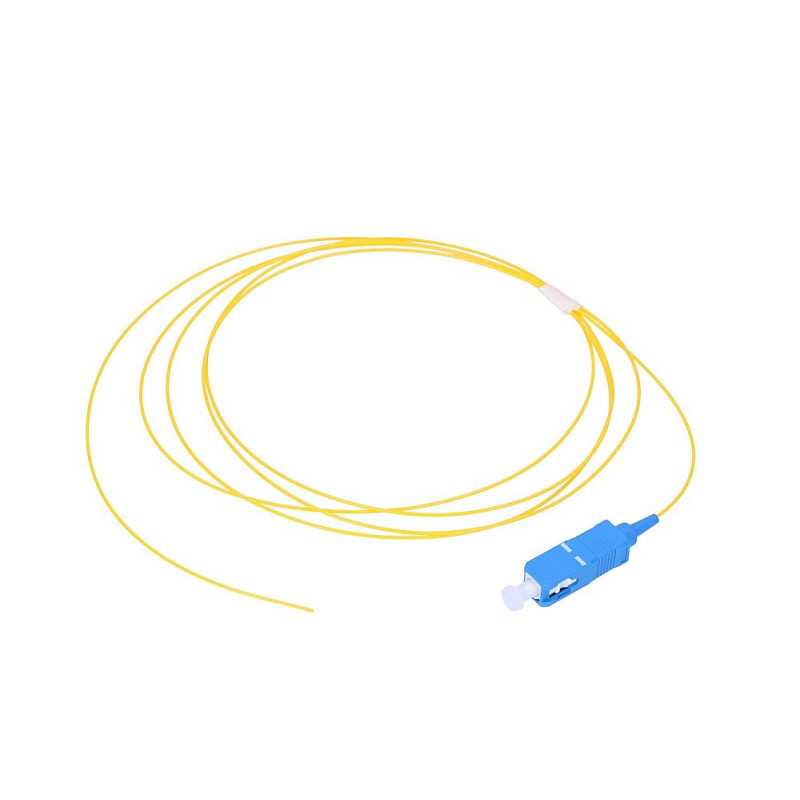

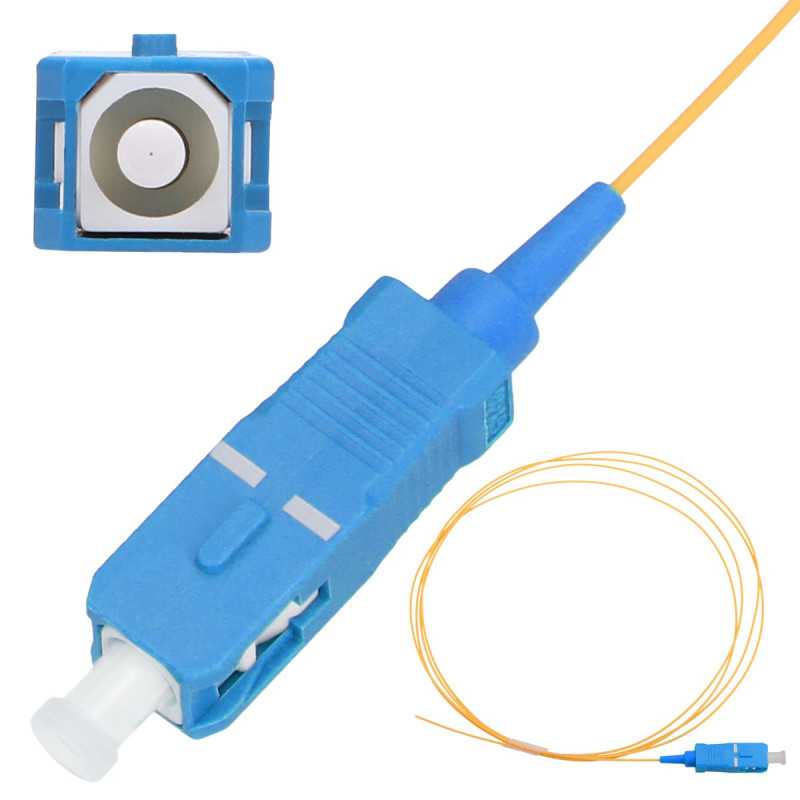

Extralink SC/UPC | Pigtail | PVC, Single mode, 900um G.652D 2m
EAN: 5903148910178
Reference: EX.10178
2.73 zł gross gross / meter 2,22 zł netto gross / piece
Warranty and service support
Available options and delivery cost
Same-day shipping
Payments methods
Pigtail SC/UPC SM 900UM G.652D 2M
Pigtail Extralink with SC/UPC connector is made on a single-mode G.652D fiber, which is dedicated for FTTx technology. This fiber is characterized by reduced bending radius, without increasing attenuation. This is a very important feature during the construction of FTTx networks due to the large number of changes of optical line direction and because of the small size of cabinets and distribution boxes. Pigtail is used mainly in client cable terminations in the customer's sockets and in end switchgear.
Test protocol included Yes
Connector material Ceramic
Fiber mode structure Single-mode
Cable length 2 m
Full duplex No
Plug and Play Yes
Operating temperature (T-T) -40 - 85 °C
Package type Bag
Cord diameter 0.9 mm
Return loss 60 decibel
Insertion loss 0.15 decibel
Sheath material Polyvinyl chloride (PVC)
Connector polish type UPC
Product colour Yellow
Connector 2 gender No
Connector 1 gender Male
Fibre optic type G.652D
Cable type FTTH
Information about responsible entities
Batna Sp. z o. o. Manufacturer
Country: PL
Street: 1 Maja 23
Postal Code: 42-202
City: Częstochowa
Mail: info@extralink24.com
