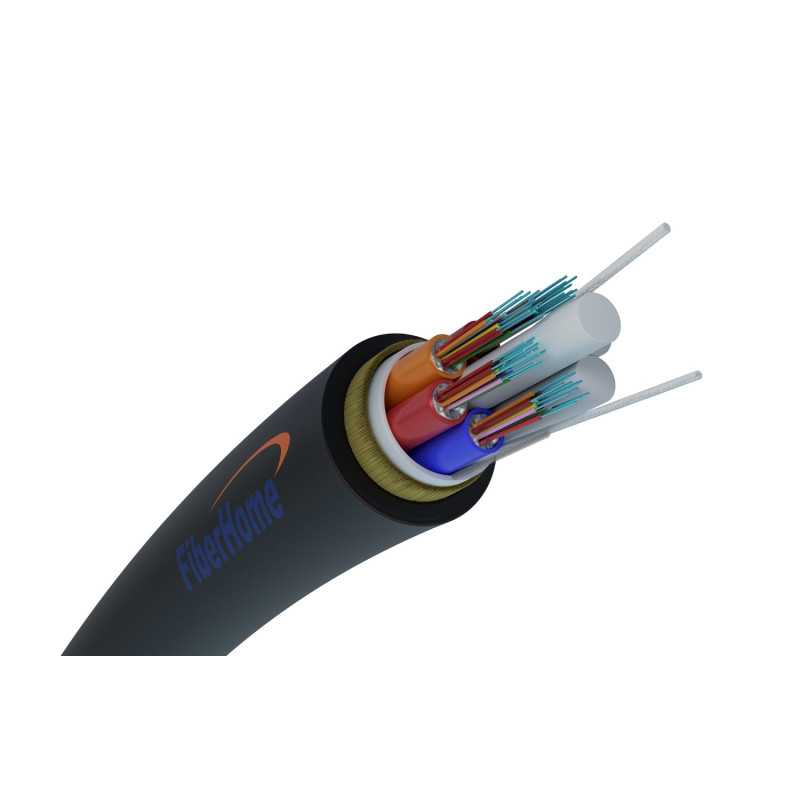

Fiberhome XOTKtsdD 48F | Fiber optic cable | ADSS, 2,7kN FRP, 4T12F, G652D, 10,2mm, aerial, 4km

Overhead fibre optic cable ADSS 48F 6T12F, G652D

Extralink SM Aerial Cable is an overhead fibre optic cable. It is constructed using 48 G.652D fibers placed in 4 loose tubes twisted around a centrally located FRP rod, which is a strengthening element. The cable is covered with HDPE coating.

Overhead fibre - high resistance to harsh outdoor conditions

Self-supporting optical fibre is characterized by resistance to severe weather conditions and temperature differences. Its construction is reinforced with FRP (fiber reinforced plastic) rod. The outer sheath made of polyethylene is resistant to solar radiation.

Cable structure

• Rugged fiber-reinforced plastic (FRP) central element
• Fibre optics ITU-T G.652D
• Loose tubes filled with gel
• Low-density polyethylene filling element
• Fixing winding of synthetic yarn and strip
• Rugged circumferential element - fiberglass yarn
• Outer jacket - black medium density polyethylene

Features

• Fibre G.652D
• 4 loose tubes + 2 fillers
• HDPE outer coating
• FRP Reinforcement Bar
• Tensile strength 2,4 kN
• Diameter 10.2 mm
