Fiberhome XOTKtsdD 72F | Fiber optic cable | ADSS, 2,7kN, 72J, G652D, 10,2mm, aerial

Overhead fiber optic cable ADSS 72F

Extralink SM Aerial Cable is an overhead fiber optic cable. It is constructed with 72 G.652D fibers placed in 6 loose tubes twisted around a central FRP rod, which is a reinforcing element. Cable is covered with HDPE sheath.

Key features

• G.652D fibre
• 6 loose tubes
• Outer sheath HDPE
• FRP reinforcing rod
• Tensile strength 2,7 kN
• Diameter 10.2 mm
• For overhead installations

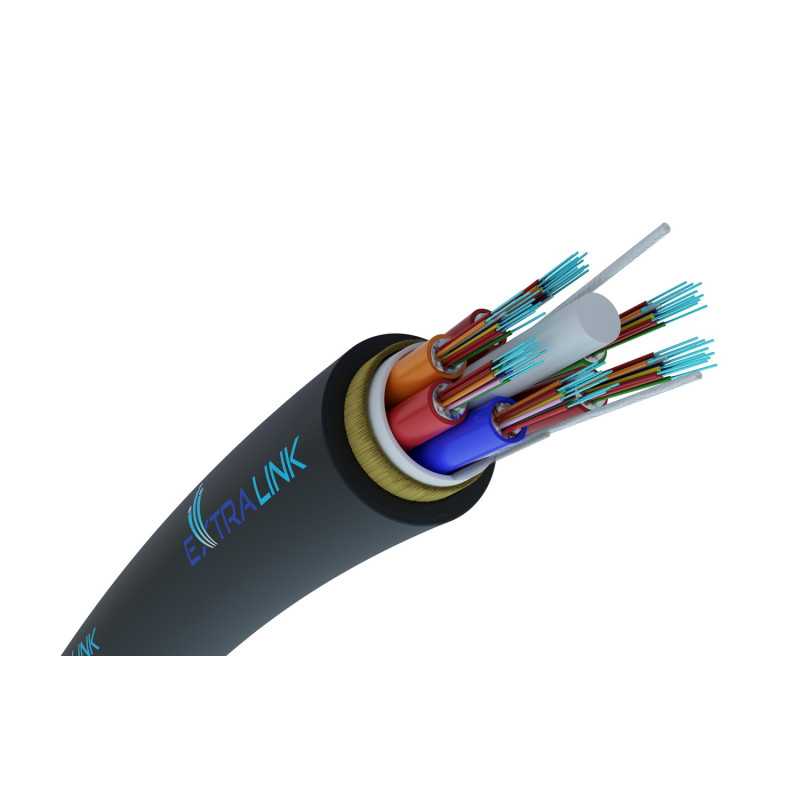

Cable structure

• Robust FRP centre piece
• Optical fibres ITU-T G.652D
• Loose tubes filled with gel
• Filler element made of low-density polyethylene
• Fastening winding made of synthetic yarn and bands
• Durable peripheral element - glass fibre yarn
• Outer jacket - black medium density polyethylene

Overhead fiber optic cable - high resistance to harsh environmental conditions

Self-supporting optical fiber is characterized by resistance to severe weather conditions and temperature differences. Its construction is reinforced by fiber reinforced plastic (FRP). Outer sheath made of polyethylene is resistant to solar radiation.
