Fiberhome Z-XOTKtsDb 24F | Fiber optic cable | Single mode, 2T12F G652D, 9,2mm, 1.5kN, duct

FiberHome 24J Singlemode Optical Conduit Cable - G.652D Fiber, 1500N

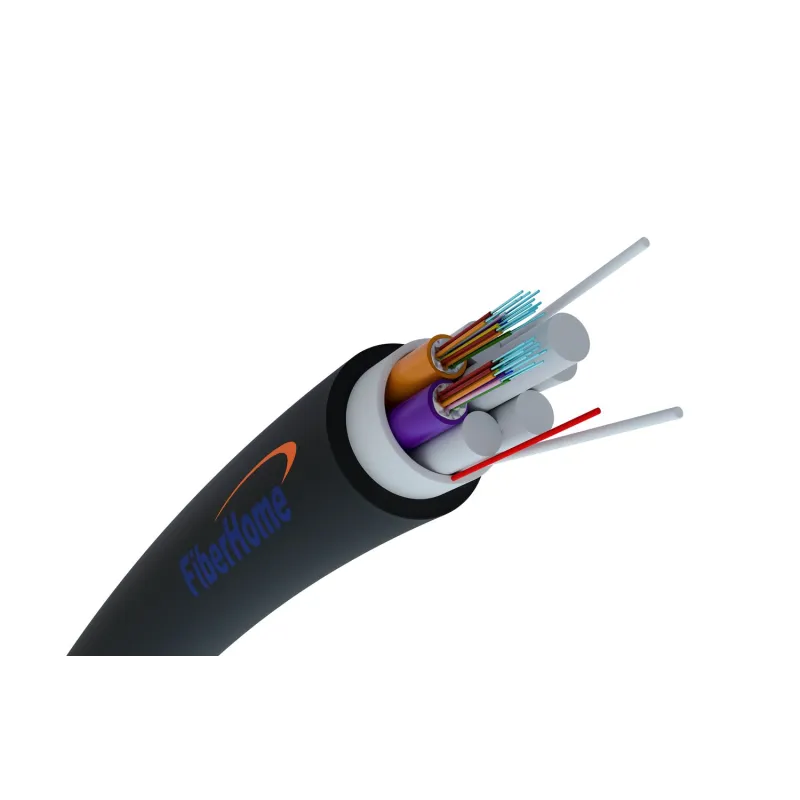

Fiberhome Duct Optical Cable is a fiber optic cable designed for duct applications. Its construction consists of 24 G.652D fibers placed in two loose tubes and 4 fillers twisted around a centrally located FRP rod as a reinforcement element. Cable is covered with HDPE sheath.

Key features

• Fiber type - single-mode G.652D
• Number of fibers - 24 fibers
• 2 loose tubes + 4 fillers
• Outer shell - HDPE (high density polyethylene)
• FRP (fiber reinforced plastic) reinforcing bar
• Pulling force - 1500 N
• Cable diameter - 9.2 mm
• Application - to the sewerage system
