Teltonika PR2VM20M – 2 m SMA antenna extension cable

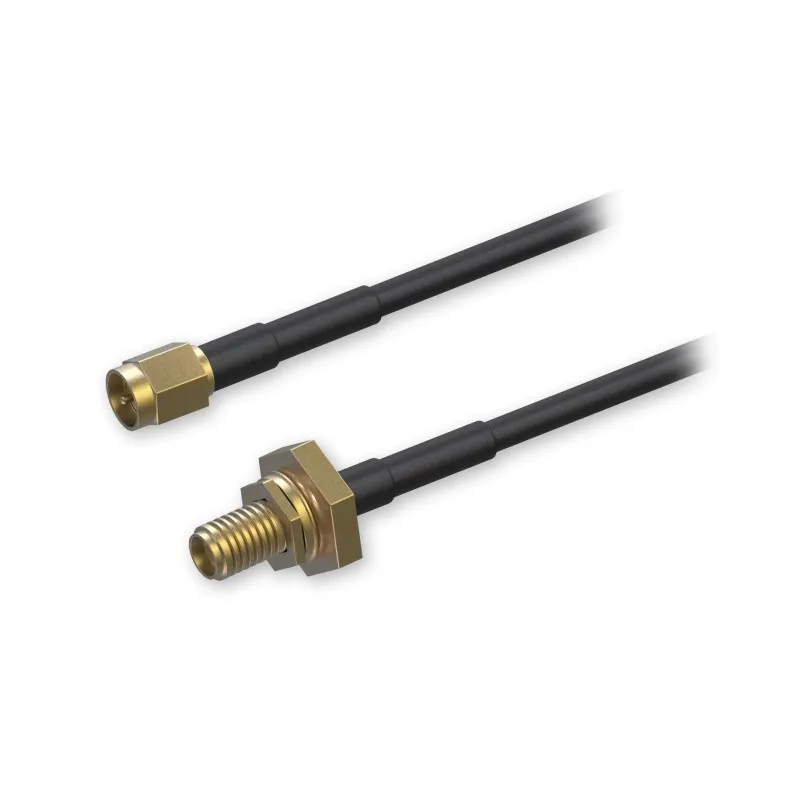

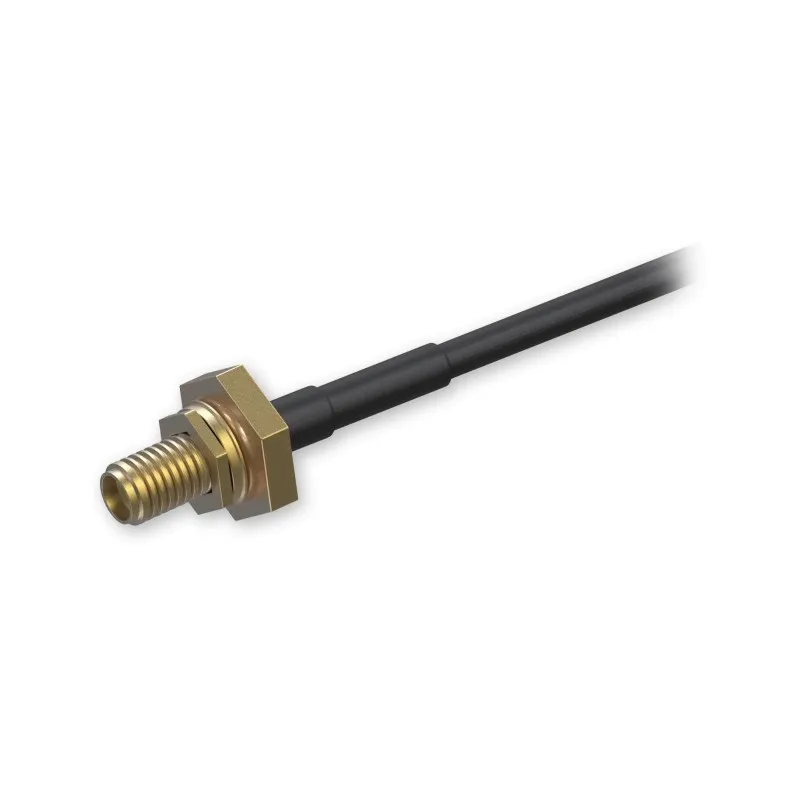

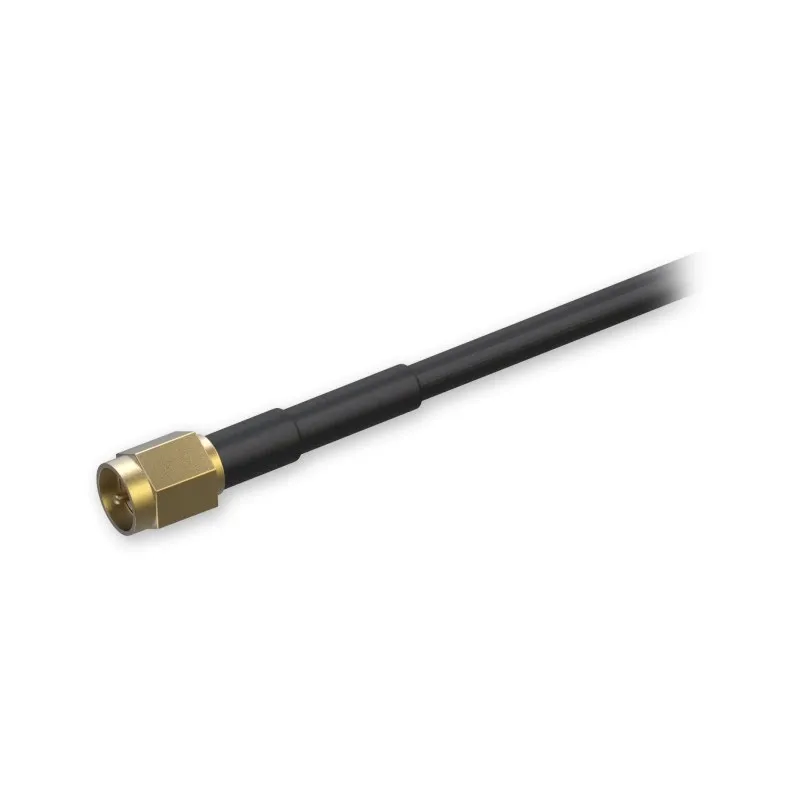

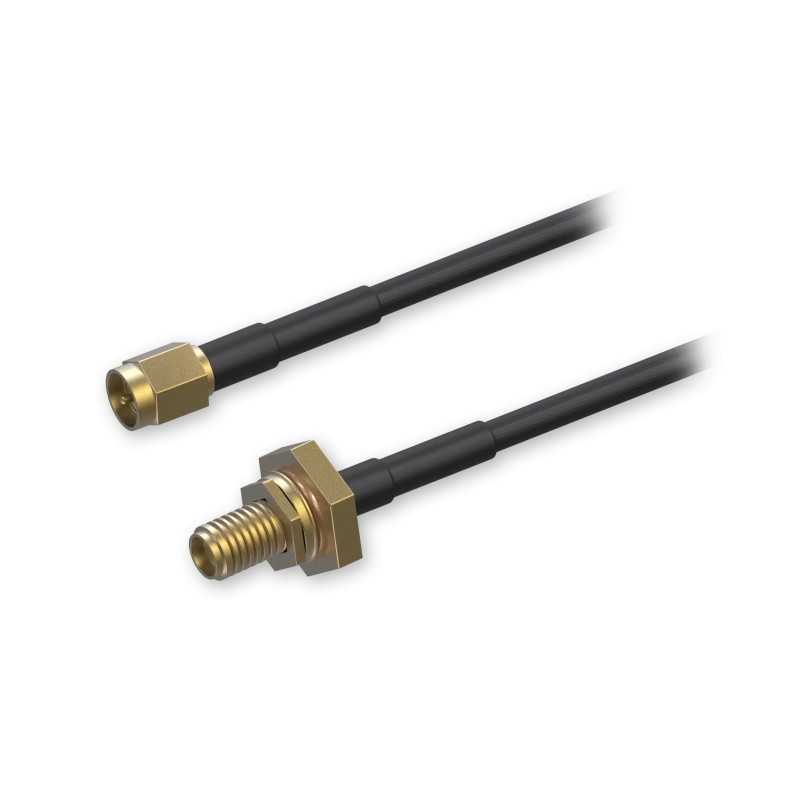

Teltonika PR2VM20M is an extension cable designed for antenna connections using SMA connectors. The cable is 2000 mm long and is terminated with a female SMA connector on one end and a male SMA connector on the other. This configuration makes it possible to extend an existing antenna connection and position the antenna more conveniently in relation to the connected device.

Frequency range from 0 to 6000 MHz

The cable operates in a frequency range from 0 to 6000 MHz and has an impedance of 50 Ω. The manufacturer specifies a maximum VSWR of 1.35 and cable attenuation of 3.5 dB at 2700 MHz. These parameters make it suitable for use in antenna installations based on compatible SMA connectors and the appropriate frequency range.

Operating parameters of the PR2VM20M cable

The PR2VM20M model can operate at temperatures from -55°C to +155°C. The maximum operating voltage is 335 V, while the withstand voltage is specified at 1000 Vrms. The manufacturer states a durability of at least 500 mating cycles and a cable weight of 50 g.
