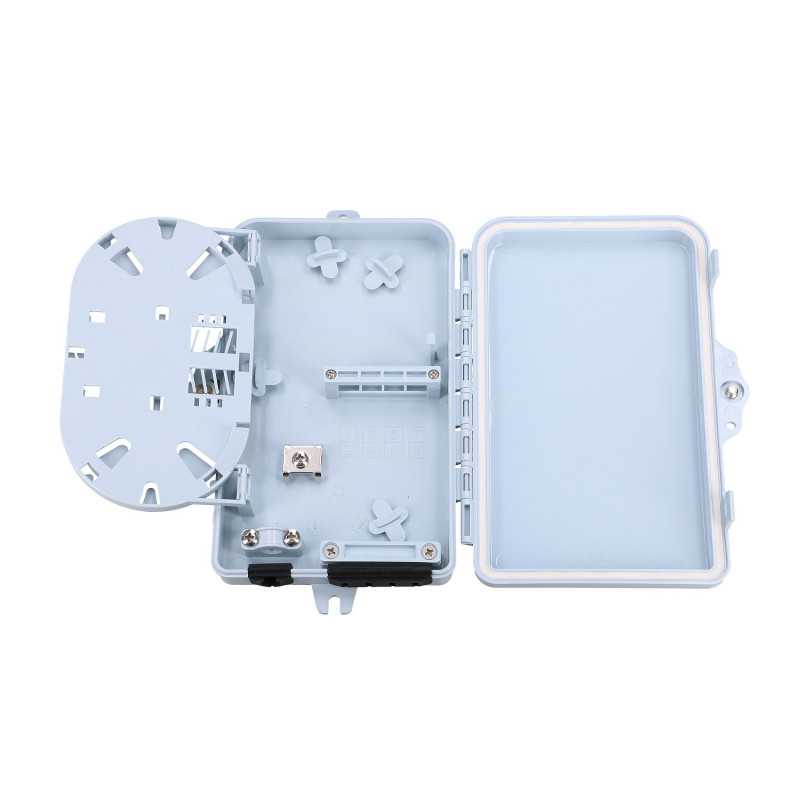

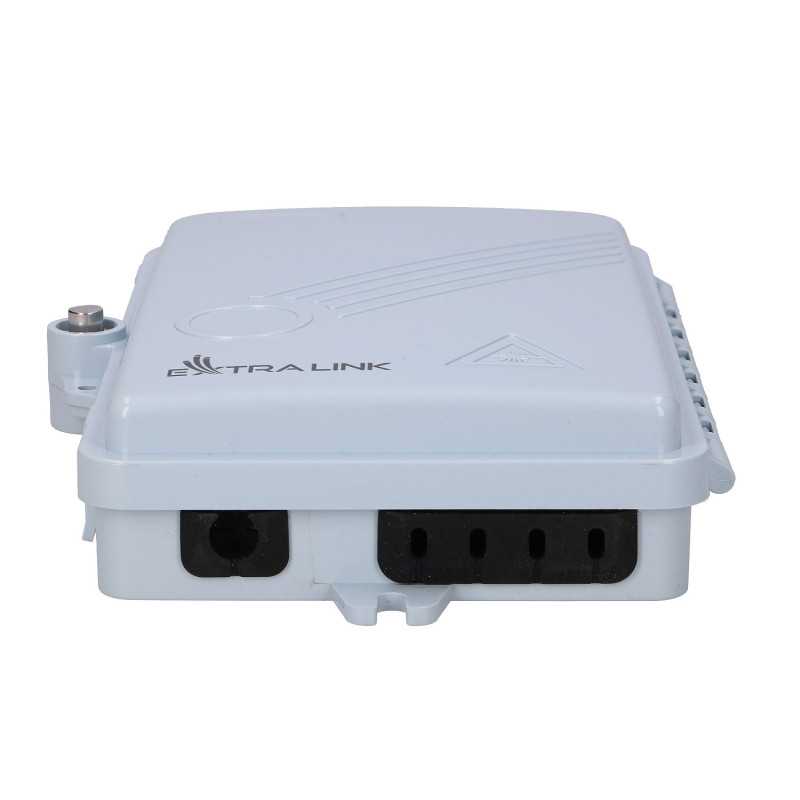

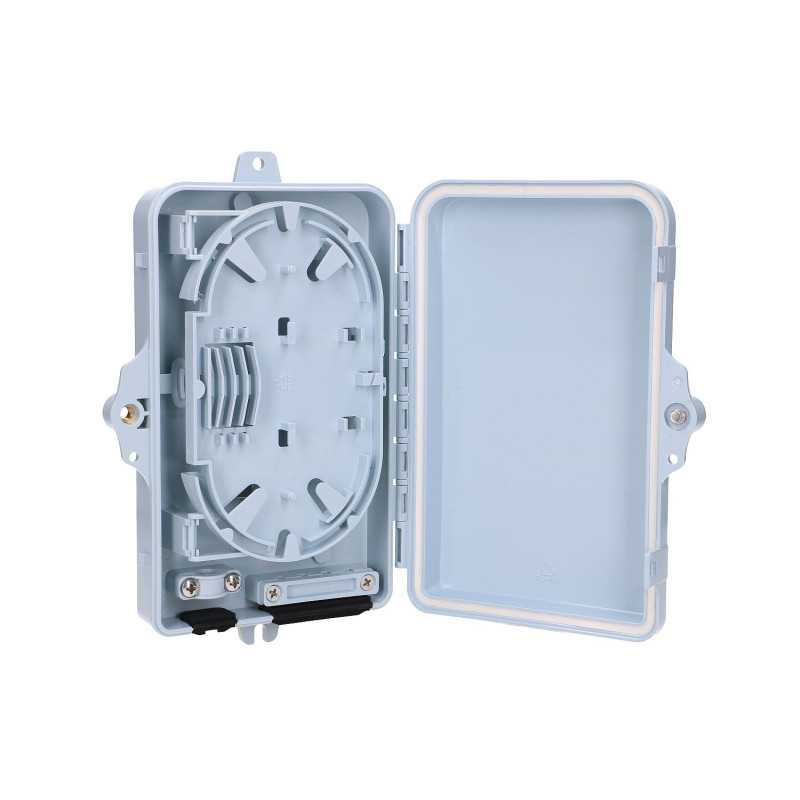

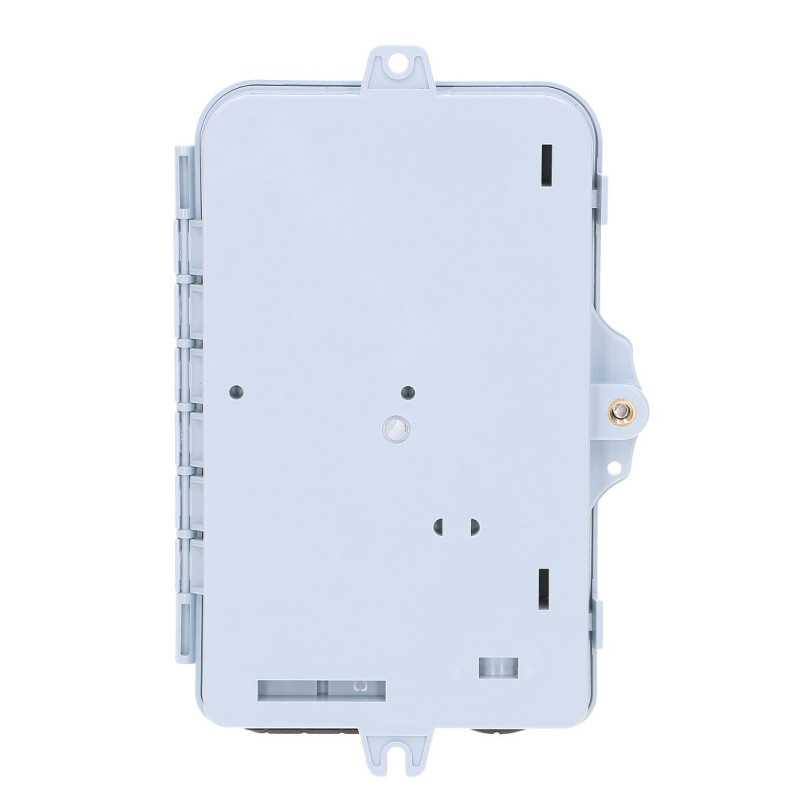

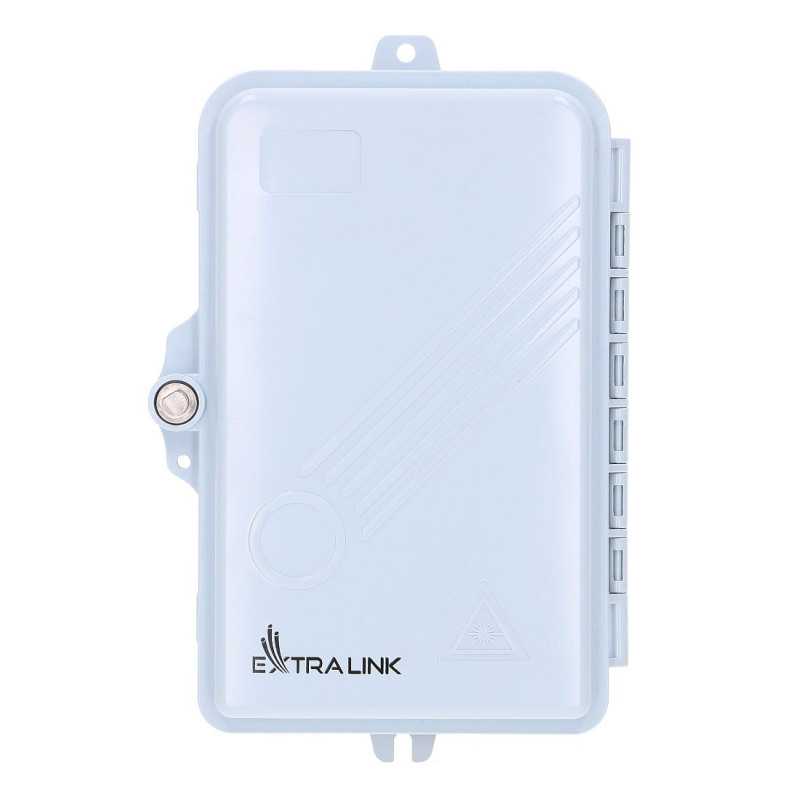

Extralink Betty | Fiber optic distribution box | 4 core

EXTRALINK BETTY 4 CORE - fiber optic box

EXTRALINK BETTY 4 CORE serves as an end point of the power cable that connects to the drop cable in the FTTx communication network system. The fiber optic box can be used for fiber linking, splitting and distribution. It also provides solid protection and gives the possibility to manage the FTTx network building.

Features:

• Fully enclosed structure
• Material: PC+ABS, waterproof, dustproof, ageing resistant, IP65
• Power cable mounting and drop cable. Fibre bonding, fastening, storage and distribution in one
• Cables, pigtails, crossover cables run on their own path
• Installation of the SC-type adapter
• Easy maintenance
• The control panel can be inverted and the power cable is articulated

Technical data on lightning resistance

The earthing device is insulated together with the housing. The insulation resistance is not less than 2 104 M/500 V (DC); IR2 104 M/500 V. The static voltage between the earthing device and the housing is not less than 3000 V(DC)/min, without any puncture: U3000 V.
