Mantar SRS-30/53/13 | Fiber optic cabinet | FTTH 60J, depth 130 mm

Mantar fibre optic cabinet SRS-30/53/13 - FTTH 60J

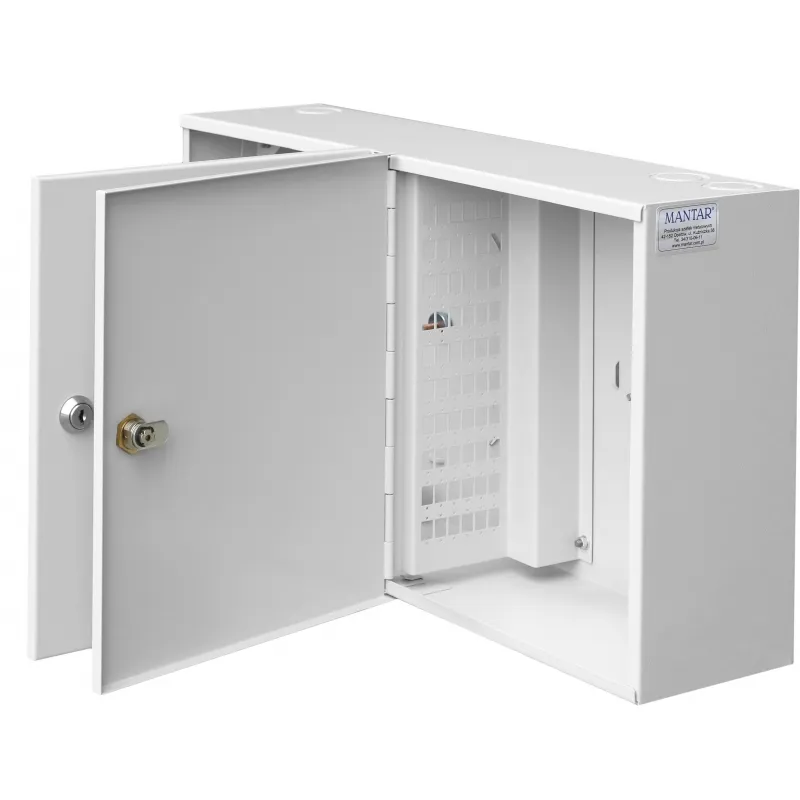

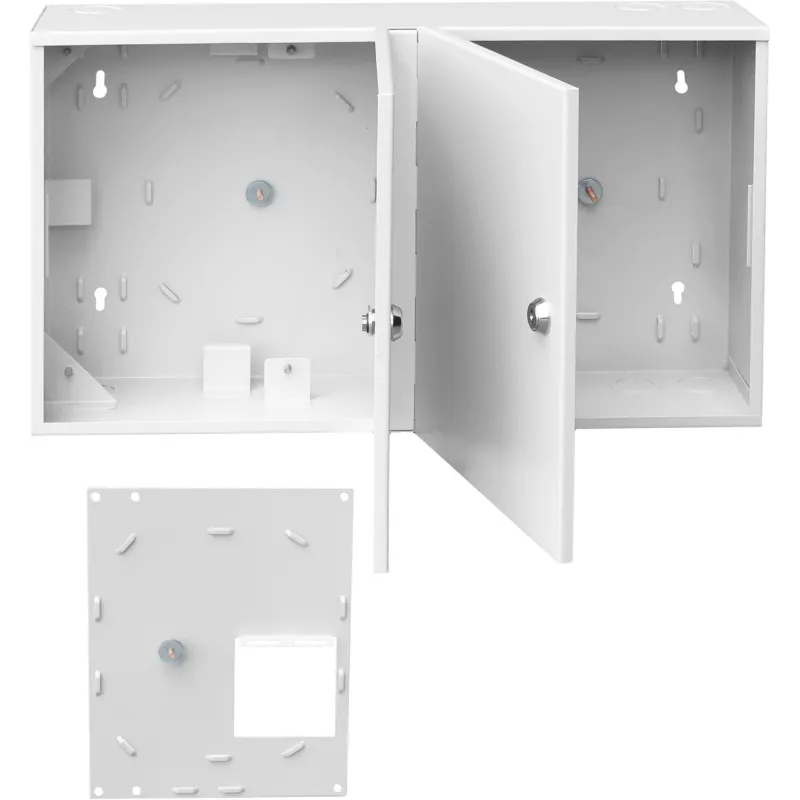

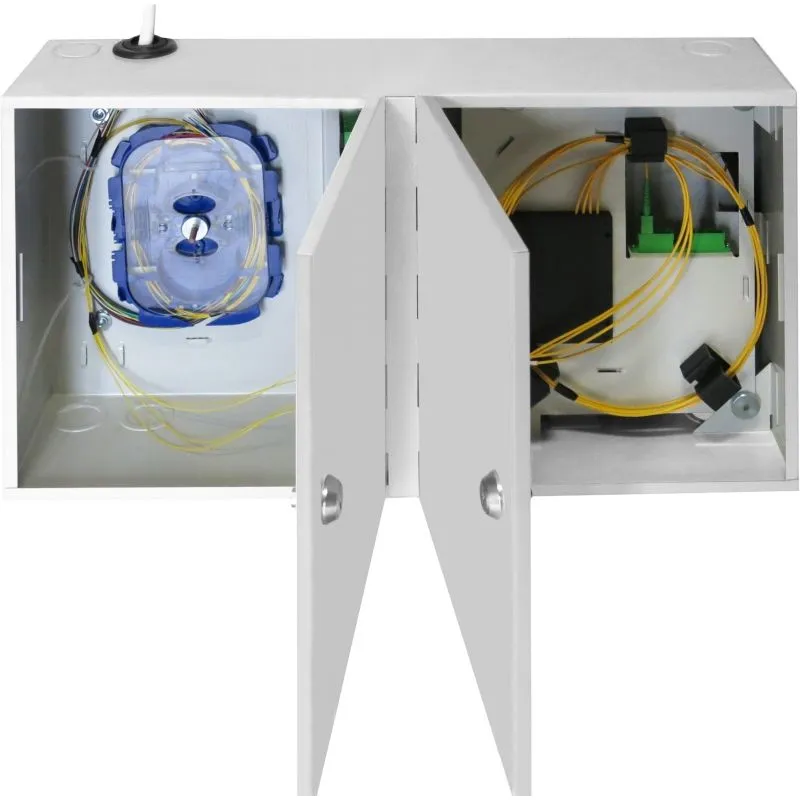

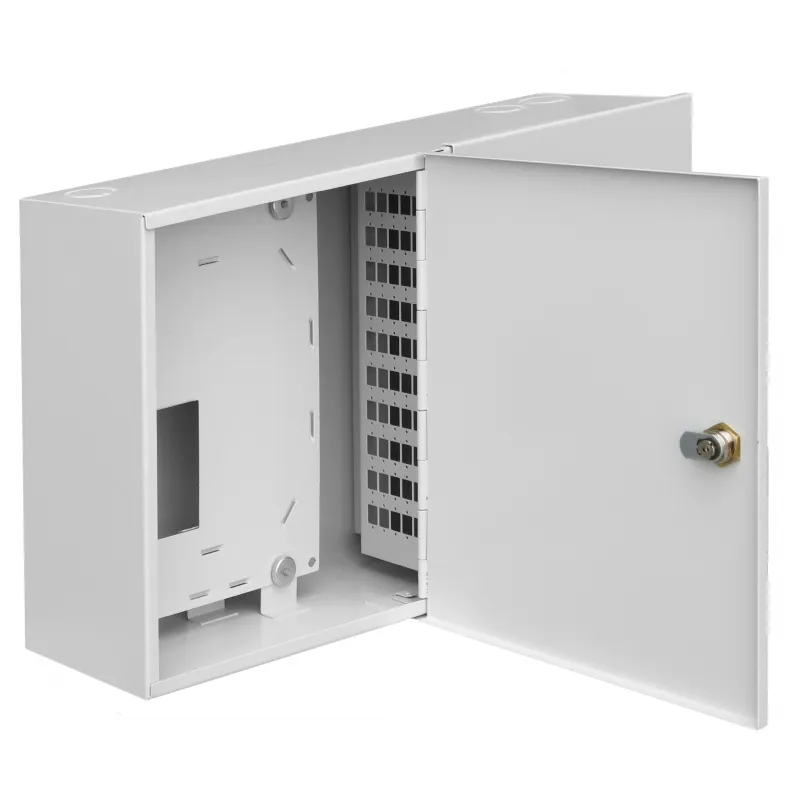

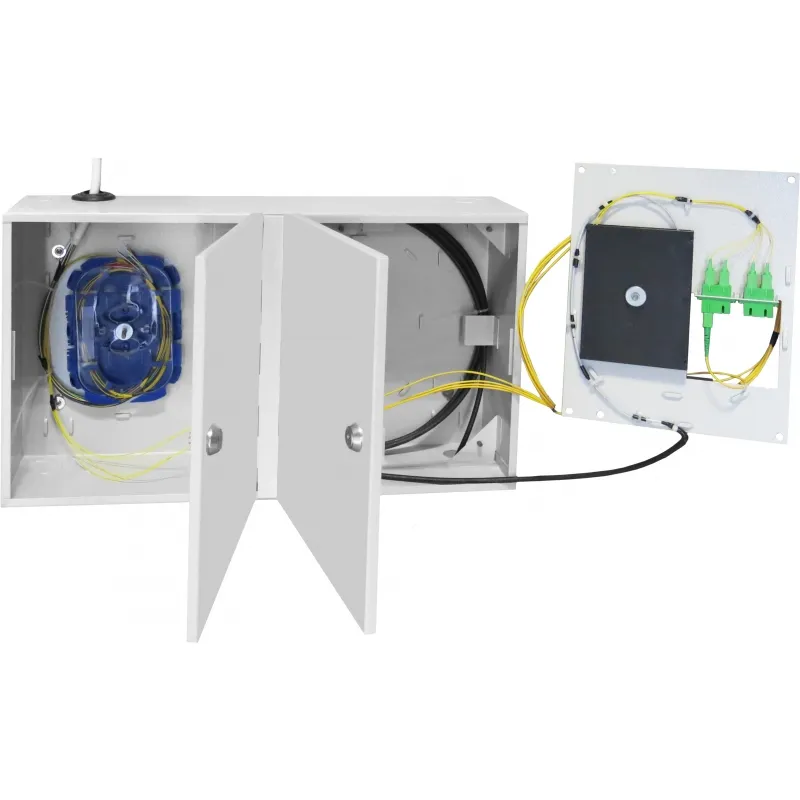

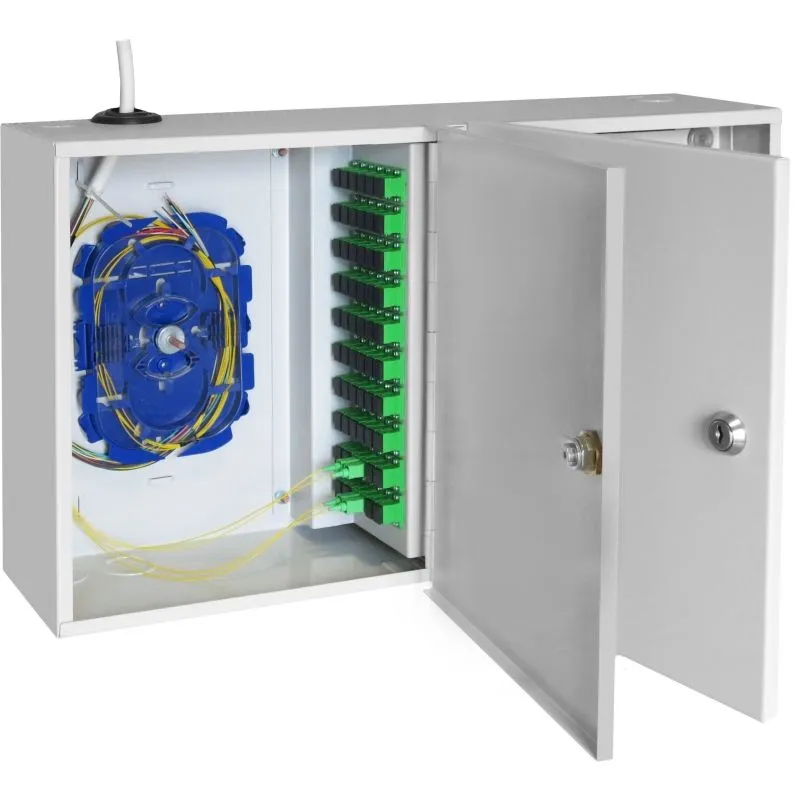

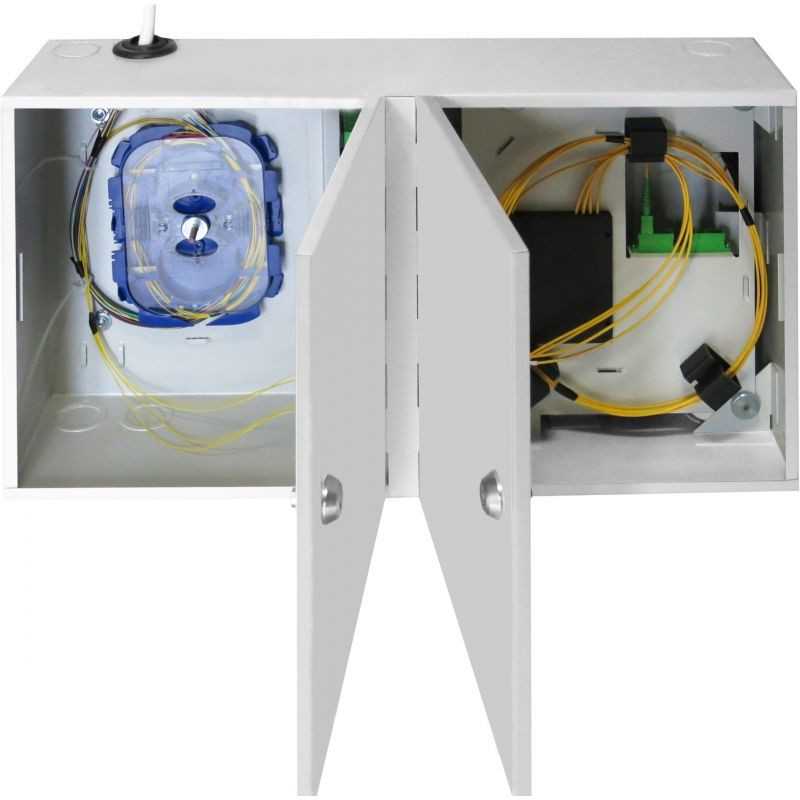

Mantar, fiber optic cabinet SRS-30/53/13 - FTTH 60J, designed for wall mounting and FTTH network construction, made of 1 mm thick steel sheet, light grey colour. It enables termination of cables coming to the building from the telecommunication control panel, vertical cables as well as installation of optical splitters. The cabinet constitutes a mechanical shield for passive elements of optical fibre networks. It has 60 holes for SC Duplex fiber optic adapters, 2 holes ø21 each, and one blind hole ø38/50 each on the top and bottom of the cabinet. The cabinet can be additionally equipped with weld trays, pigtails, adapters.

Features:

• Wall-mounting
• Organising handles for easy laying of the cable stock
• The subscriber's part is completely separated from the client
• Expanded client part with the possibility of welding on the installed tray

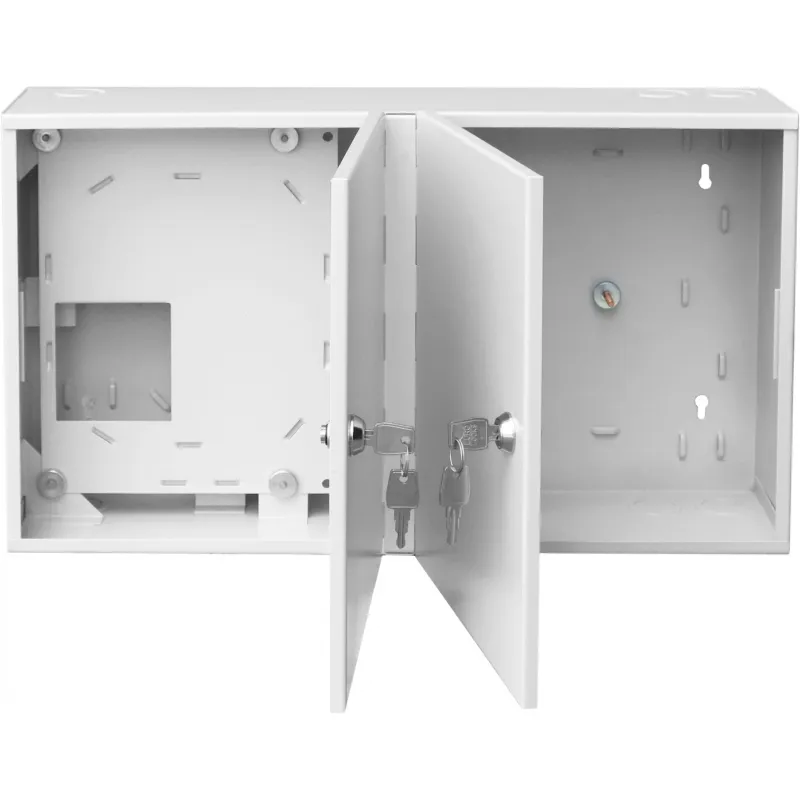

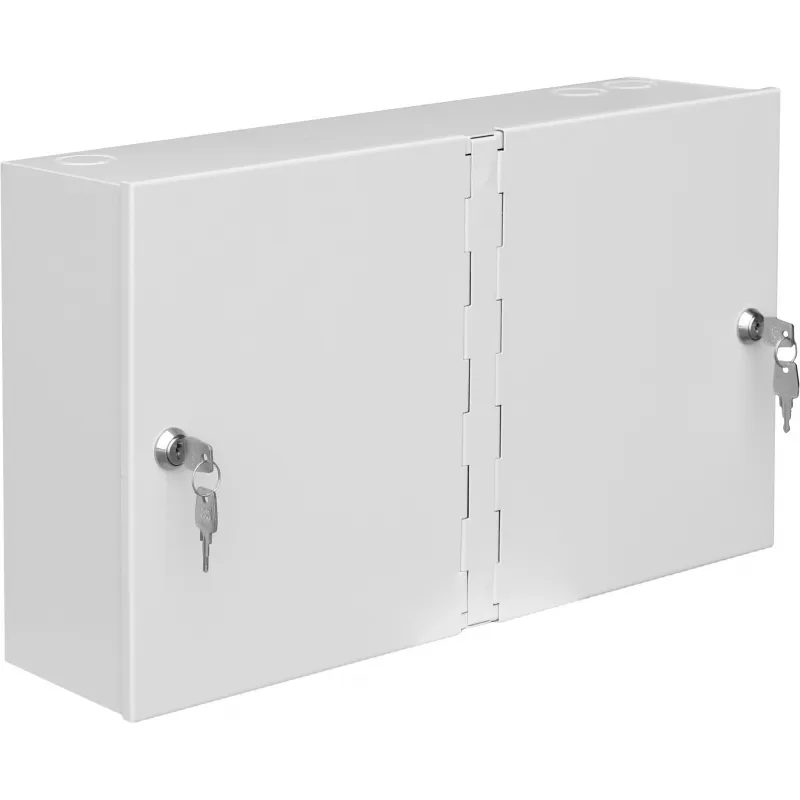

• Locking: 2 cylinder locks with two different or one key code
• Material: 1 mm sheet metal
• Colour: RAL7035 light grey, thick structure, powder coated
