Mantar SZK-36U 19'' 203/61/61 | Modular cabinet | for mounting on the drain SK-1, depth 610 mm

Mantar modular cabinet SZK-36U 19'' 203/61/61

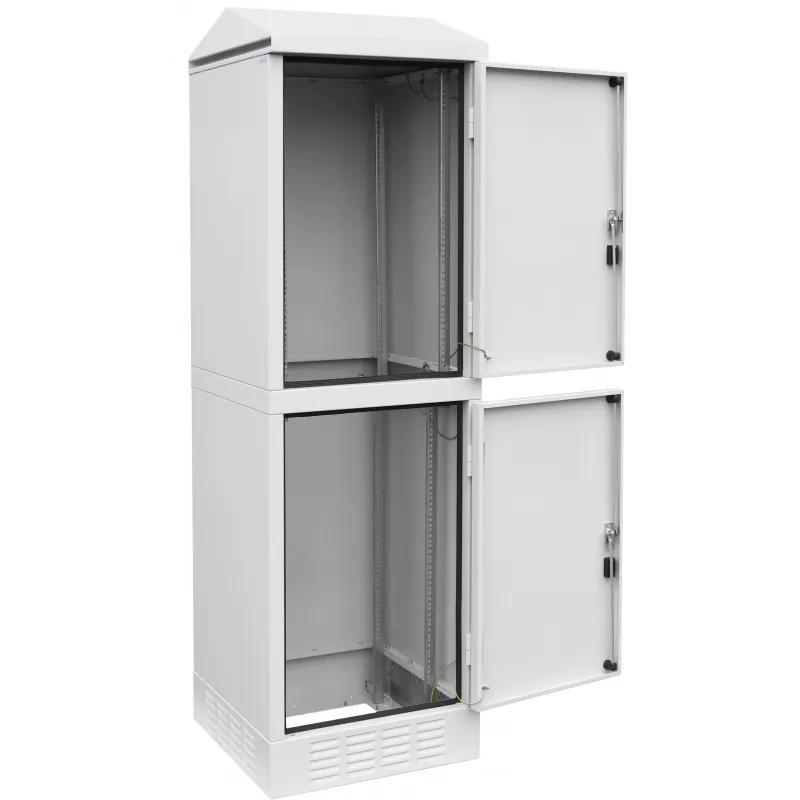

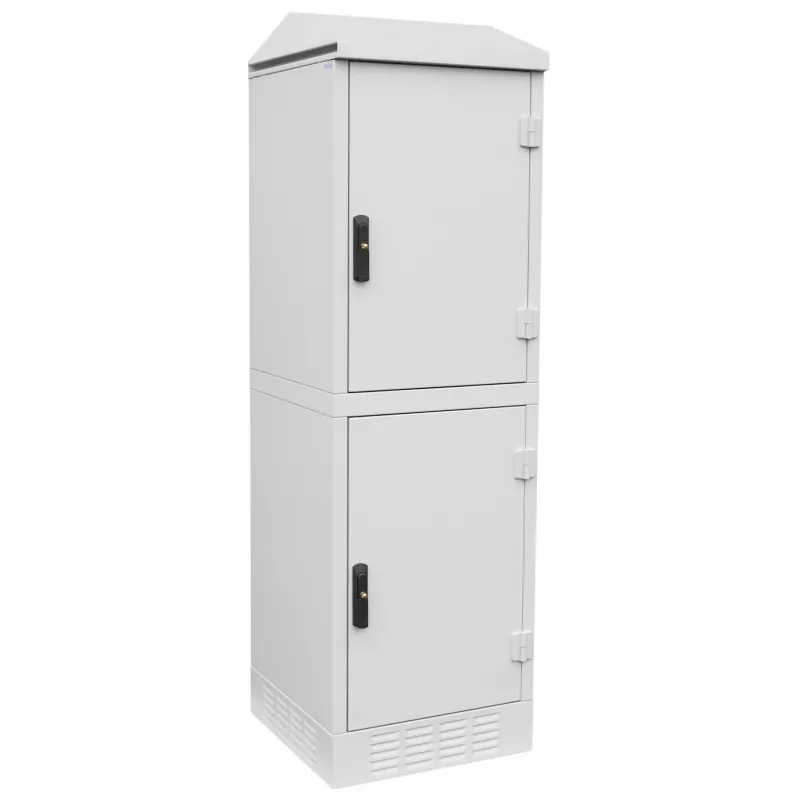

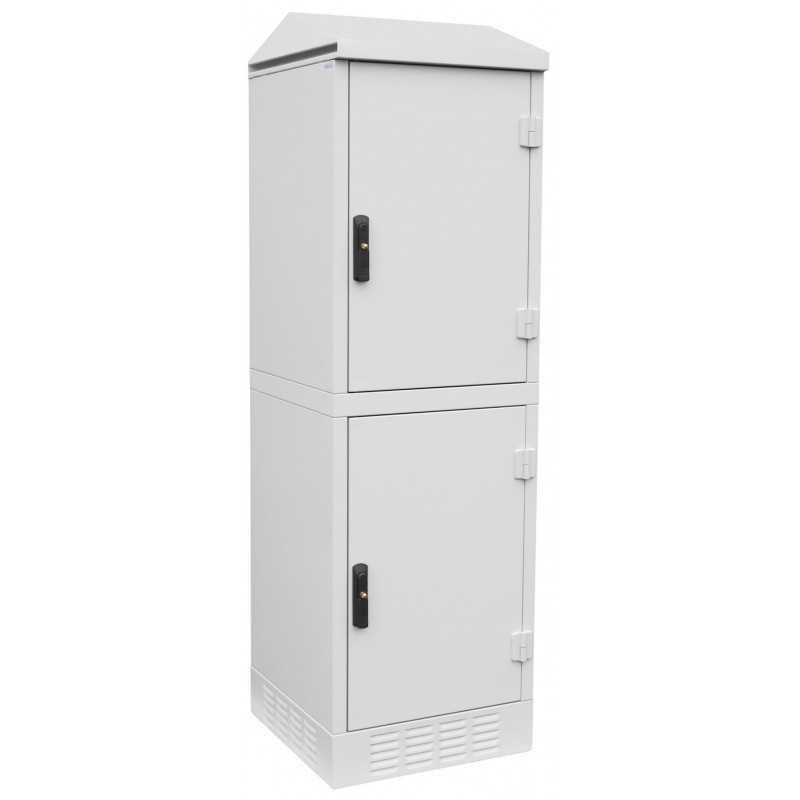

Mantar modular cabinet SZK-36U 19'' 203/61/61. This cabinet is designed for mounting on the SK-1 channel sump. It is a mechanical shield for telecommunication equipment. It is made of metal sheet with Magnelis® coating 1.5 mm thick, light grey colour.

Features:

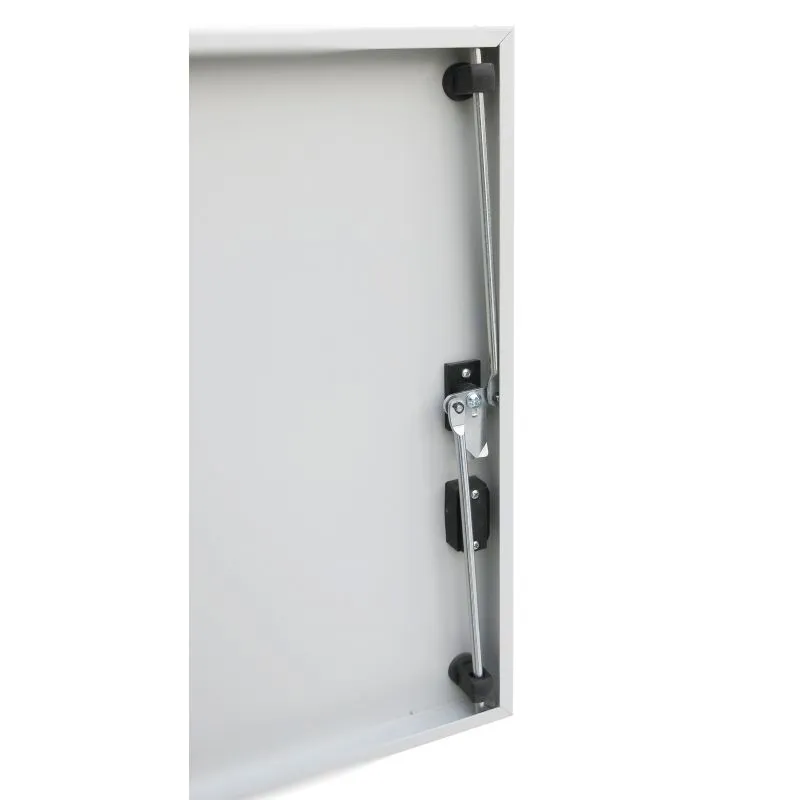

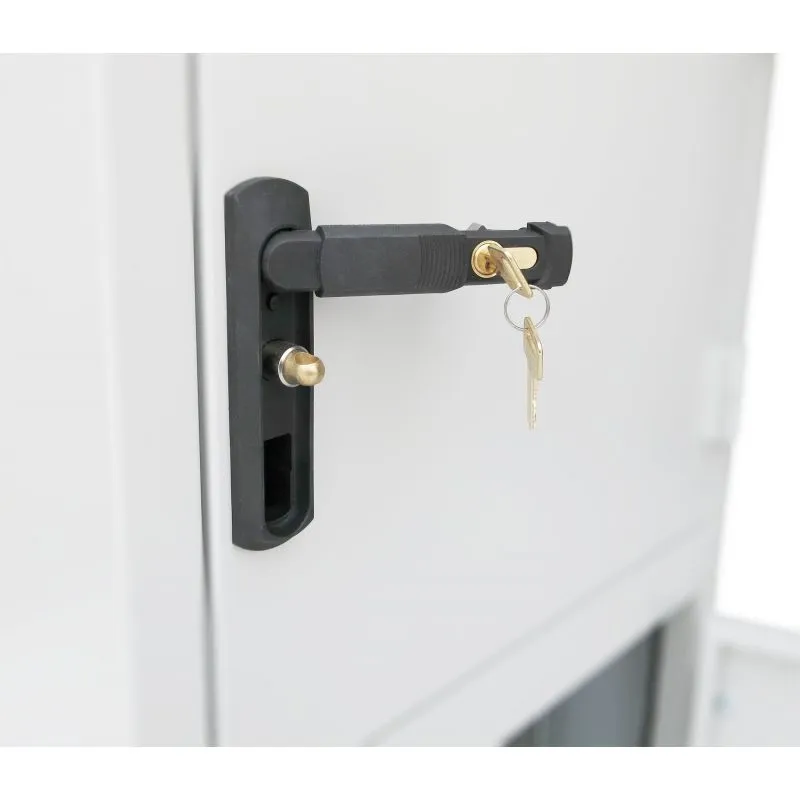

• 3-point locking with padlock bolt, swivel handle, lock cylinder insert

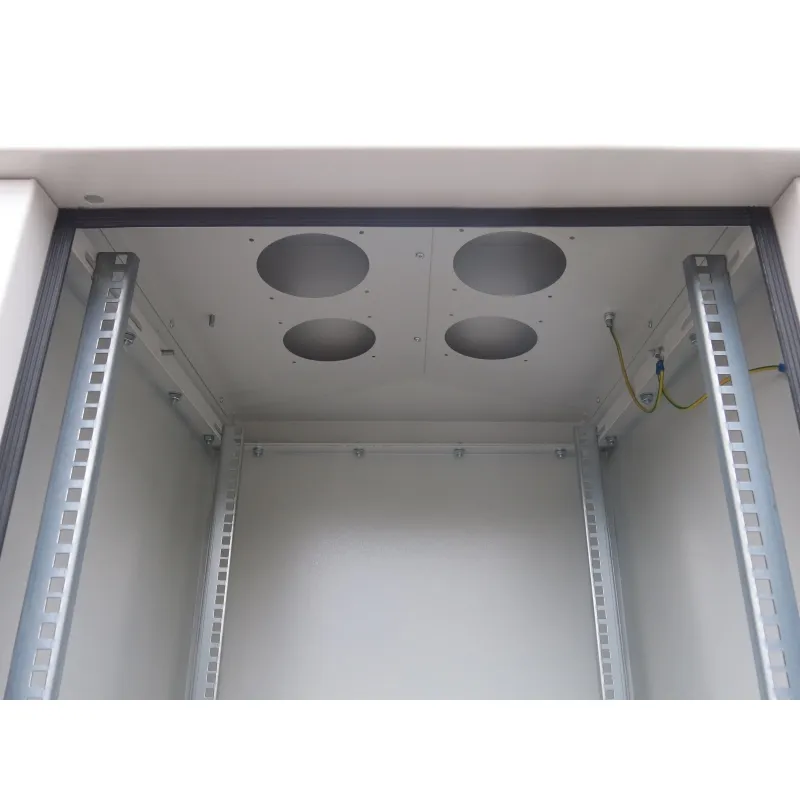

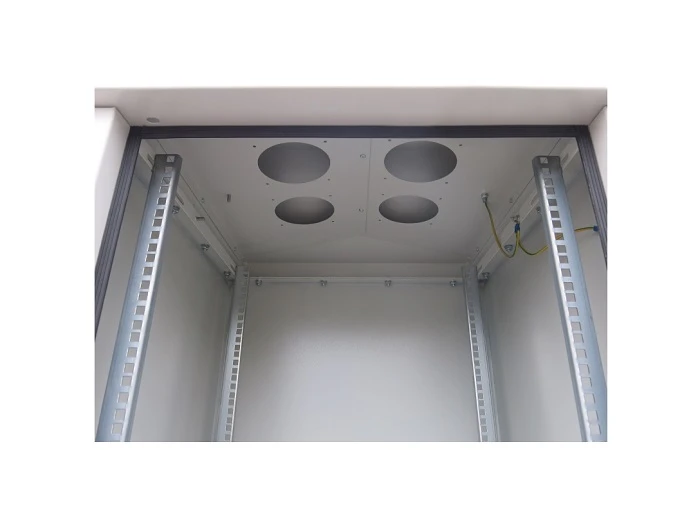

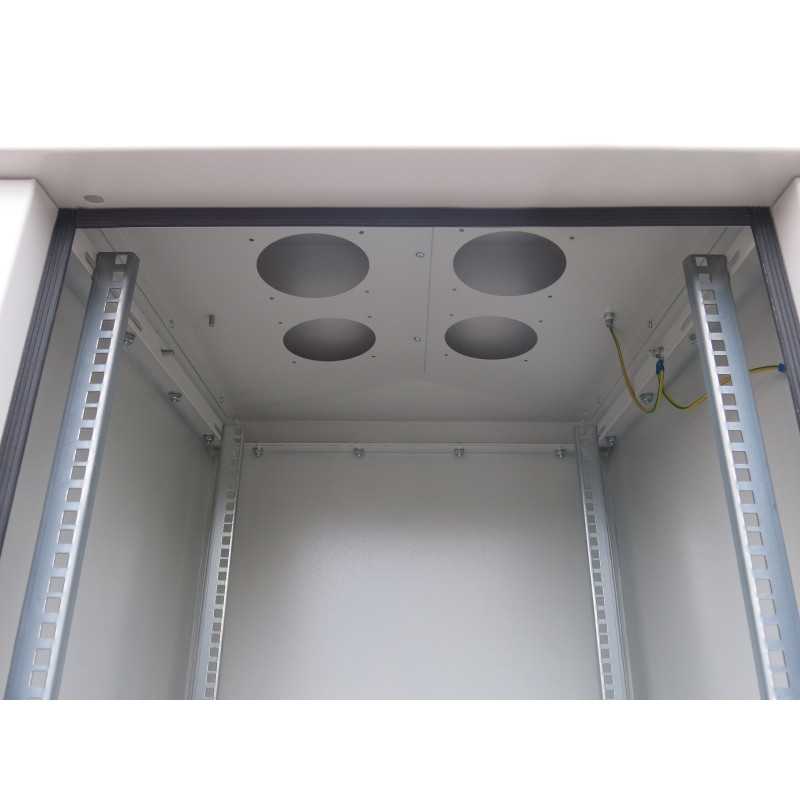

• 2 pairs of 19" racks - adjustable distance between the front and rear pairs from 260 mm to 430 mm
• Made of 1.5 mm thick Magnelis®-coated sheet metal
• Degree of protection IP53, mechanical resistance IK10
• Colour: RAL7035 - light grey, powder-coated, thick structure
• Plinth made of 2 mm thick sheet metal with Magnelis coating with a height of 150 mm, made ventilation holes
• Adapted for installation on a sewer sump SK- 1

Additional equipment:

• 3U voltage distribution panel
• Shelf 19" 2U
• PS 19" 1U SC Simplex / Duplex
• PS 19" 2U SC Duplex
• Floor plate with cable holes
• Heating kit with thermostat
• Cabinet ventilation kit with thermostat
