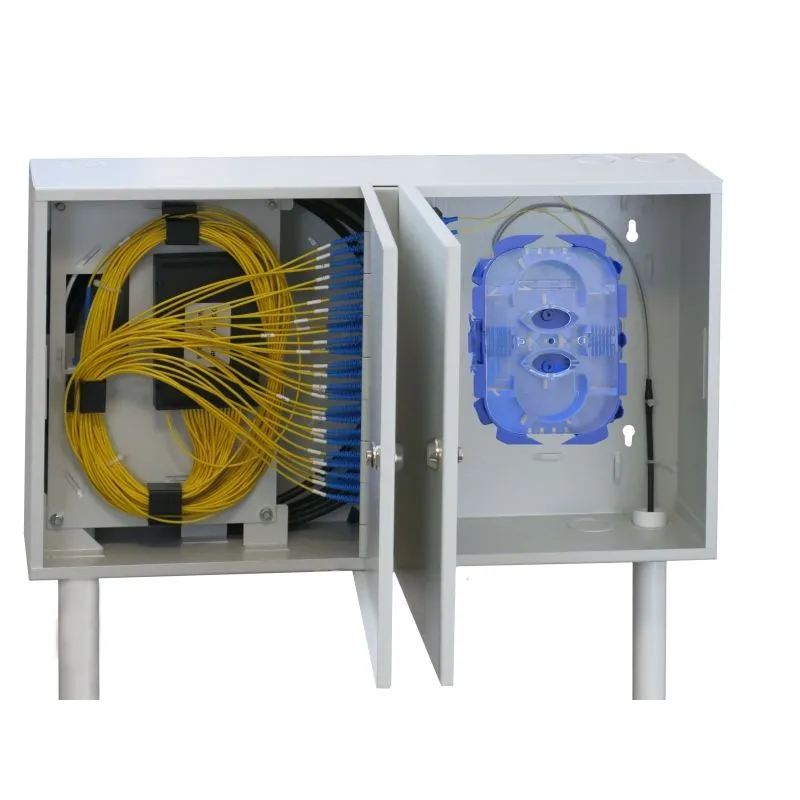

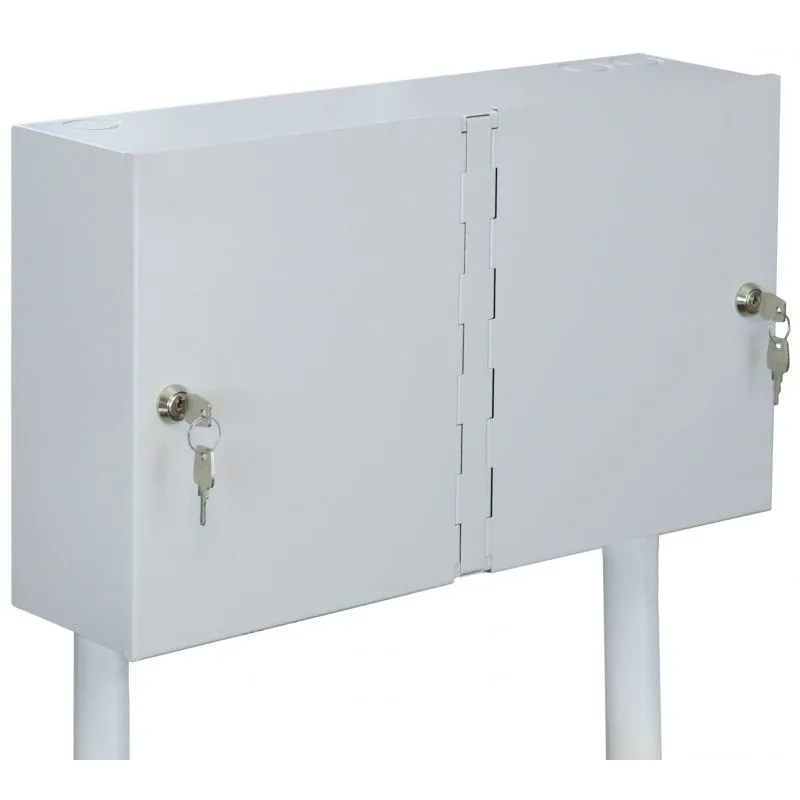

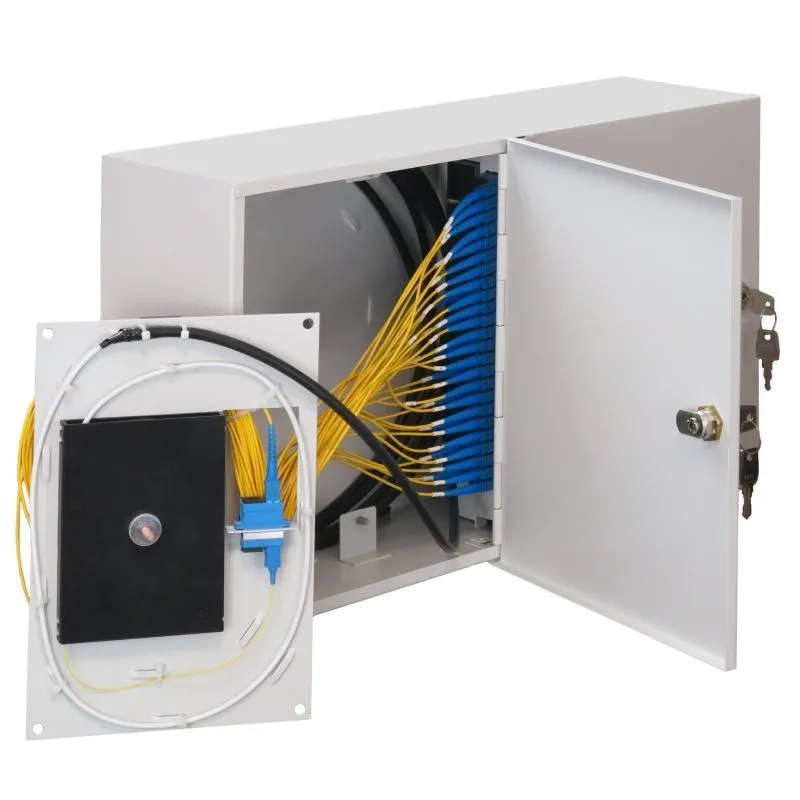

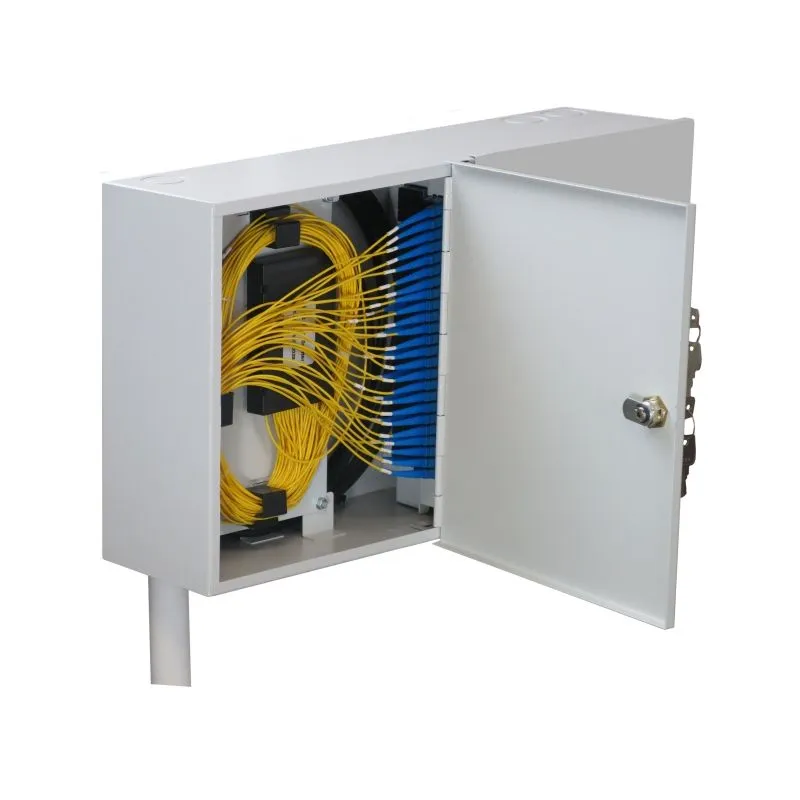

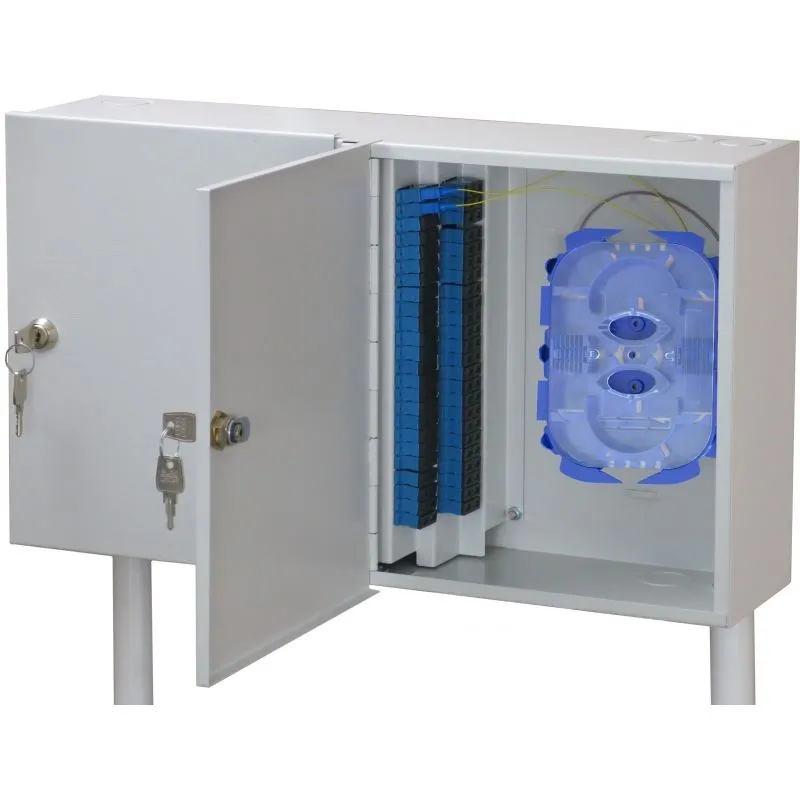

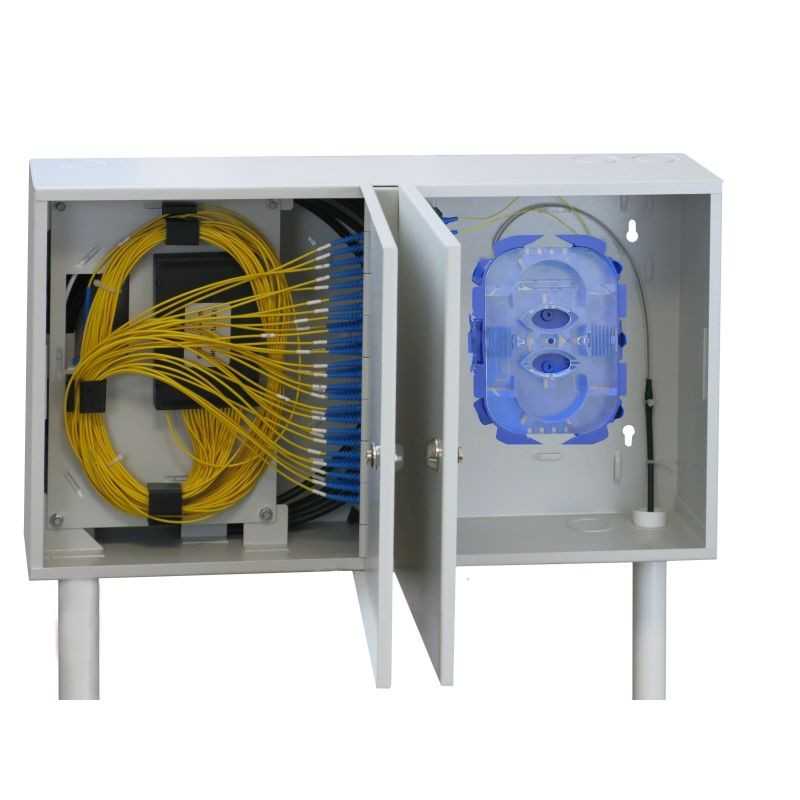

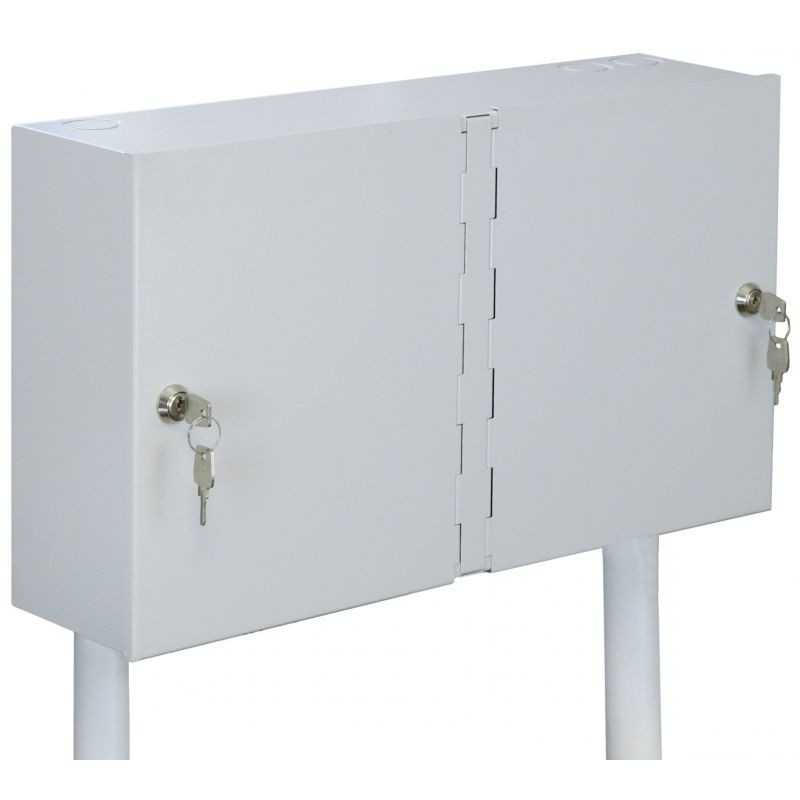

Mantar SRS-30/53/13 | Fiber optic cabinet | FTTH 96J, depth 130 mm

Mantar fibre optic cabinet SRS-30/53/13 - FTTH 96J

Mantar, fiber optic cabinet SRS-30/53/13 - FTTH 96J designed for building FTTH networks and for wall mounting, made of 1 mm thick steel sheet, light grey colour. It is a mechanical shield for passive elements of fiber optic networks and enables termination of cables coming to the building from the telecommunication control panel, vertical cables and installation of optical splitters. The cabinet has 2 holes ø21 each, and one blind hole ø38/50 each in the upper and lower part of the cabinet.

Features:

• Wall-mounting
• It has 48 holes as standard for SC Duplex fiber optic adapters
• Organising handles for easy laying of the cable stock
• The subscriber's part is completely separated from the client
• Expanded client part with the possibility of welding on the installed tray
• Locking: 2 cylinder locks with two different or one key code
• Material: 1 mm sheet metal
• Colour: RAL7035 light grey, thick structure, powder coated

Additional equipment:

• weld trays
• adaptors
• pigtails
