On/Off/PWM Control Board Tinycontrol, Overlay for LAN Controller V2

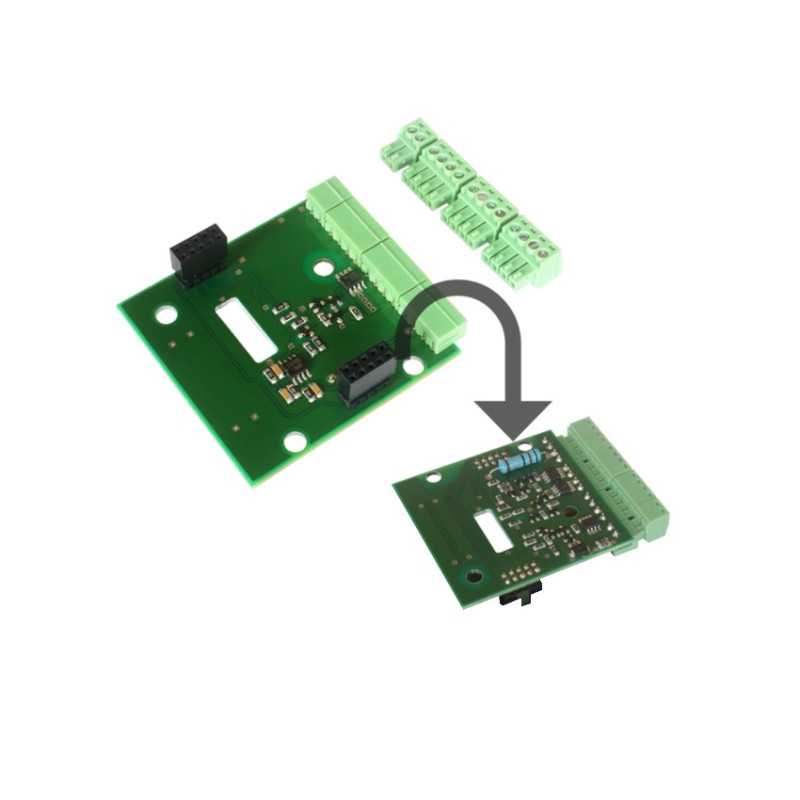

Tinycontrol board ON/OFF/PWM control board

The board prepared for IAN controller version 2, its dimensions have been adjusted to the IAN controller housing. The board has 4 high power MOSFET transistors, which can be used to power devices with 1-3A current consumption. In the controller's LAN panel (OUT1-4 outputs) we can switch on or off loads supplied from the power input. Similarly, you can control the percentage PWM filling and thus control the power (e.g. LED strips). The PWM control on the OUT1 output can be done via www, while the others only via the http request command given in the manual.
