TINYCONTROL TB2 Extension Board, 1-WIRE, I2C, for LAN Controller V3.5

Tinycontrol tB2 - expansion board with 1-Wire, I2C, OLED

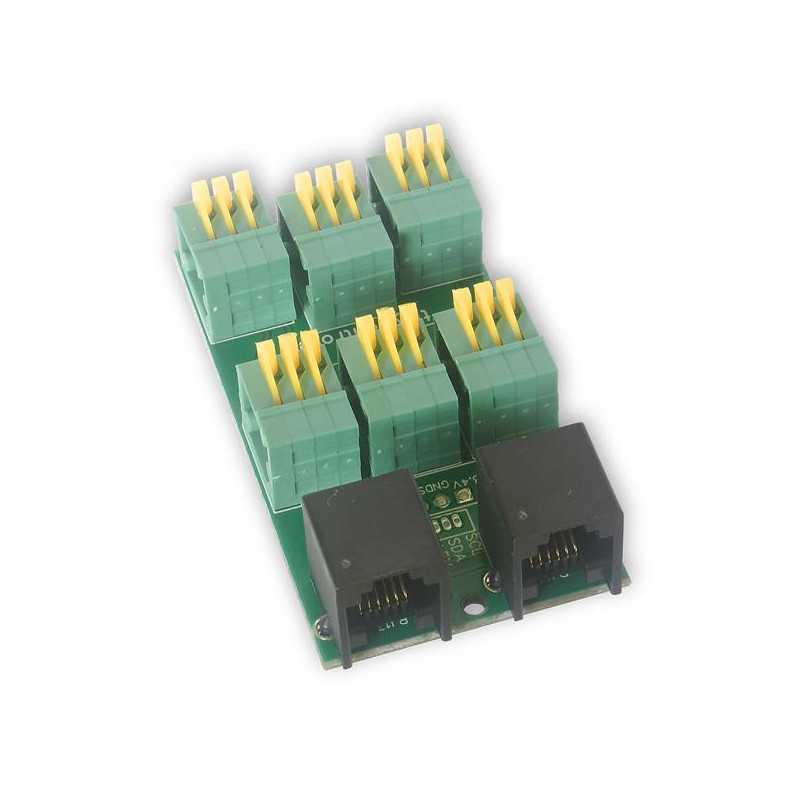

Tinycontrol tB2 has spring-loaded connectors for convenient connection of DS18B20 sensors and JST micro connector for I2C bus. Communication with Lan Controller takes place via I2C or 1-Wire bus. To do this, the board should be connected to the INP6 connector in the Lan Controller using a 6-core cable with an RJ12 plug (supplied) using one of the sockets, the other socket can be used to connect another 1-Wire or I2C sensor. On the board there is a marking for connecting DS18B20 sensors to 1-Wire bus.

Technical parameters:

• Power supply from 3.3V I2C bus
• Supports 0.96 inch OLED display with 128×64 resolution, 4 lines, connection via I2C.
• Dimensions: 66 x 36 x 18mm
• Optional DIN rail mounting.
• 6 1-Wire inputs
