Huawei GPHF C++ | GPON Card | dedicated for MA5800 OLT

Huawei GPHF C

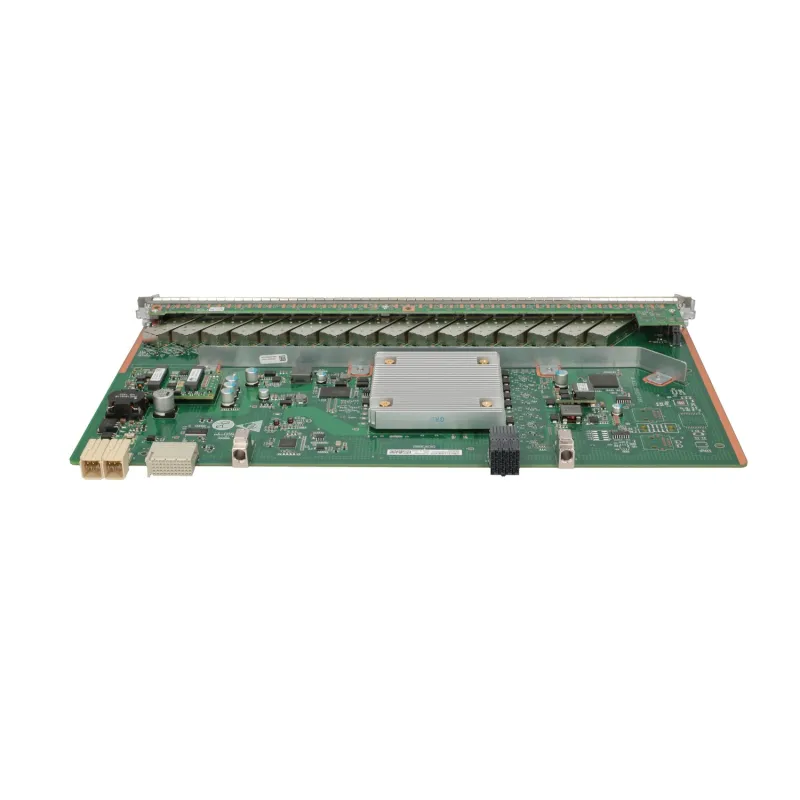

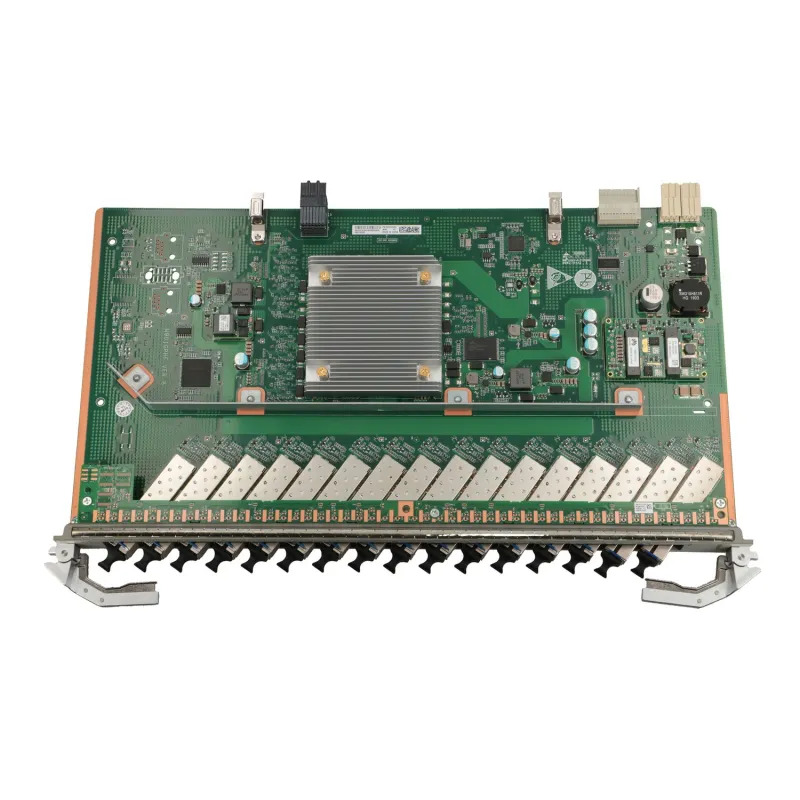

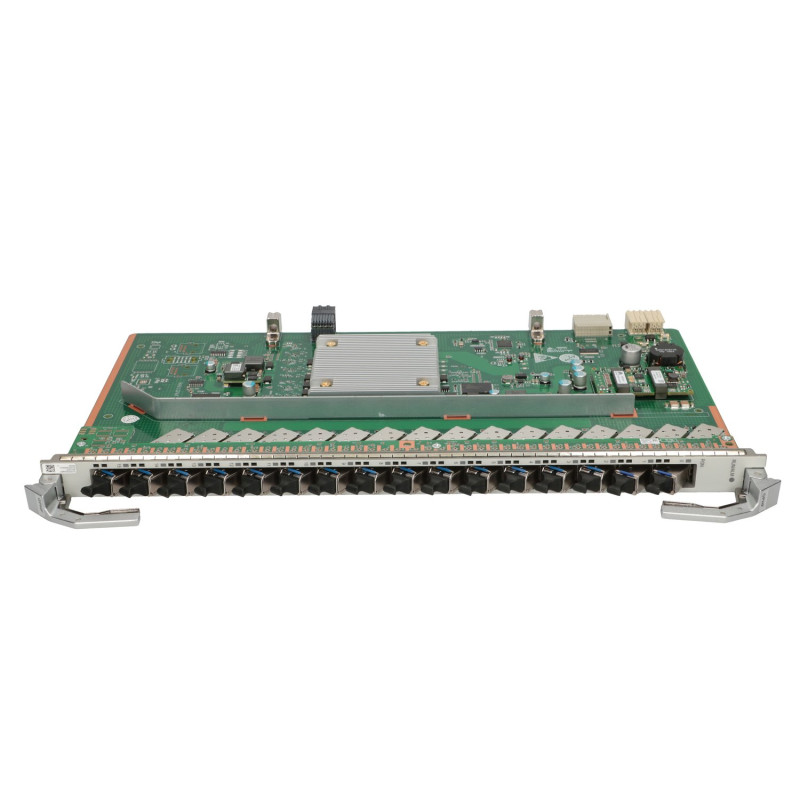

Huawei GPHF C is a 16-port Huawei NG OLT GPON interface card that provides access to GPON from the ONT. The GPHF, with 2.5 Gbps downlink and 1.25 Gbps uplink inserts, can access a maximum of 2048 subscriptions. The manual shutdown feature of idle PON ports prevents wasted power, and the use of 4-level HQoS (Hierarchical Quality of Service) technology and 9216 jumbo frames greatly improves the user experience.

GPHF-C Board Features and Specifications

16 GPON SFP ports
- maximum divide ratio 1: 128
- bi-directional unidirectional class B /C optical modules
- received signal strength indicator (RSSI) detection and optical module signal transmission control
- ONU based traffic shaping
- Temperature readout and high temperature alarm
- Automatic shutdown in case of high temperature
- FEC (Forward Error Correction)
- Type B / Type C protection
- L3VPN and D-CCAP networks
- maximum transmission range of 20 km
- False ONU detection
- GPON port optical power budget
- Class B optics with 28.5 dB power budget (used in most cases)
- Class C optics with 32 dB budget (used for long distance transmission)
- Class C optics with 35 dB budget (used for long distance transmission)
