Huawei MA5683T | OLT | 2x X2CS, 2x SCUN, 2x PRTE, no PON board

The Huawei MA5683T stands out as an all-in-one platform that integrates optical and copper access. Its versatility is manifested in the following aspects:

• Support for multiple access technologies: Support for VDSL, ADSL2 , G.SHDSL, POTS, ISDN, PON (including GPON) and Ethernet P2P.
• Adaptation to a variety of FTTx scenarios: Ideal for applications such as FTTC, FTTB, FTTH, FTTO, FTTM.
• Simplify network architecture: Enables traffic aggregation from remote devices through high-density GE/10GE interfaces.
• Smooth migration and TCO reduction: Facilitates FTTx network evolution, contributing to lower total cost of ownership.

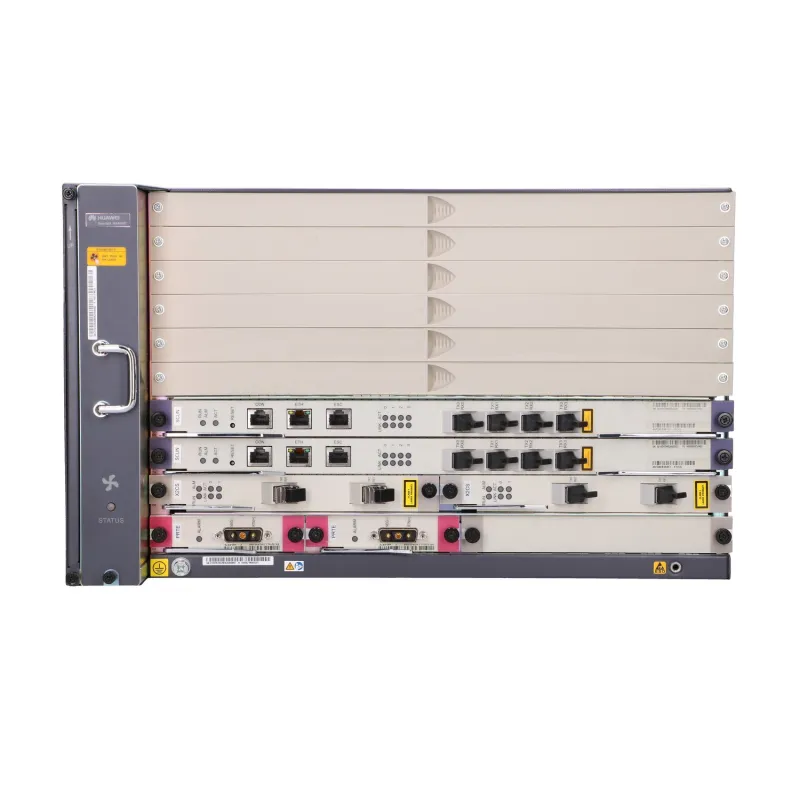

The standard Huawei MA5683T kit is comprehensively equipped with components for high performance and reliable operation. It includes:

• 2 PRTE power boards: operating redundantly at -48V DC, they guarantee continuous power supply to the OLT.
• 2 SCUN (Super Control Unit) control boards: Form the core of the control unit, they are responsible for system management, service switching and data aggregation. They also act as a management unit within the integrated NMS.
• 2 X2CS uplink boards: Each equipped with two SFP (10 Gbps) optical ports, providing high throughput for upstream or cascaded connections.

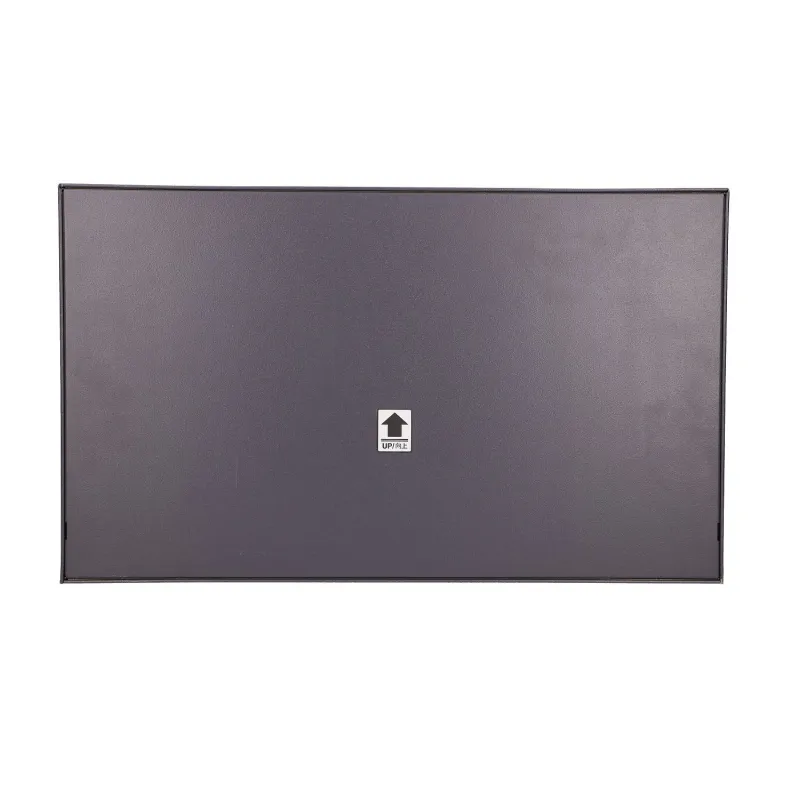

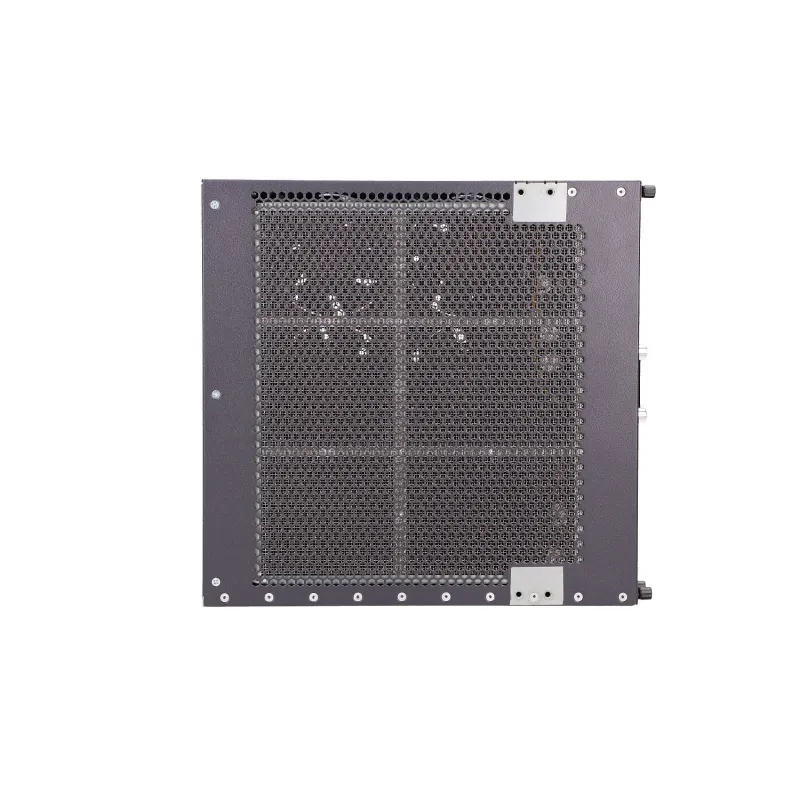

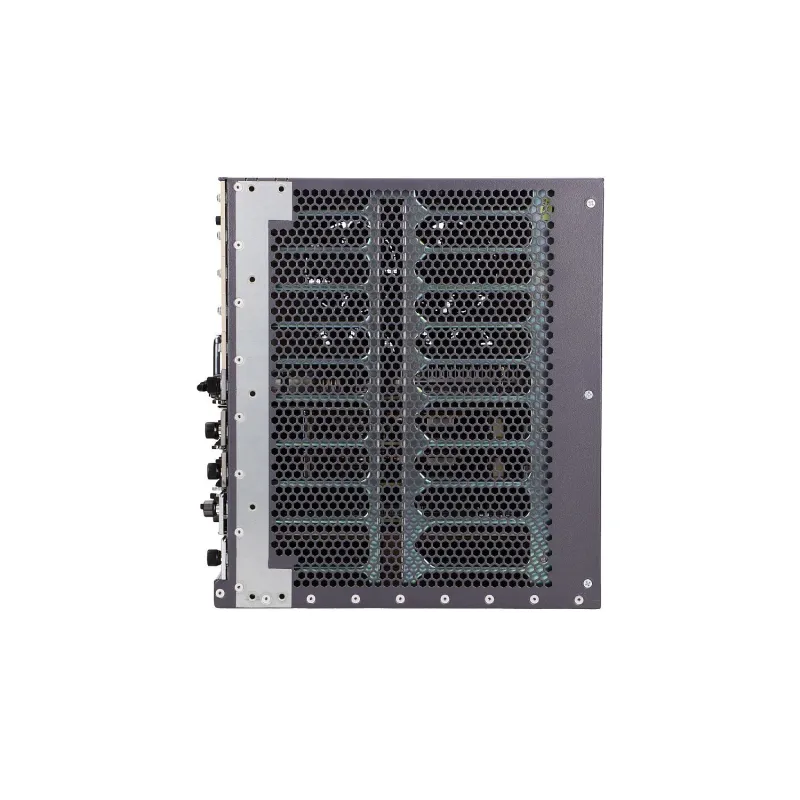

• MA5683T chassis: A basic 6U high unit to accommodate all components.
• Fan module: Responsible for maintaining proper operating temperature of the unit.

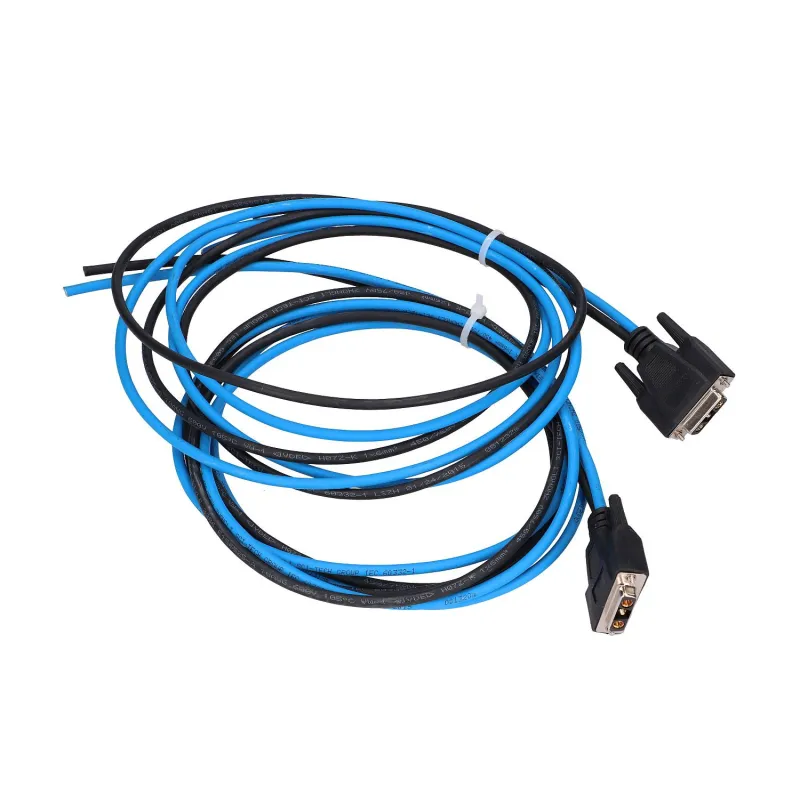

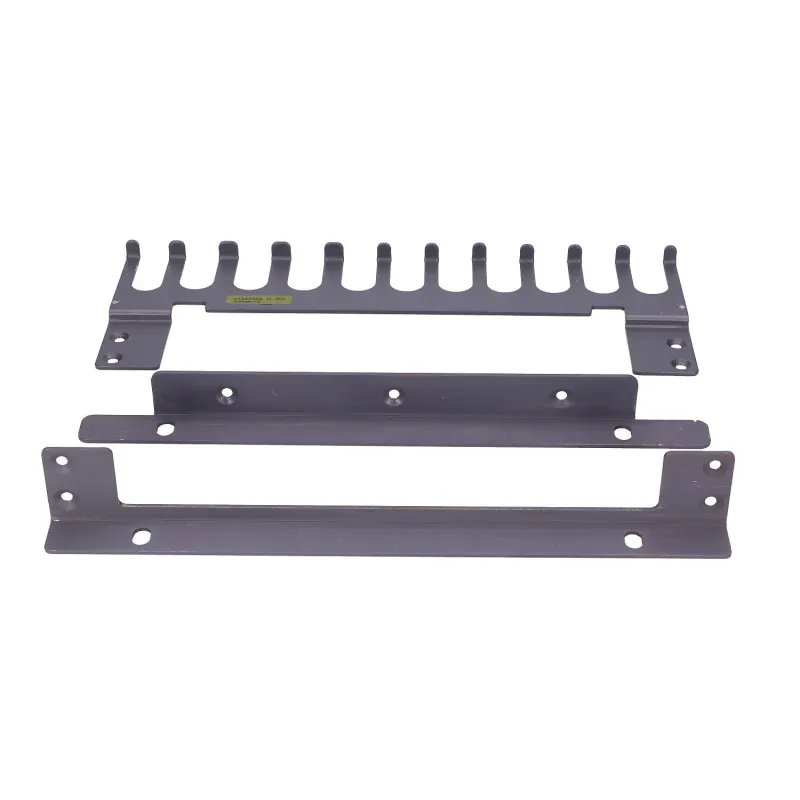

• Necessary accessories: Components to facilitate installation and configuration.
