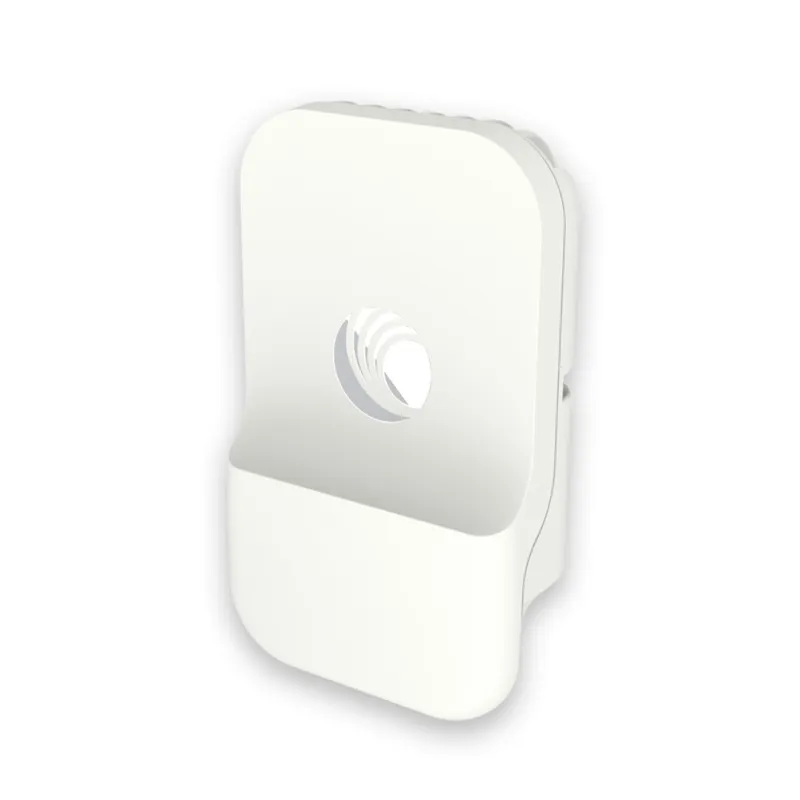

Cambium cnWave V1000 | CPE | 60 GHz Client Node, 1x RJ45 1000Mb/s PoE, EU cord

CPE Cambium cnWave V1000 for high speed and high density networks

Cambium Networks' cnWave 60 GHz solution provides easy, fast and cost-effective gigabit wireless connectivity for edge access or high-bandwidth backhaul links for edge access solutions at a much lower construction cost than fiber infrastructure. Service providers and enterprises now have access to gigabit connectivity for business and residential customers, as well as backhaul links for Wi-Fi access or LTE/5G small cells.

Network operation in densely populated areas

Facebook Terragraph certified cnWave network solutions deliver high performance while supporting high-density deployments in urban and suburban areas. Cambium V1000 features a wide beamforming range - the beamforming angle is 80º for easy installation. Powered by 802.3af PoE, the V1000 supports speeds up to 2Gbps - 1Gbps uplink and 1Gbps downlink.

Manage Cambium V1000 locally and in the cloud

60 GHz cnWave works with the cnMaestro management system from Cambium Networks. The cnMaestro™ system is a local or cloud-based software platform that provides secure and comprehensive network management. The cnMaestro Wireless Network Control Panel simplifies device management by providing complete network visibility and the ability to operate without assistance. We have the ability to view and perform a range of wireless network management functions in real-time.

Main features

• Supports 57 to 66 Ghz band
• TDMA/TDD channel access and network synchronization
• Terragraph Certified 802.11ay technology
• 80º horizontal, 40º vertical beam scanning range
• Throughput up to 2 Gbps with channel bonding (1Gbps uplink and 1Gbps downlink)
