TP-Link Omada ER707-M2 | Router | 2x 2.5GbE RJ45, 4x GbE RJ45, 1x SFP

EAN: 4895252500738

Reference: ER707-M2

749.56 zł gross gross / meter 609,40 zł netto gross / piece

Availability No product

Payments methods

przelewy.jpg google-pay.jpg apple-pay.jpg mastercard.jpg visa.jpg blik.jpg mbank.jpg paypo.jpg payu.jpg

TP-Link Omada ER707-M2 Multi-Gigabit VPN Router.

The TP-Link Omada ER707-M2 is an industrial VPN (Virtual Private Network) router designed for broadband network management in large facilities. With two 2.5GbE ports and four RJ45 gigabit ports (Ethernet - a computer network communication standard), the router provides high throughput and low latency, ideal for offices, hotels or data centers. The Omada ER707-M2 offers full cloud-based management, making it easy to configure and monitor devices from anywhere.

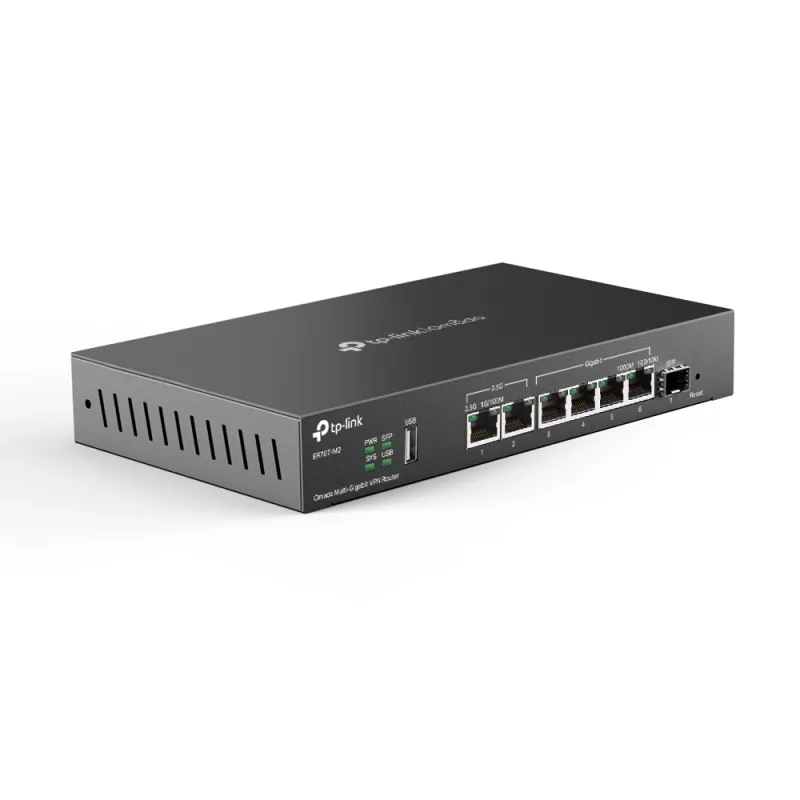

TP-Link Omada ER707-M2 router with six RJ45 ports (including two 2.5G), SFP port and USB 2.0 port

High Speed Connections with Higher Bandwidth

The TP-Link Omada ER707-M2 is equipped with 2 2.5GbE ports and 4 RJ45 gigabit ports for a high-performance, high-bandwidth network connection. With 2.5GbE, the device supports data transfers at speeds of up to 2.5Gbps, which is ideal for applications requiring high-speed data exchange, such as high-definition video streaming or large file synchronization. RJ45 ports, on the other hand, provide versatility by supporting a variety of network devices.

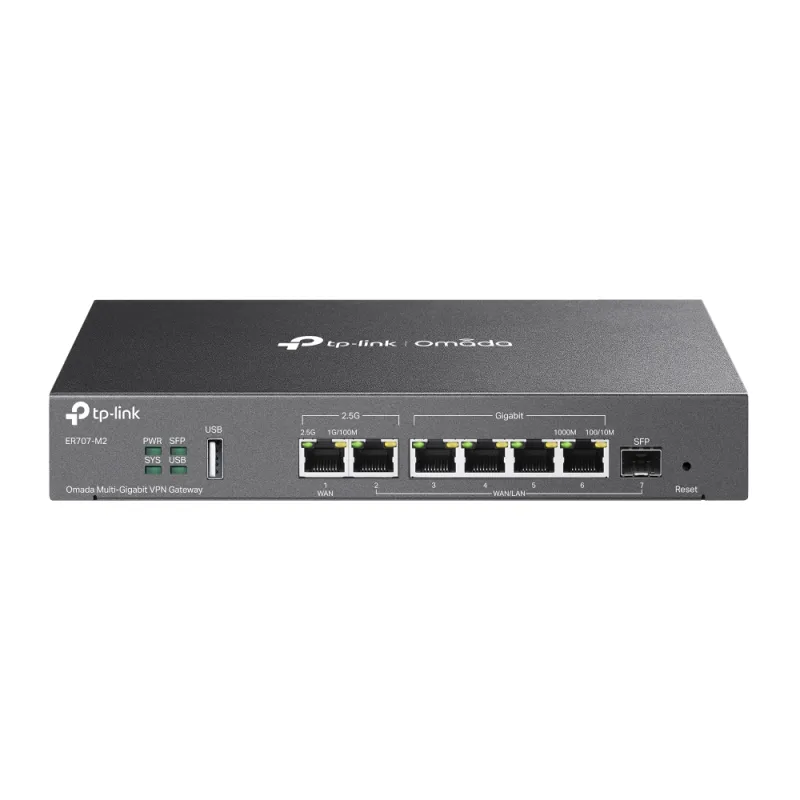

View of the router with port descriptions: 1× USB 2.0, 1× RJ45 WAN 2.5G, 1× RJ45 WAN/LAN 2.5G, 4× RJ45 WAN/LAN Gigabit, 1× SFP WAN/LAN Gigabit

Security and VPN

The TP-Link Omada ER707-M2 supports multiple VPN protocols, including IPSec, L2TP, PPTP and OpenVPN, providing a secure VPN for inter-branch or remote work connections. The router offers secure data transmission, which is crucial for companies that need to protect their information on the network. With corporate VPN standards, users can rest assured that their connections are encrypted and protected.

Router with highlighted 2.5G port and 2.5 Gbps speed description

Cloud Management and Monitoring

The TP-Link Omada ER707-M2 is compatible with Omada's SDN (Software Defined Networking) platform, which enables central management of devices on the network. With cloud-based management, the device allows you to remotely configure, monitor performance and receive real-time notifications of problems. Intelligent monitoring and data analysis allow faster diagnosis of problems and optimization of network performance.

Router with representation of security features: firewall, VLAN, DoS protection, IP/MAC/URL filtering, IP-MAC binding and ALG activation

Simple Installation and Remote Configuration

TP-Link Omada ER707-M2 supports Zero-Touch Provisioning (ZTP), which means unattended configuration of the device as soon as it is connected to the network. With this feature, the installation process becomes quick and easy, and router configuration is automatic. Remote management via the Omada app allows you to administer the device without physical intervention, which saves time and increases efficiency

Diagram of VPN connection between headquarters and branch office using IPSec VPN, managed by Omada controller with VPN policy configuration interface
Storage relative humidity (H-H) 5 – 90%
Height 35 mm
Output voltage 12 V
LED indicators LAN
URL filtering Yes
Universal Plug and Play (UPnP) Yes
Wall mountable Yes
Width 226 mm
Depth 131 mm
Security algorithms 128-bit AES
Storage temperature (T-T) -40 - 70 °C
Compliance certificates CE
VPN tunnels quantity 66
USB ports quantity 1
Package weight 1100 g
Humidity measurement range 10 - 90%
Networking standards IEEE 802.1Q
Ethernet LAN (RJ-45) ports 6
Flash memory 128 MB
Performance 1.44 Gb/s
Operating temperature (T-T) 0 – 40 °C
Quick installation guide Yes
Package depth 323 mm
Package height 73 mm
AC adapter included Yes
Package width 242 mm
Supported network protocols TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP
Ethernet interface type 2.5 Gigabit Ethernet
VLAN support Yes
Reset button Yes
Web-based management Yes
Output current 1.5 A
Internal memory 1000 MB
Installed SFP modules quantity 1
WAN ports quantity 1
WAN/Ethernet LAN ports quantity 6
Linux operating systems supported Yes
Mac operating systems supported Yes
System event log Yes
Windows operating systems supported Windows 10
USB version 2.0
Power source type DC
Product colour Black
Internal memory type DDR4
Network address translation (NAT) Yes
Access Control List (ACL) Yes
ICMP attack prevention Yes
DMZ support Yes
Ethernet WAN Yes
Policy-based routing Yes
Static route Yes
DHCP client Yes
SFP WAN Yes
DHCP server Yes
Watch case material Steel
Sustainability compliance Yes
