Extralink SFP 1.25G | SFP Module | 1,25Gbps, LC/UPC, 1550nm, 80km, single mode, DOM
EAN: 5902560368024
Reference: EX.8024
84.01 zł gross gross / meter 68,30 zł netto gross / piece
Warranty and service support
Available options and delivery cost
Same-day shipping
Payments methods

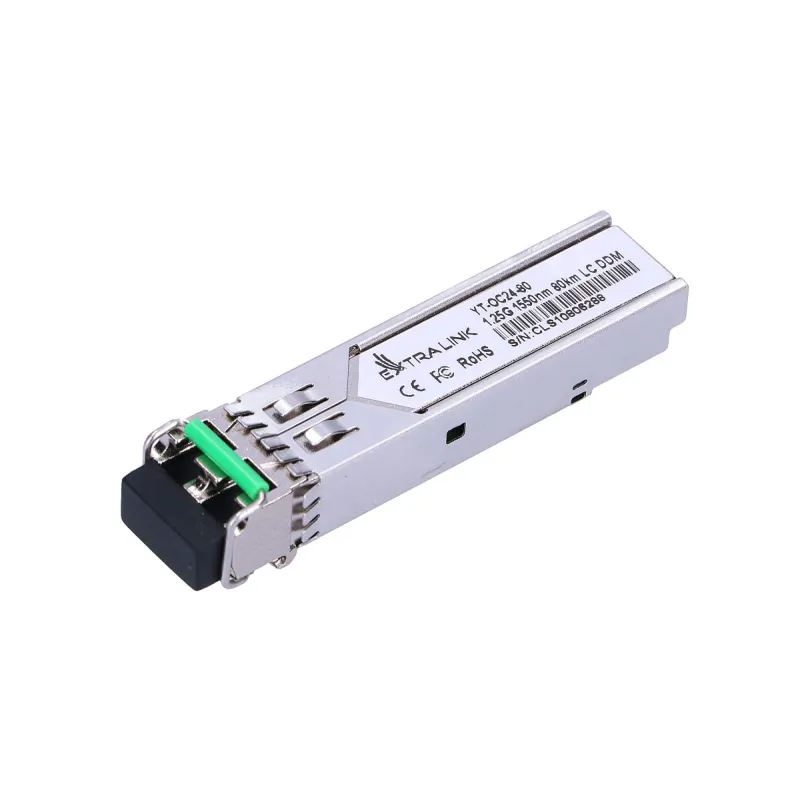

High-performance Extralink SFP 1.25G 1550NM 80KM SM DDM LC DX module
The Extralink SFP 1.25G 1550NM module is a high-performance, cost-effective SFP optical insert that supports data transmission at 1.25 Gbps, with a range of up to 80 km using SMF. The single-mode SFP module is equipped with a PIN photodetector and a DFB laser using 1550 nm wavelengths. The Extralink SFP 1.25G 1550NM has an LC duplex output connector, and is compliant with SFP MSA and SFF-8472 standards and RoHS directive.
Special features
Regulatory Approvals FCC
SFP transceiver type Fiber optic
CD-ROM interface type SFP
Storage temperature (T-T) -40 - 85 °C
Compliance certificates CE
Maximum data transfer rate 1250 Mb/s
Humidity measurement range 5 - 85%
Operating temperature (T-T) 0 - 70 °C
Single-mode fiber (SMF) supported Yes
Wavelength 1550 nm
Maximum transfer distance 80000 m
Rx wavelength (max) 1580 nm
Rx wavelength (min) 1260 nm
Tx wavelength (max) 1580 nm
Tx wavelength (min) 1480 nm
Maximum spike current 0.3 A
