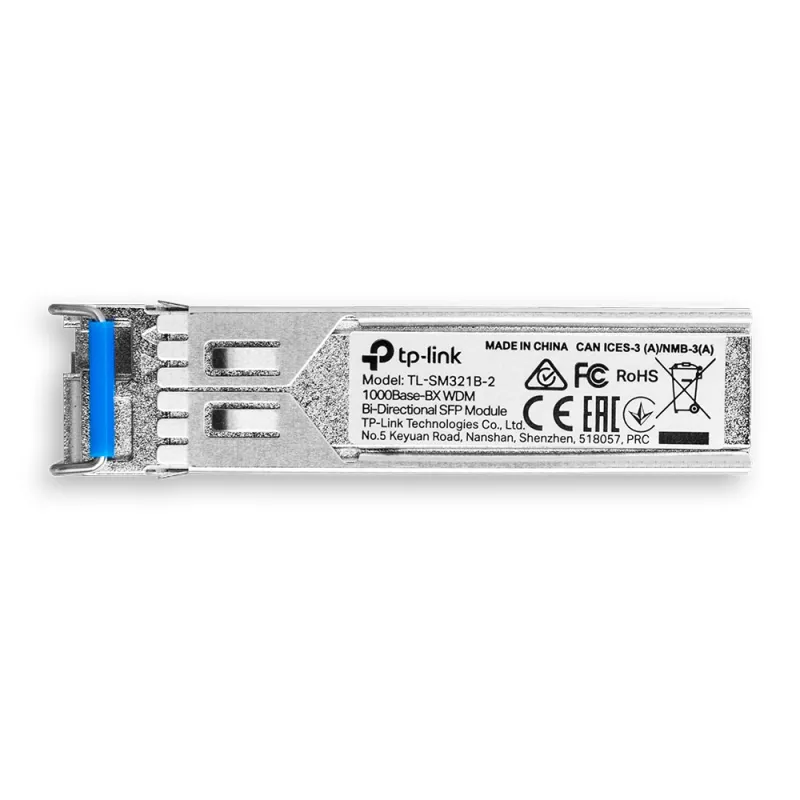

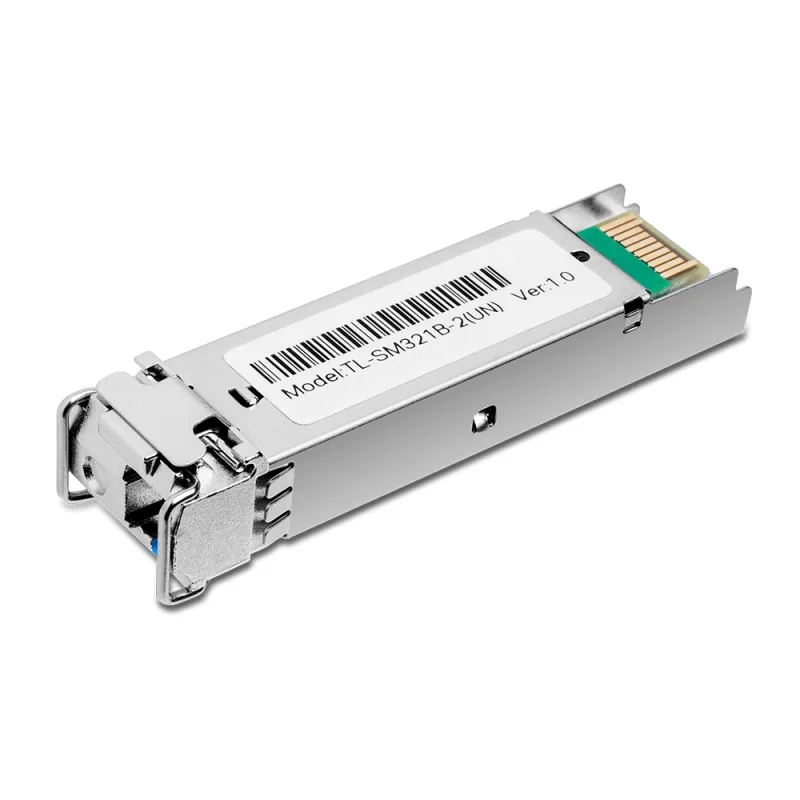

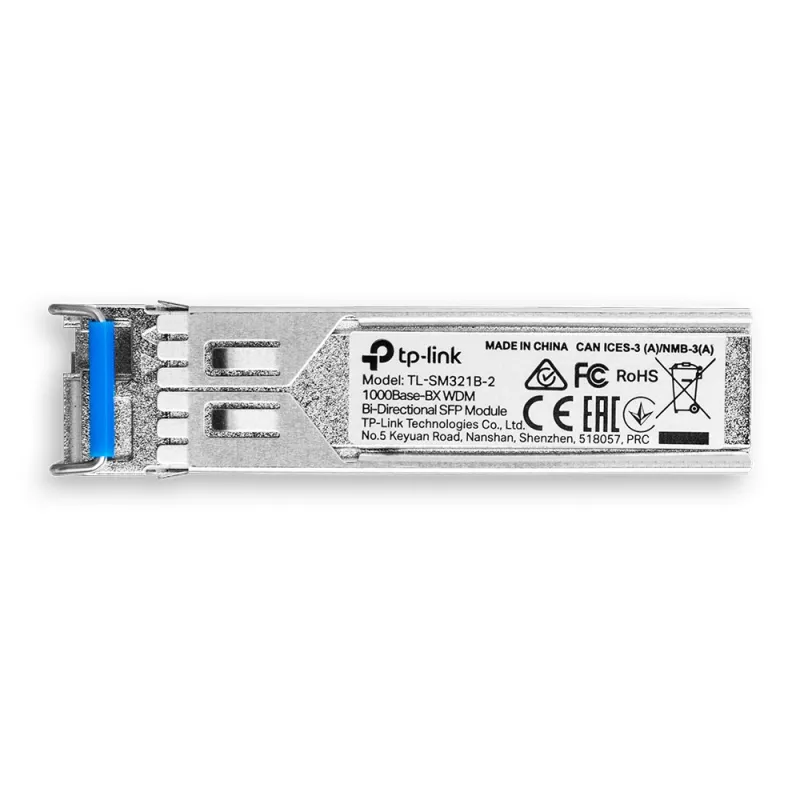

TP-Link TL-SM321B-2 SFP Module
The TL-SM321B-2 module is designed in accordance with the SFP-MSA standard. TL-SM321B-2 is a bi-directional optical WDM transceiver using an integrated bi-directional LC optical interface with a transmission range of up to 2 km over 9/125 µm single mode fiber.
The TL-SM321B-2 switch is also equipped with a digital diagnostic monitoring (DDM) function in compliance with SFF-8472 standard. The DDM supports real-time monitoring of the transceiver and displays parameters such as transceiver transmit/receive optical signal voltage and operating temperature. In practice, TL-SM321B-2 is used in short and medium distance fiber networks, providing fast and stable gigabit fiber connection for switches, routers, servers, etc.
Regulatory Approvals FCC, CE
SFP transceiver type Fiber optic
Storage relative humidity (H-H) 5 - 90%
CD-ROM interface type SFP
Height 12.9 mm
Width 55.4 mm
Depth 14.6 mm
Storage temperature (T-T) -40 - 80 °C
Compliance certificates RoHS
Maximum data transfer rate 1250 Mb/s
Package weight 60 g
Humidity measurement range 10 - 90%
Fiber cable diameters supported (core/cladding) 9/125 µm
Harmonized System (HS) code 85369010
Networking standards IEEE 802.3z
Operating temperature (T-T) 0 - 70 °C
Package depth 122.5 mm
Package height 38.5 mm
Package width 81.5 mm
User guide Yes
Fiber optic connector LC
Multi-mode fiber (MMF) supported No
Single-mode fiber (SMF) supported Yes
Wavelength-division multiplexing (WDM) Yes
Product colour Metallic
Maximum transfer distance 1000 m
Rx wavelength (max) 1550 nm
Tx wavelength (max) 1310 nm
SFP transceiver standard BX
