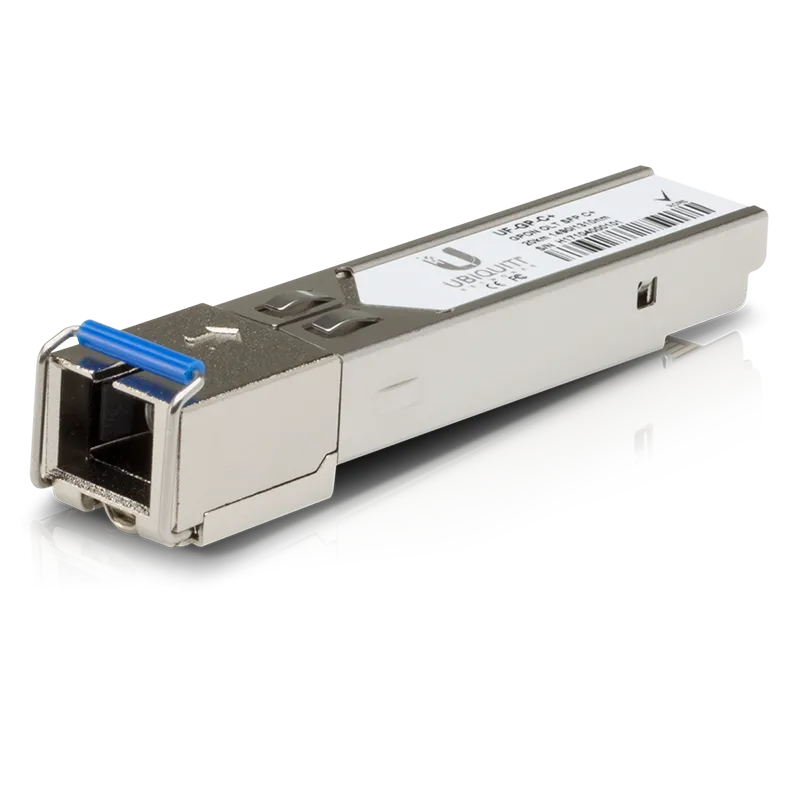

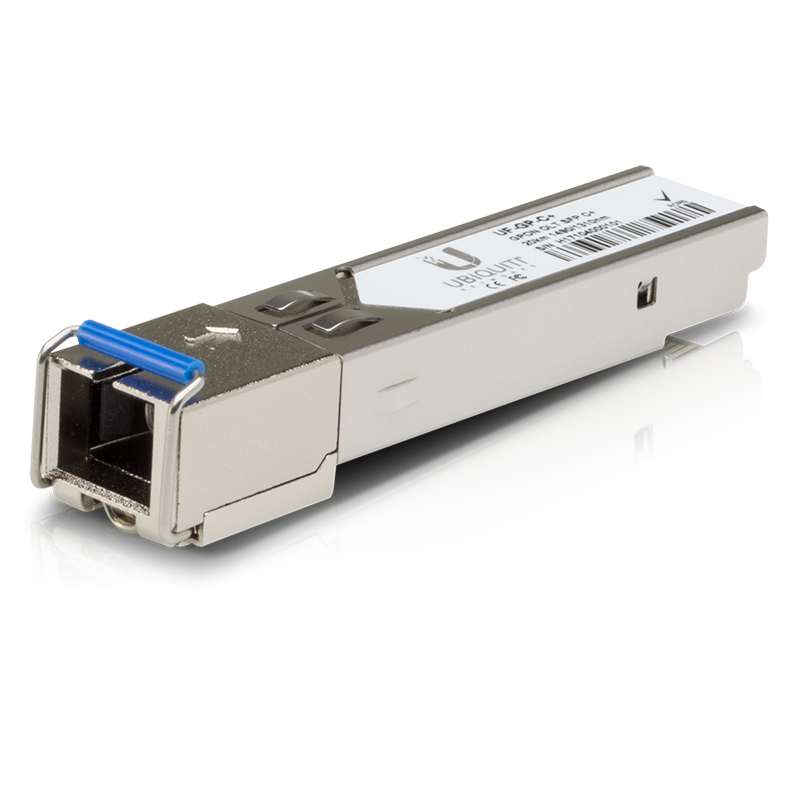

Ubiquiti UF-GP-C+ | SFP Module | UFiber, 1,25Gb/s, SC/UPC, TX 1490 nm, RX 1310 nm, Single mode

GPON SFP UF-GP-C+ module for Ubiquiti OLTs

Ubiquiti UF-GP-C+ is a single-mode GPON cartridge dedicated for Ubiquiti OLT terminals. The SFP GPON optical module transmits data using single-mode fibers over a distance of up to 20 km. Wavelengths are 1310 nm and 1490 nm and the optical power range is 3 to 7 dBm. SFP UF-GP-C+ inserts are equipped with SC/UPC connectors. Data is sent at 1.25 Gb/s and downloaded at 2.5 Gb/s.

Special features

• Single-mode fiber handling
• TX wavelengths: 1490 nm/ Rx: 1310 nm
• 1 SC/UPC socket
• Throughput: 2.5 Gb/s downstream, 1.25 Gb/s upstream
• Range 20 km
