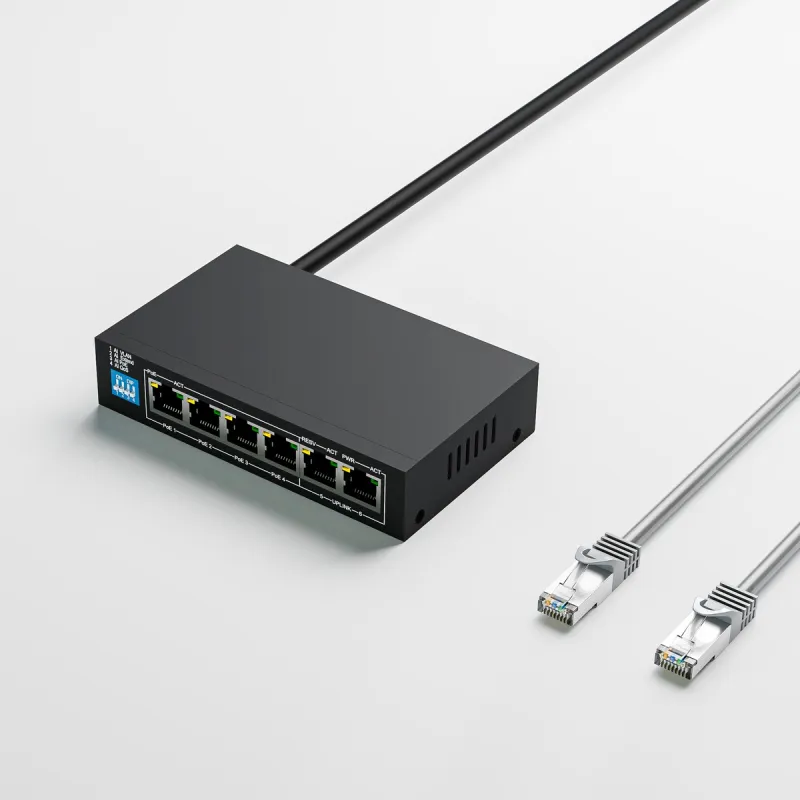

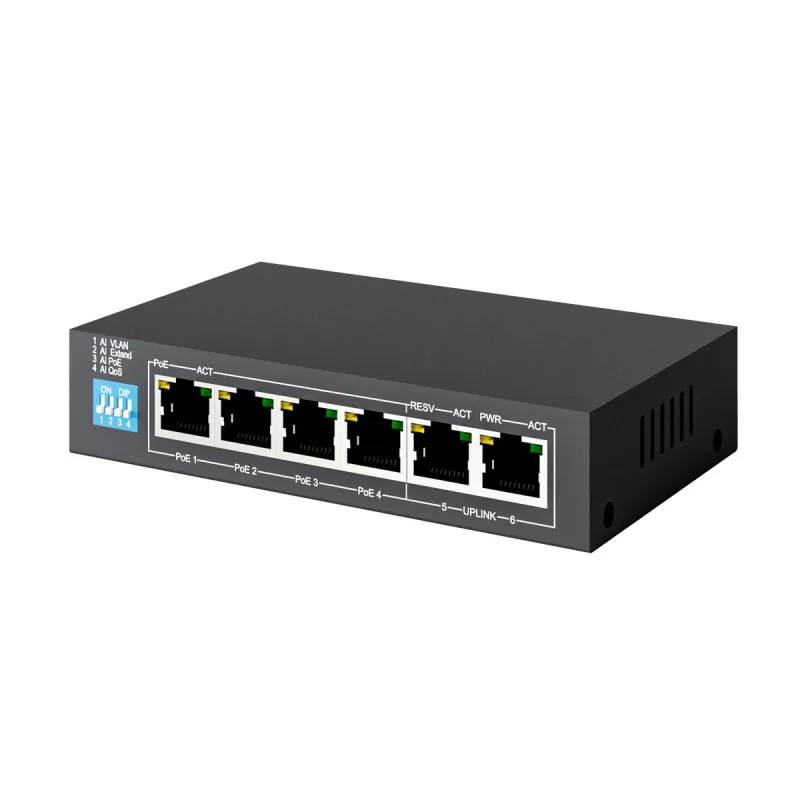

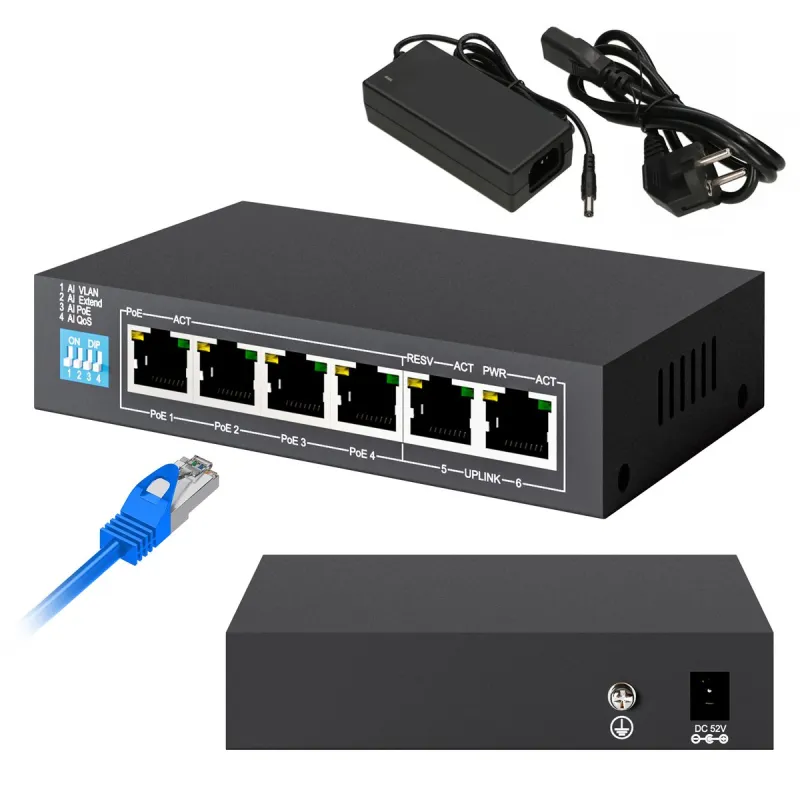

Extralink KRIOS PoE Switch 4x Gigabit PoE/PoE+, 2x RJ45 Uplink Gigabit, 60W

Extralink Krios PoE switch with Gigabit ports

It is a 6 port unmanaged switch with 4 PoE ports at a maximum speed of 1000 Mbps, with support for IEEE 802.3af/at standards with maximum power per port up to 30W. The switch also has 2 RJ45 ports without PoE power options. These ports can be used as Uplink ports or to connect additional devices e.g. video recorder for monitoring.

Four additional operating modes of the PoE switch

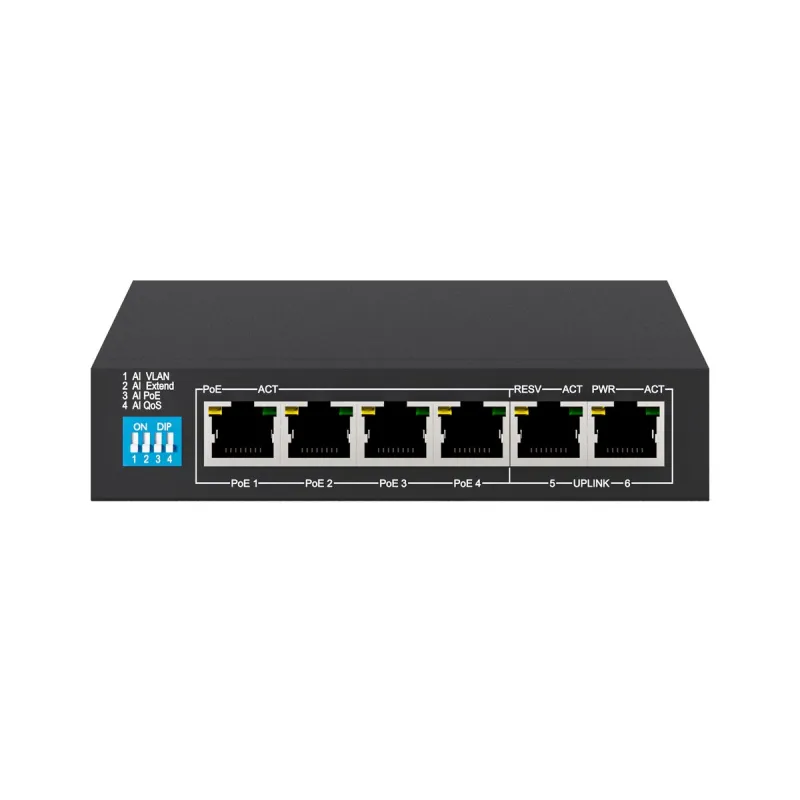

The KRIOS switch has four switches on the front that allow you to run additional modes to improve network performance or range. Below is a presentation of each mode's operating principles:

• VLAN mode - when this mode is activated, the ports 1-4 are isolated from each other, which can effectively suppress public address storms and improve network performance.
• EXTEND Mode - allows ports 1-4 to efficiently transmit data and PoE power over distances of up to 250 meters, which is ideal for video surveillance systems.
• AI PS mode - the switch automatically detects the operating status of the connected device to one of the PoE ports and when it detects that it is not working properly it automatically restarts the device.
• AI QoS Mode - In this mode, video data is processed as a priority to ensure a smooth image. The solution used primarily in monitoring solutions.

Extralink Krios Switch PoE

Main features:

Main features:

• 4 operating modes - VLAN, EXTEND, AI PS, AI QoS
• Support for IEEE 802.3af/at standards
• Auto MDI/MDIX support
• Store-and-forward
• Power circuit protection, to protect terminal equipment
• Fanless design to save energy and protect the environment
• Energy saving function on unused ports
