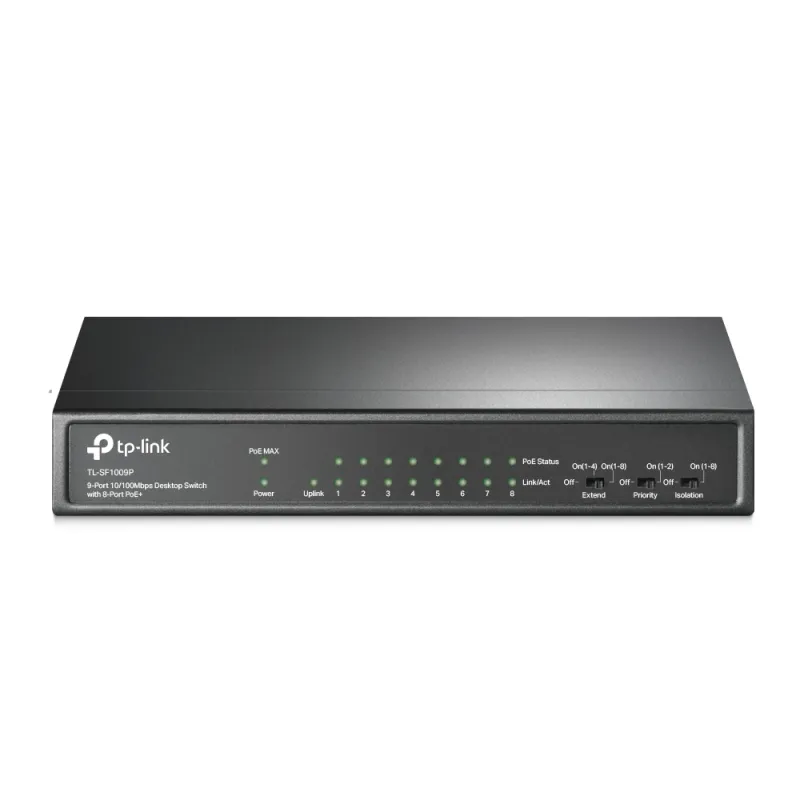

TP-Link TL-SF1009P desktop switch

The TP-Link TL-SF1009P Unmanaged Switch is equipped with nine RJ-45 ports, including eight with PoE support. Standard data transmission range over shielded or unshielded twisted pair cable at any speed up to 100 M. For video surveillance systems, EXTEND mode is available - data transmission and power supply up to 250m at 10 MB/s (for PoE ports), alongside protection against equipment damage.

The perfect solution for small businesses

The throughput of the matrix is 1.8 GB/s. The packet forwarding rate is 1.3392 mpps. The 2K MAC table provides automatic detection, memorization and deletion of aging addresses. The 2 Kb jumbo frame improves performance when forwarding large data packets. Plug and Play technology automatically detects the connected device and integrates it into the switching network.

Main advantages and features

Main advantages and features

• 9 RJ45 10/100 Mbps ports
• 8 PoE ports, data transfer and powering devices using the same cables
• Compatible with IEEE 802.3af devices
• Up to 30 watts power for a single port
• Up to 65 W total PoE power

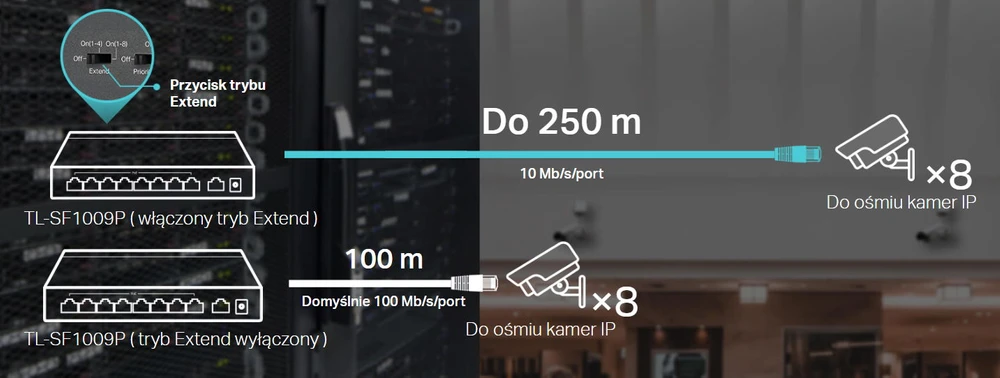

• Up to 250 m data and power transmission range in Extend mode
• High priority for ports 1-2 in Priority mode to maintain high performance of systems vulnerable to interference
• Easy to configure port isolation for greater security and network efficiency

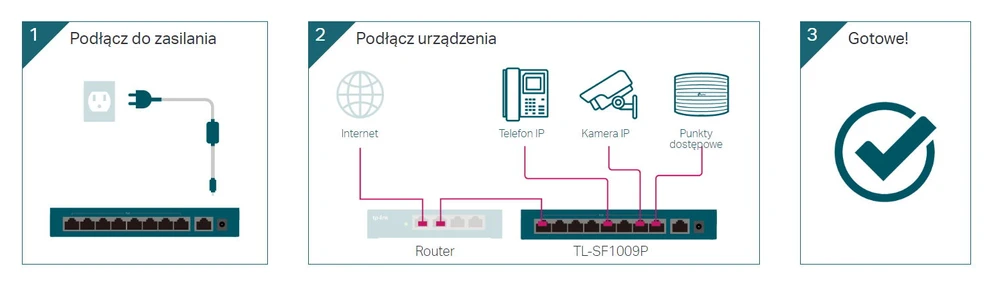

• Plug and play installation, no configuration required
