Ubiquiti USW-Pro-Max-24-PoE | Switch | Etherlighting, 8x RJ45 2.5Gbps, 16x RJ45 1000Mbps, 2x SFP+, L3, 400W PoE

Ubiquiti UniFi Switch Pro Max 24 PoE: Advanced Networking Solution for Modern Enterprises.

The Ubiquiti UniFi Switch Pro Max 24 PoE (USW-Pro-Max-24-PoE) is a high-performance Layer 3 Etherlighting managed PoE switch designed to meet the demands of modern networking environments. Equipped with 24 ports, including 16 Gigabit Ethernet PoE /PoE ports and 8 2.5 Gigabit Ethernet PoE ports , it provides the flexibility and reliability you need to handle the most demanding network traffic.

Advanced Management and Performance Features

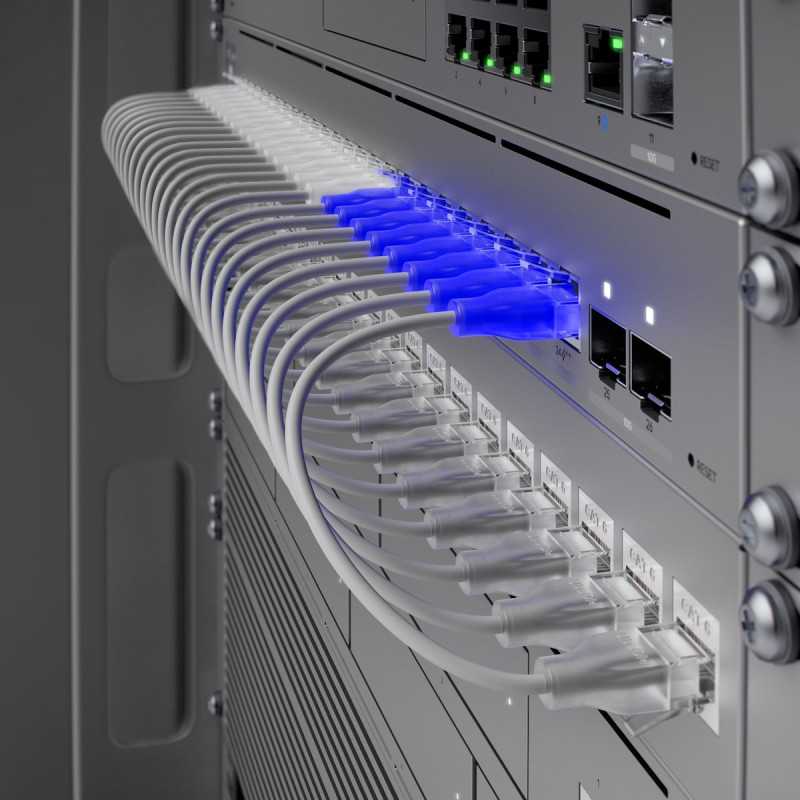

The USW-Pro-Max-24 PoE offers 24 Gigabit Ethernet RJ45 ports (10/100/1000 Mbps), including 8 PoE ports and 8 PoE ports , and 8 2.5 Gigabit Ethernet RJ45 ports (1/2.5 Gbps), all with PoE support . In addition, the switch has 2 10 Gbps SFP slots for uplink connection to the corporate network. With Etherlighting technology, identifying port location, link speed and native VLAN/network is quick and easy.

Reliable Power and PoE Support

The USW-Pro-Max-24 PoE switch powers demanding devices such as access points, IP cameras and VoIP phones with up to 60W of PoE per port, for a total PoE power budget of an impressive 400W. DC backup power ensures uninterrupted operation even during power outages, and UniFi SmartPower RPS DC support enables backup in case of internal power supply failure.

Easy Setup and Management

The USW-Pro-Max-24 PoE is managed and configured using the UniFi Network Controller, which supports UniFi mobile apps. UniFi Network Controller allows you to share UniFi devices, map your network and manage traffic from anywhere. The switch has a 1.3-inch LCM touchscreen display that provides connection status information and facilitates monitoring and quick troubleshooting.

Advanced Layer 2 and 3 Features

The USW-Pro-Max-24 PoE switch offers a set of advanced Layer 2 switching protocols and features, including modes of operation (switching, mirroring or aggregation) per port. In addition, Layer 3 features such as inter-VLAN routing, static routing and DHCP server functionality provide advanced network traffic management capabilities.

Compact Design and Easy Assembly

The USW-Pro-Max-24 PoE features a compact size and fanless design, making it ideal for installation in a 19" 1U rack. The kit also includes mounting brackets for easy installation in a variety of network environments.
