Jirous JRC-29 Duplex Precision N/Female Parabolic Antenna, 5.45 - 5.9GHz, 29dB, Designed for Mimosa B5C

JIROUS JRC-29 DUPLEX PRECISION N/FEMALE

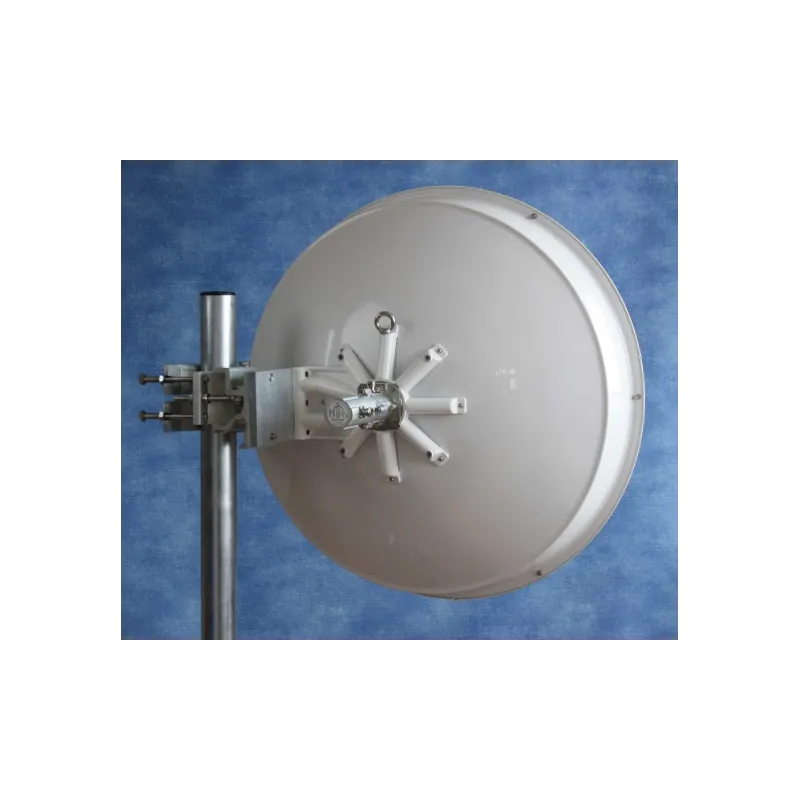

The double polarized JRC-29 DuplEX Precision parabolic antenna is designed for directional connections with full-duplex mode or MIMO duplex mode in the 5 GHz frequency band with high isolation level. The antenna is designed to work over long distances. Its design with a deep plate increases the isolation between the antennas on the mast and increases the front to back signal ratio. The Precision version includes a massive JDMW-900 handle developed for microwave links.

Compatibility and installation

The Jirous product can be used in combination with an external JR - 350 Alu metal box for AP, RouterBOARDs and other electronics. JRC-29 DUPLEX PRECISION has separate snap-on nuts for easy mounting and adjustment of azimuth and height. Right and left side mounting is possible. The Jirous antenna is supplied with JDMW-900 holder (packed separately), which enables easy mounting on a mast. The bracket can be installed separately on a mast, then you can simply hang the antenna with a microwave unit. The bracket allows precise adjustment in both directions. In places where strong winds are expected to occur it is recommended to mount on a mast with a minimum diameter of 50 mm..
