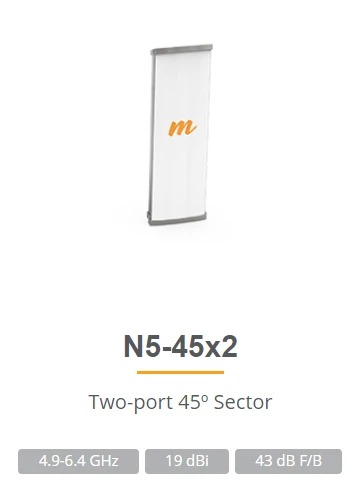

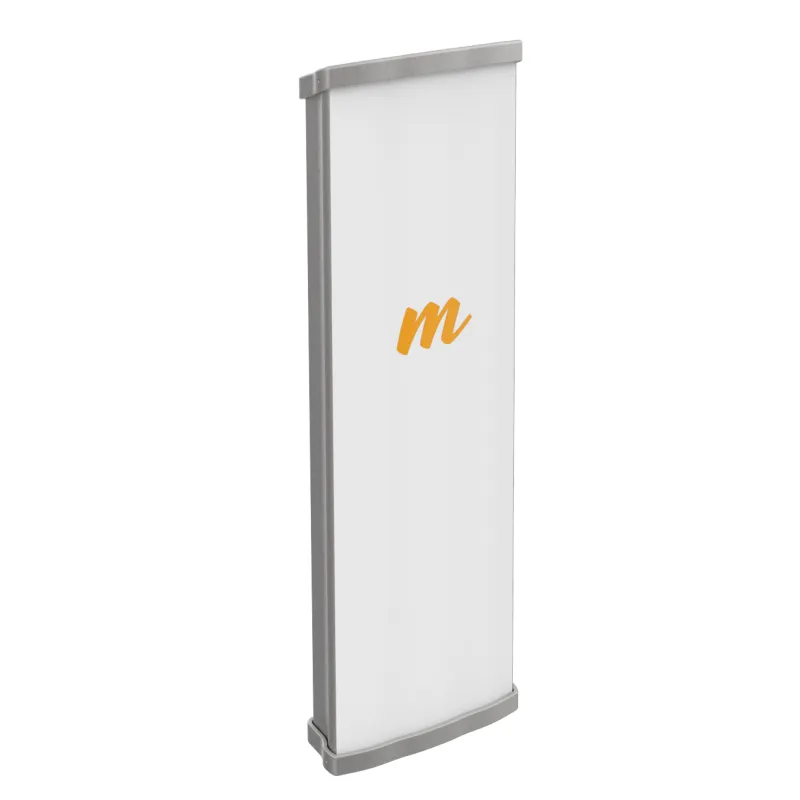

Mimosa N5-45X2 | Sector antenna | 19dBi, 45st, 4,9-6,4 GHz, 2x N-female
EAN: 708747437393
Reference: N5-45X2
-
Warranty and service support
-
Available options and delivery cost
-
Same-day shipping
Payments methods
Breakthrough sector antenna
All the best in one antenna - profit and land cover as in the sector, and no side leaves as in the horns.

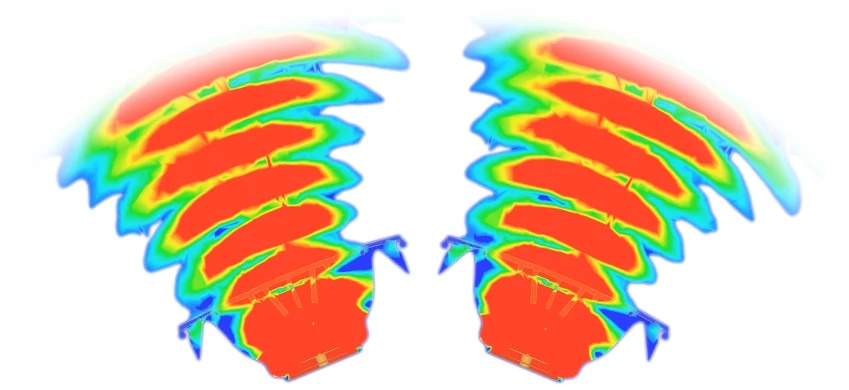

No side leaves
Developed using the latest technology and radio frequency knowledge, the N5-45 antenna offers high gain and 42º beam coverage with no side leaves at all.
The highest ratio of primary to secondary radiation on the market

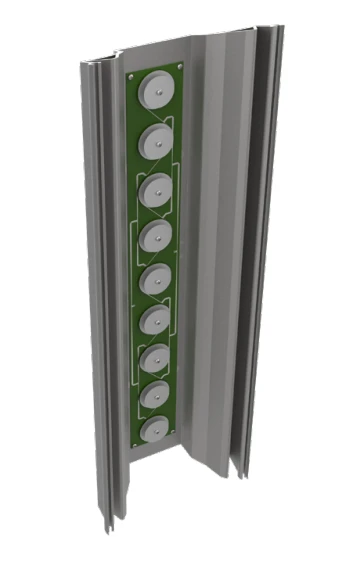

The main to reverse radiation factor of 43dB N5-45 is achieved by metallizing the relevant components and a precisely formed backplate.

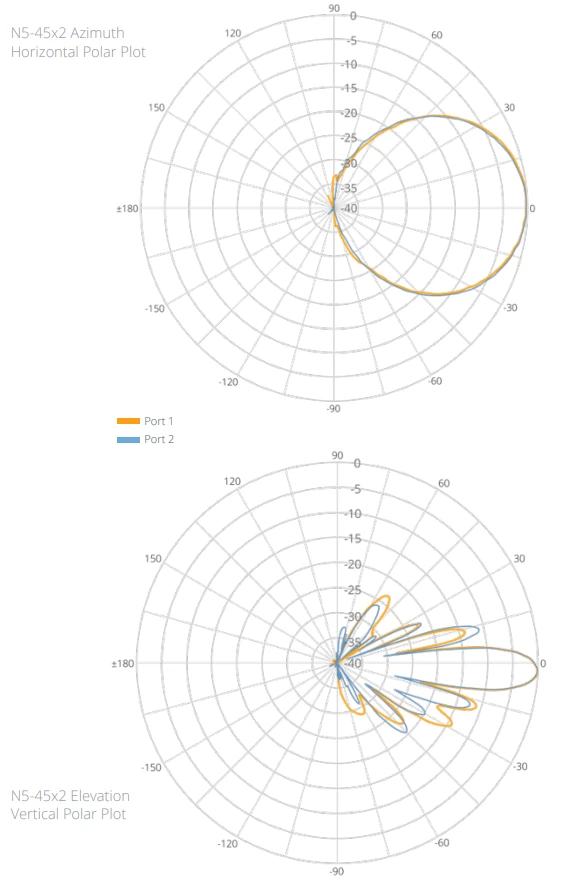

Characteristics of the antenna N5-45x2

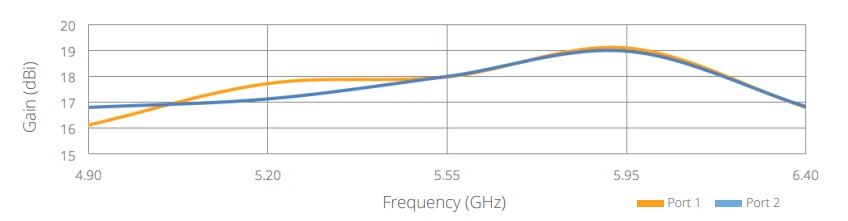

Profit flow as a function of frequency
N5-45 is an antenna with extremely wide operating frequency range of 4.9 - 6.4 GHz. With an additional 800 MHz outside the standard range, you can easily avoid interference.

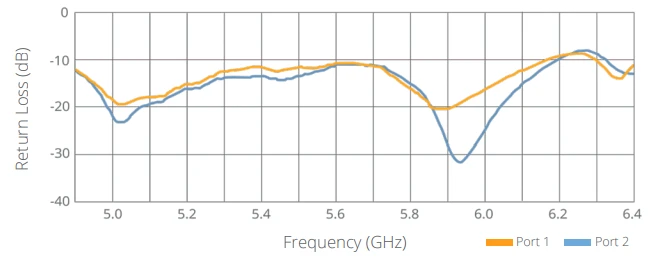

Reflection losses as a function of frequency
Compatibility N5-45x2
Standard N antenna connector and two radio streams are the most popular configuration on the market. N5-45x2 is a universal and trouble-free antenna cooperating with access points of other companies. Thanks to its unique parameters, each device will allow full extension of the wings.
