Huawei HG8247H | ONT | 2,4GHz, 1x GPON, 1x RJ45 1000Mb/s, 3x RJ45 100Mb/s, 1x RJ11, 1x USB, 1x CATV

CODE: HUAWEI HG8247H

Huawei HG8247H | ONT | 2,4GHz, 1x GPON, 1x RJ45 1000Mb/s, 3x RJ45 100Mb/s, 1x RJ11, 1x USB, 1x CATV

CODE: HUAWEI HG8247H
55,76 GBP without VAT (net)
PON standard: GPON
Wireless network standards: IEEE 802.11bIEEE 802.11gIEEE 802.11n
USB port: 1x USB
Show more parameters

About product

ONT Huawei Echolife GPON client terminal HG8247H, 1 x GPON, 4 x GE, 1 x CATV, 2 x POTS, 1 x USB, WiFi

Huawei Echolife HG8247H is a GPON Optical Network Terminal (ONT), with CATV, USB, POTS and WiFi ports. It is an ideal solution for FTTH type networks. It has 4 x RJ45 1000Mbs 2 x RJ11 (2 x POTS), 1 x USB and high class B+ GPON ports. The product also allows for very comfortable wireless transmission using two antennas with 2 dBi gain. This modern ONU uses IEEE 802.11b/g/n WiFi technology and 2×2 MIMO. This allows to achieve 300 Mb/s wireless capacity. The terminal uses G.711A/u, G.729a/b and G.722 encoding / decoding as well as T.30, T.38 and G.711 for fax mode. It uses the SIP and H.248 protocols for audio transmission.

echolife Gpon ONU HG8247H router Gigabit ethernet port CATV 2x POTS - ONT dual mode FTTH

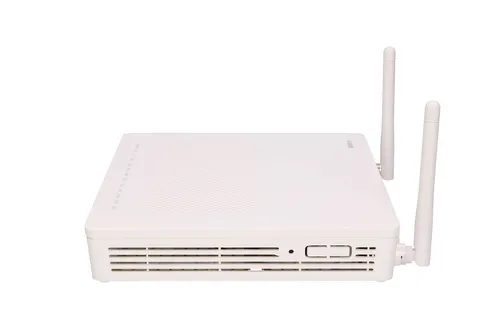

Front panel HG8247H

Huawei hg8247h router - versatile features

The offered Huawei client terminal is equipped with numerous management and routing functions. It supports multicast IGMP Snooping / proxy v2/v3, MDL Snooping v1/v2 routing via WiFi. It uses NAT / NAPT, PPPoE, DHCP and static IP. It can work according to IPv6 and use IPv4/IPv6 dual stack and DS-Lite. Huawei ONU Echolife HG8247H is also equipped with advanced QoS function and built-in SIP firewall. It also allows you to filter MAC / iP / URL. It provides dynamic power savings - a power saving indicator. You can link one account to two POTS ports that your device has. Additionally, the manufacturer has equipped the router with a smart parental control system.

Specification

Features / filters
Number of LAN ports 1x 10/100/1000BaseTX (RJ45), 3x 10/100BaseTX (RJ45),
PON standard GPON
Wireless network standards IEEE 802.11b, IEEE 802.11g, IEEE 802.11n,
USB port 1x USB
VoIP ports 2x POTS

Technical specifications - Huawei HG8247H Gpon router WiFi subscriber terminal

Interfaces
GPON port Class B+
Sensitive reception: -27 dBm
Wavelength: US 1310 nm, DS 1490 nm
Secure authentication mode: SN, password or SN + password
Upstream/downstream FEC
Ethernet port 4 ports 10/100/1000 BASE-T (RJ45)
VLAN filtering
Transparent VLAN transmission
CATV port Bandwidth 54-870 MHz
Output resistance 75 ohms
POTS port Two telephone ports
SIP and H.248 protocols
Media stream and signaling stream separation
USB port 1 USB 2.0 port
Possibility to create a network drive based on FT
WLAN IEEE 802.11 b/g/n
2 x 2 MIMO
Antenna gain: 2 x 2 dBi antenna
WMM
Multiple SSIDs
WPS
Radio interface speed: 300 Mb/s
Connection type 1x SC/UPC
Physical characteristics
Dimensions 220 mm x 160 mm x 32 mm
Weight approximately 400 g
Operating temperature 0 to 40 degrees C
Operaring humidity 5%-95% RH non-condensing
Power input 100 - 240 V AC, 50-60 Hz
System power supply 11 - 14 V DC, 2 A
Static power consumption 7,5W
LEDs POWER/PON/LOS/LAN/TEL/USB/WLAN/WPS/CATV
Functionality
Multicast features IGMP V2 and V3 snooping
IGMP proxy
Wi-Fi multiemission services
Management functions OMCI/Web UI/TR069
Dual-system software
backup and rollback
Routing features NAT function
Internet, IPTV and VoIP are automatically assigned to ONT ports
Virtual server, triggering port, DMZ and DDNS

Support

Technical Specification

Technical specification HG8247H Download
