Extralink CAT5E FTP (F/UTP) Outdoor with gel | Twisted pair | 305M

Extralink CAT5E FTP

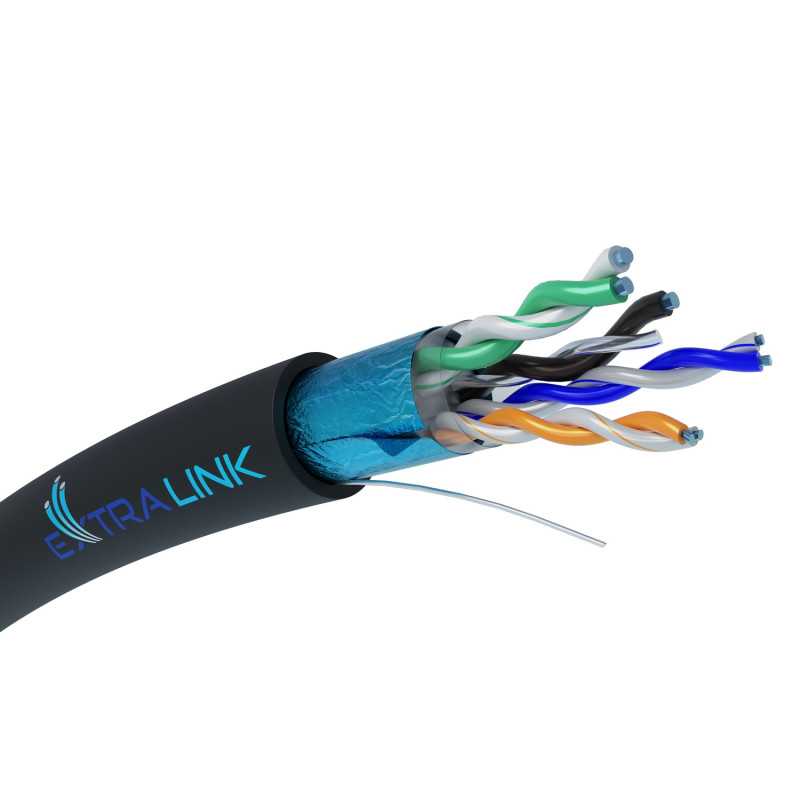

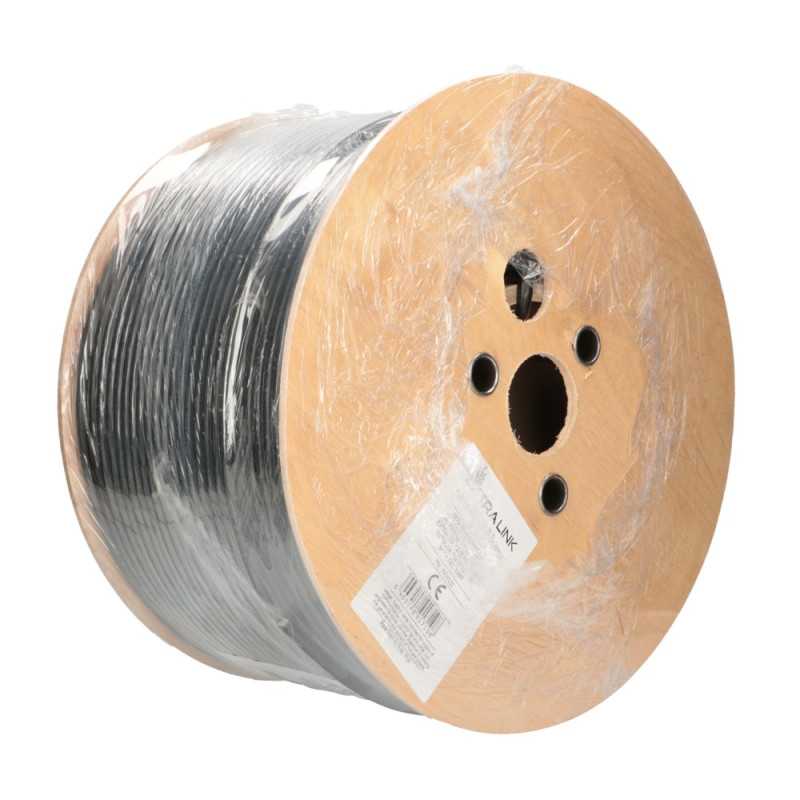

It is an ICT cable mounted on spools. The conductor is a soft copper wire. Twisted together the two wires form the core of the cable. It consists of four core pairs wrapped with water blocking tape. This tape provides effective protection against moisture. It is used for outdoor installation in telephone ducts, mines and collectors, on the walls of buildings with increased electromagnetic impact. It can be mounted in the temperatures from -15°C to +60°C. After mounting, however, the range increases and is from -50°C to +60°C. It works on frequencies up to 250 MHz.

Main Features:

• Core sheath: aluminium polymer film
• Sheath: PE, 0.6 mm thick, nominal cable Ř 7.8 mm
• Copper tinned contact wire
• Durable material
• Insulation: HDPE
• Crossbar: HDPE, 4x4 mm
• Tensile stress ≤ 85 N
• Insulation resistance GOhm / km ≥ 5
• Test voltage between conductors kV 2.5

Transmission characteristics at 20 °C
