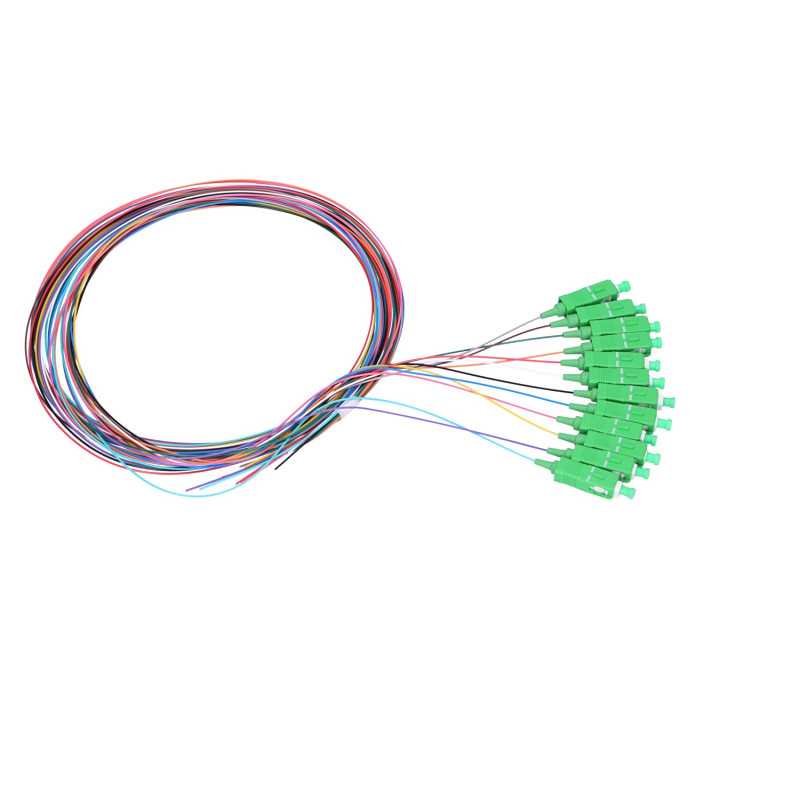

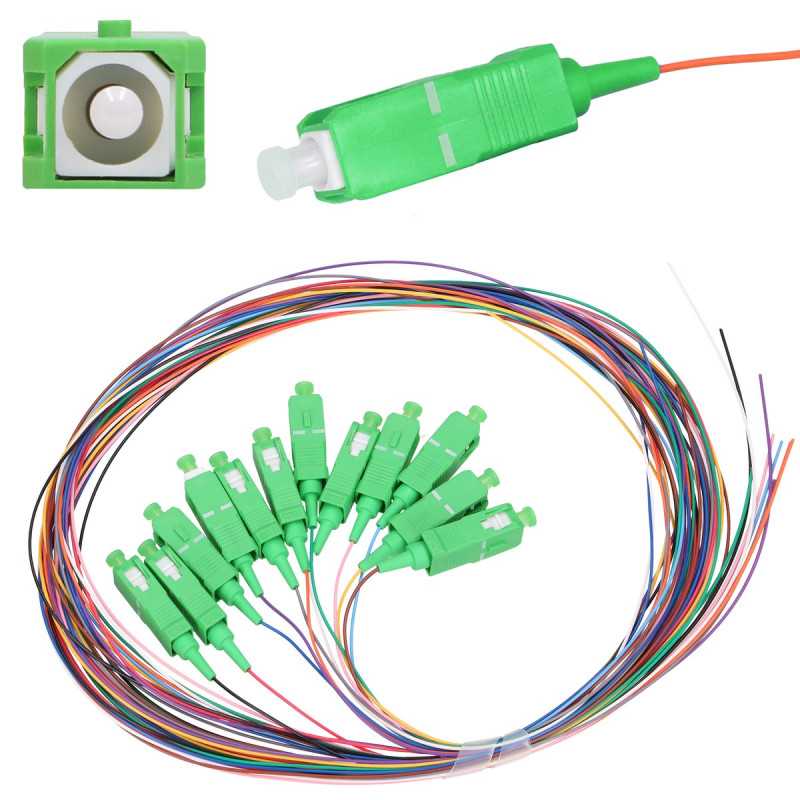

Extralink SC/APC | Pigtail set | Single mode, 900um, G.657A1, 1,5m, 12 pcs, 12 colours
EAN: 5902560360349
Reference: EX.0349
27.06 zł gross 22,00 zł netto
Warranty and service support
Available options and delivery cost
Same-day shipping
Payments methods
Pigtails - set of 12 SC/APC SM G.657A1, 12 colours
This pigtail from Extralink with SC/APC connectors is made on a single-mode G.657A1 fiber, which is dedicated for FTTx technology. This fiber is characterized by reduced bending radius, without increasing attenuation. This is a very important feature during the construction of FTTx networks due to the large number of changes of optical line direction and because of the small size of cabinets and distribution boxes. Pigtail is used mainly in client cable ends in sockets and in splitter points.
Fiber mode structure Single-mode
Cable length 1.5 m
Operating temperature (T-T) -40 - 85 °C
Cord diameter 0.9 mm
Return loss 60 decibel
Insertion loss 0.15 decibel
Sheath material Polyvinyl chloride (PVC)
Connector polish type APC
Product colour Multicolour
Connector 2 gender No
Connector 1 gender Male
Fibre optic type G.657.A1
Cable type FTTH
