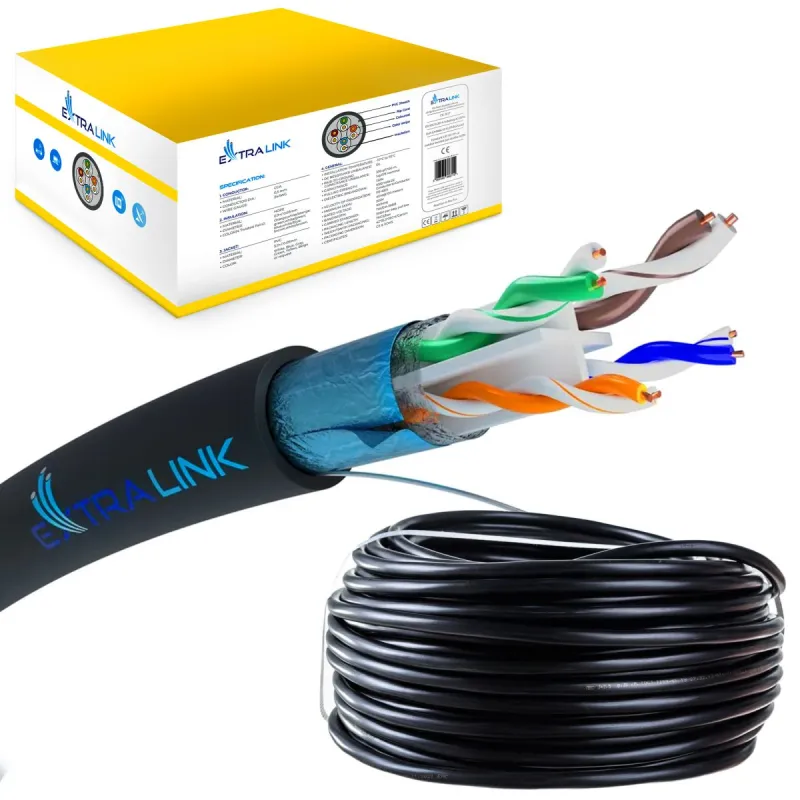

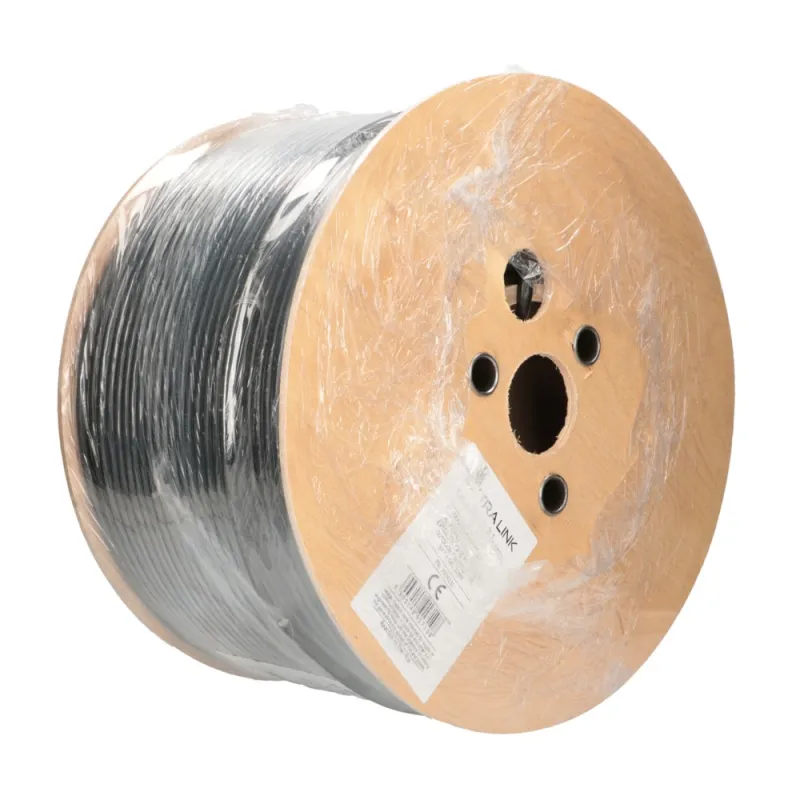

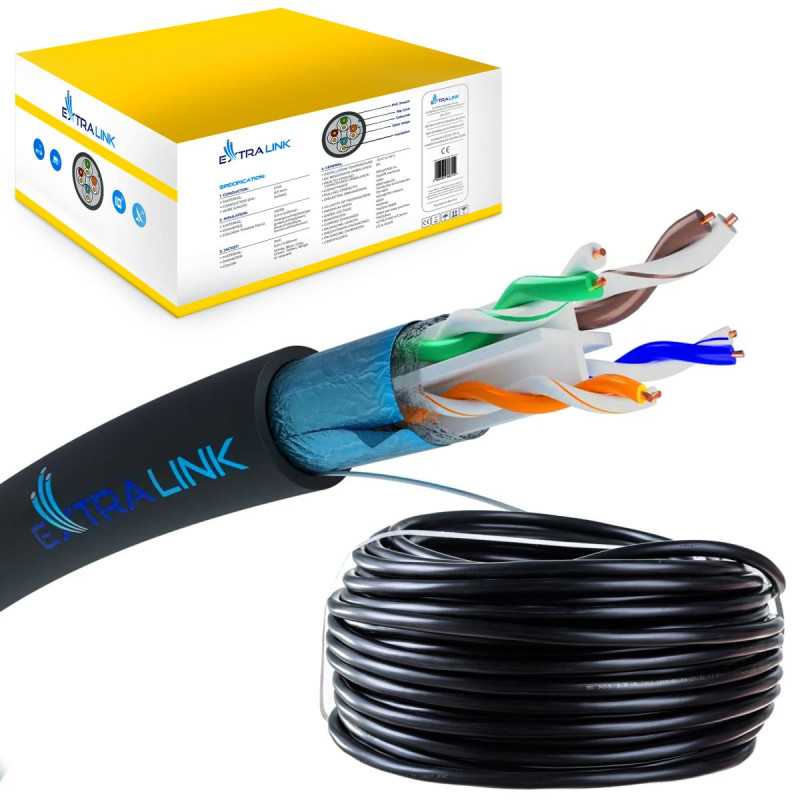

Extralink CAT6 FTP (F/UTP) Outdoor with gel Twisted pair 305M

EXTRALINK CAT6 FTP

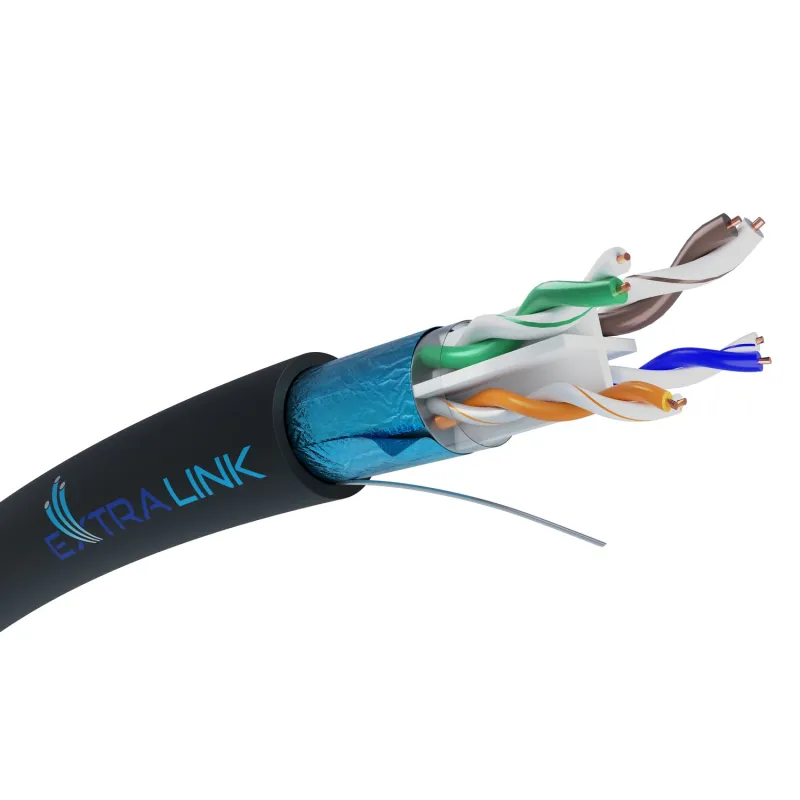

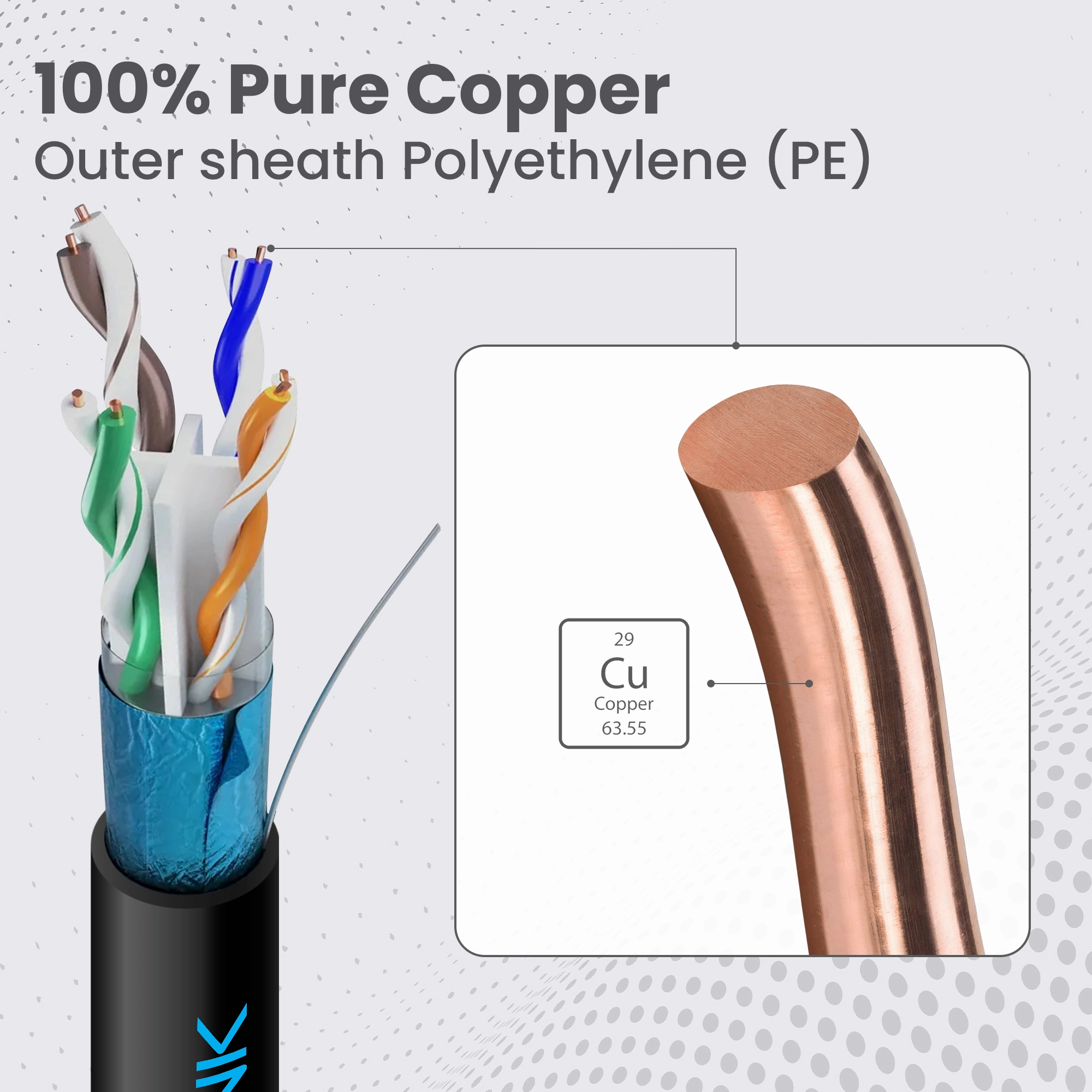

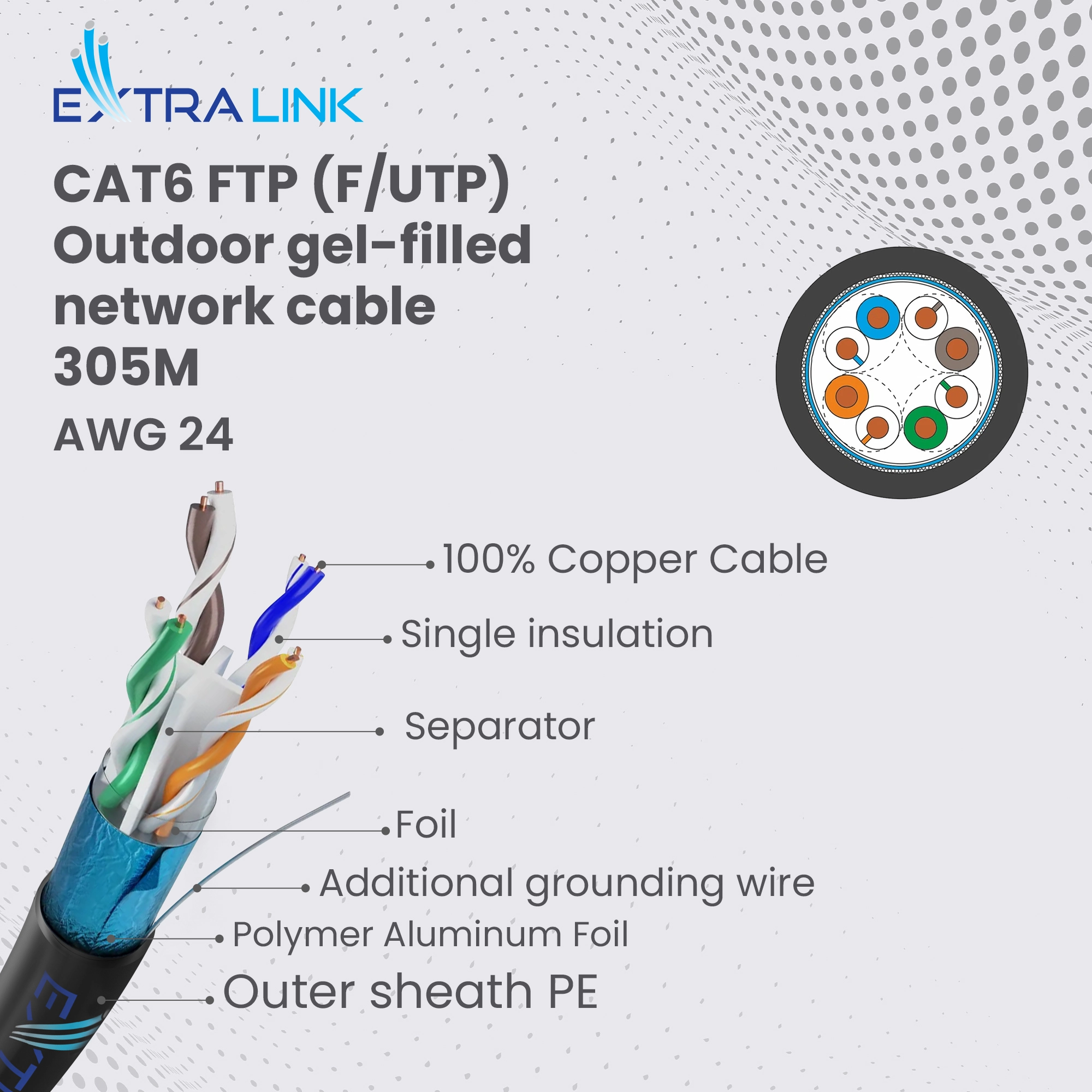

Copper twisted pair cat. 6 F/UTP 4PR 23/1 water resistant cable for outdoor applications. Four pairs of twisted copper wires, colour coded, protected with waterproof tape, screened in PE sheath. The cable complies with many standards - cabling requirements of ISO/IEC 11801-1, EN 50173-1, ANSI/TIA-568-C.2 and cables IEC 61156-5, EN 50288-6-1.

Application of CAT.6 F/UTP 4PR 23/1 AWG PE cable

Cables in this category with moisture protection are suitable for outdoor installation in telephone ducts, collectors, and on building walls under conditions of increased electromagnetic influence. The construction of the cable, including the water blocking tape provides moisture protection in outdoor applications. The cable operates at frequencies up to 250 MHz. It is compatible with PBX, V.11, X.21, ISDN, Ethernet (10Base-T), ATM-25/52/155 Mbit/s, 100VG-AnyLAN, Fast Ethernet (100BASE-TX), Token Ring 16/100 Mbit/s, Firewire 100 Mbit/s, 1000BASE-T, 2.5GBASE-T, 5GBASE-T, 10GBASE-T, HDBaseT, PoE, PoE+, PoE++. The cable has good mechanical properties, electrical characteristics and wide operating temperature range:

• During installation, a bending radius ≥ 10 cable diameters, temperature from -15 °C to +60 °C<

• After installation, bending radius ≥ 4 cable diameters, temperature from -50 °C to +60 °C

• Tensile stress ≤ 85 N.
