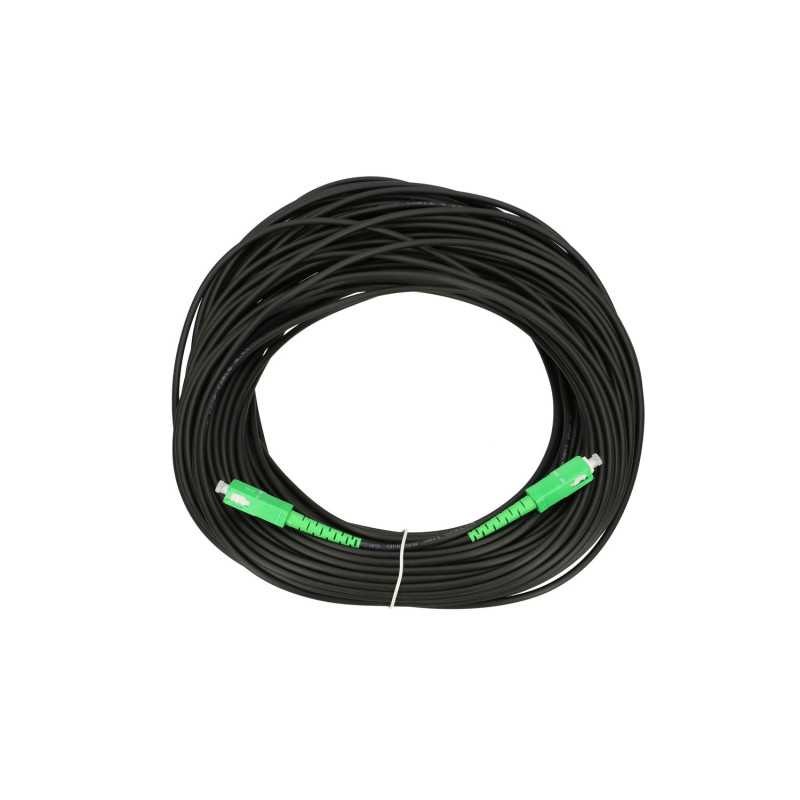

Extralink SC/APC-SC/APC | Patchcord | Round, drop, single mode, Simplex, G.657A2, 50m
EAN: 5903148913360
Reference: EX.13360
45.01 zł gross 36,59 zł netto
Warranty and service support
Available options and delivery cost
Same-day shipping
Payments methods

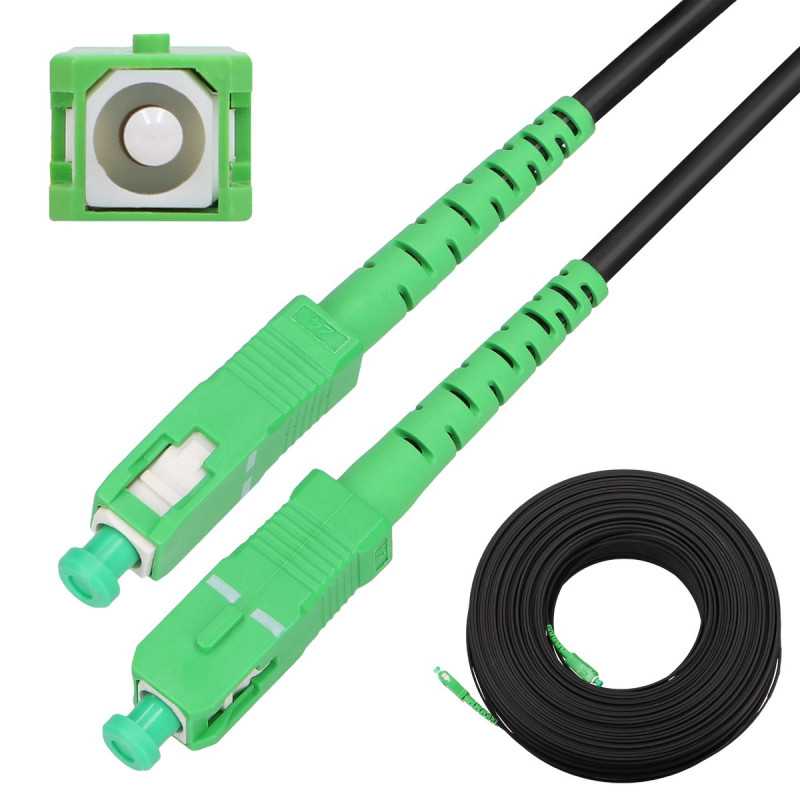

Patchcord SC/APC-SC/APC SM G.657A2 SIMPLEX 50M ROUND DROP
Patchcord one mode with a length of 50 meters, a cable diameter of 3 mm, terminated with SC/APC-SC/APC connectors, is used for networking optical equipment such as switches or converters. Patchcords are also widely used in FTTH networks to connect OLT and ONU/ONT type devices.
Patchcord features
- Low attenuation
- Operation over a wide temperature range
- Repeatability of measurements
- Repeatability of parameters
Purpose
- FTTH networks
- LAN, WAN
- WDM systems
Regulatory Approvals CE, RoHs
Test protocol included Yes
Connector material Ceramic
Fiber mode structure Single-mode
Cable length 50 m
Full duplex No
Plug and Play Yes
Package type Bag
Cord diameter 3 mm
Sheath material Polyvinyl chloride (PVC)
Connector polish type APC
Product colour Black
Connector 2 gender Male
Connector 1 gender Male
Fibre optic type G.657.A2
Cable type FTTH
Connector 2 SC
Connector 1 SC
Optical patchcord connectors SC/APC-SC/APC
