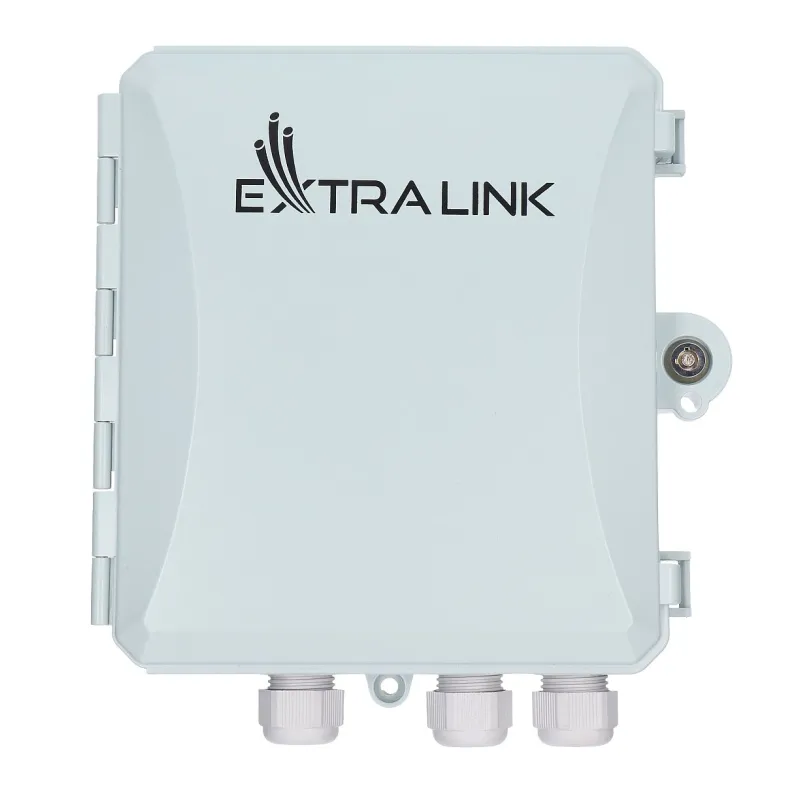

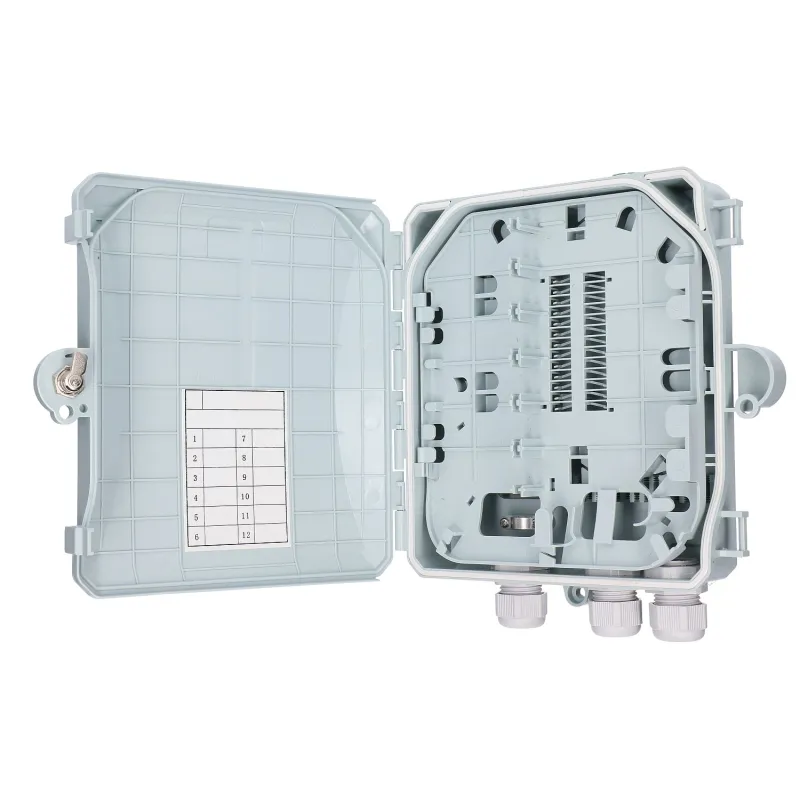

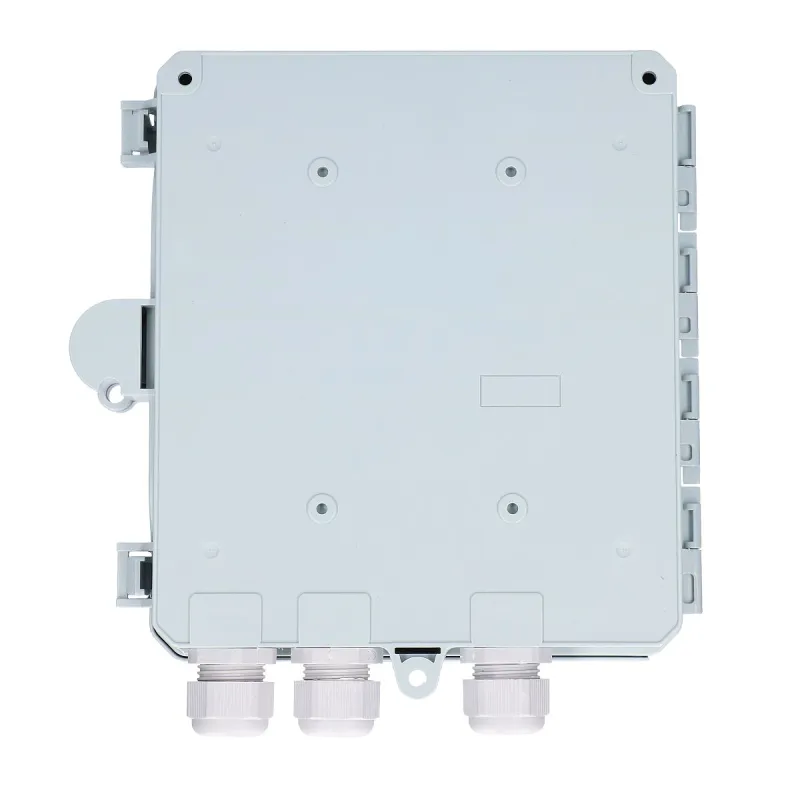

Extralink Diana Fiber optic distribution box 12 core

EXTRALINK DIANA 12 CORE fibre optic enclosure box

EXTRALINK BETTY 4 CORE serves as an end point of the power cable that connects to the drop cable in the FTTx communication network system. The fiber optic closure box can be used for fiber linking, splitting and distribution. It also provides solid protection and gives the possibility to manage the FTTx network building.

Features:

Features:

• Fully enclosed structure
• Material: PC+ABS, waterproof, dustproof, ageing resistant, protection class up to IP65
• Power cord and drop cable mounting, fiber linking, mounting, storage and distribution in one
• Cables, pigtails, crossover cables run on their own path
• Installation of the SC-type adapter
• Easy maintenance
• The control panel can be inverted and the power cable is articulated

Technical data on lightning resistance

The grounding device is insulated with a housing, the insulation resistance is not less than 2 104 M/500V (DC); IR2 104M/500V. The static voltage between the grounding device and the housing is not less than 3000V(DC)/min, without puncture; U3000V.
