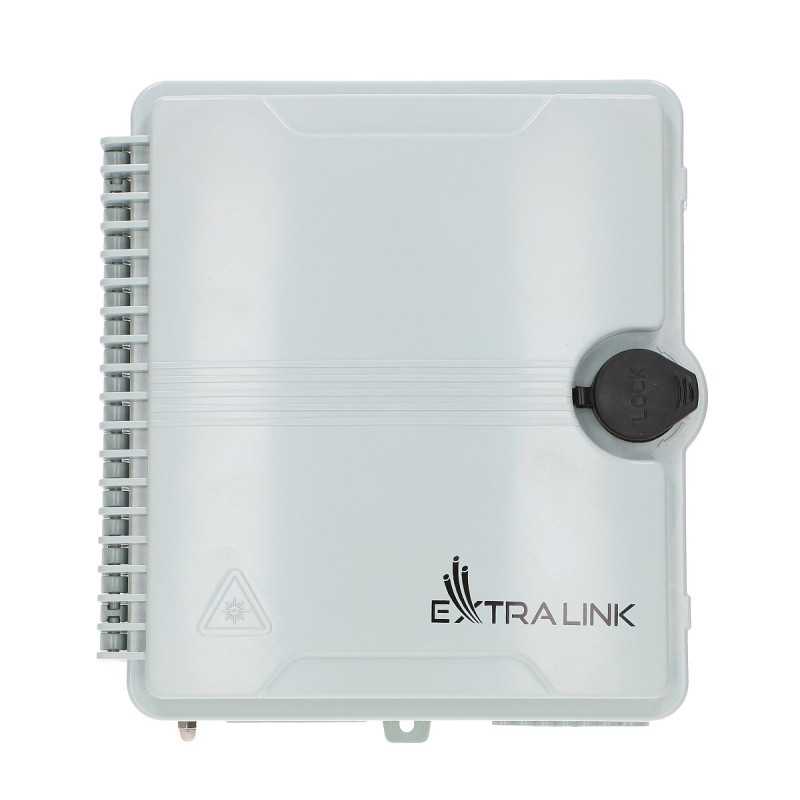

EXTRALINK DORIS 12 CORE fiber optic box

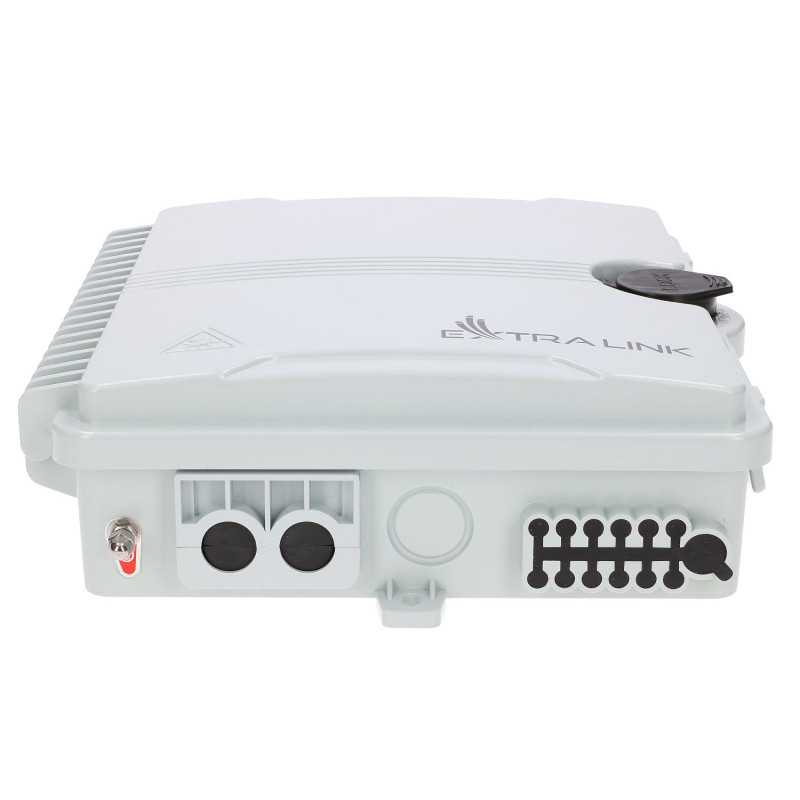

EXTRALINK Doris 12 CORE serves as an end point of the bus cable for connection to the drop cable in the FTTx communication network system. This box enables the securing of connections and distribution of client cables. The box has two midspan inputs and one input with a cable gland.

Features:

• Total enclosed structure
• Material: PC+ABS, waterproof, dustproof, ageing resistant, protection class up to IP65

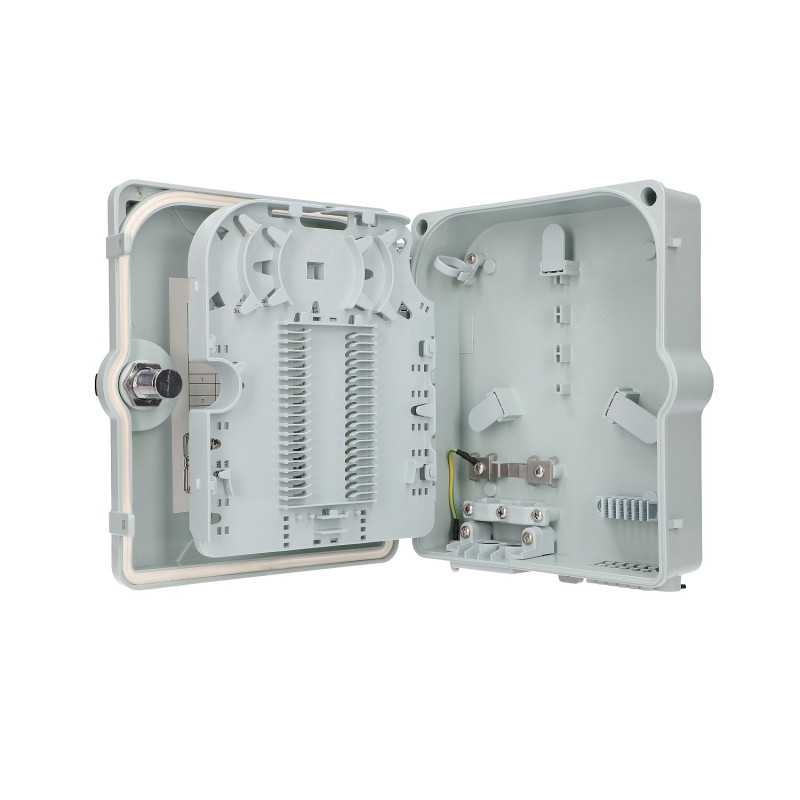

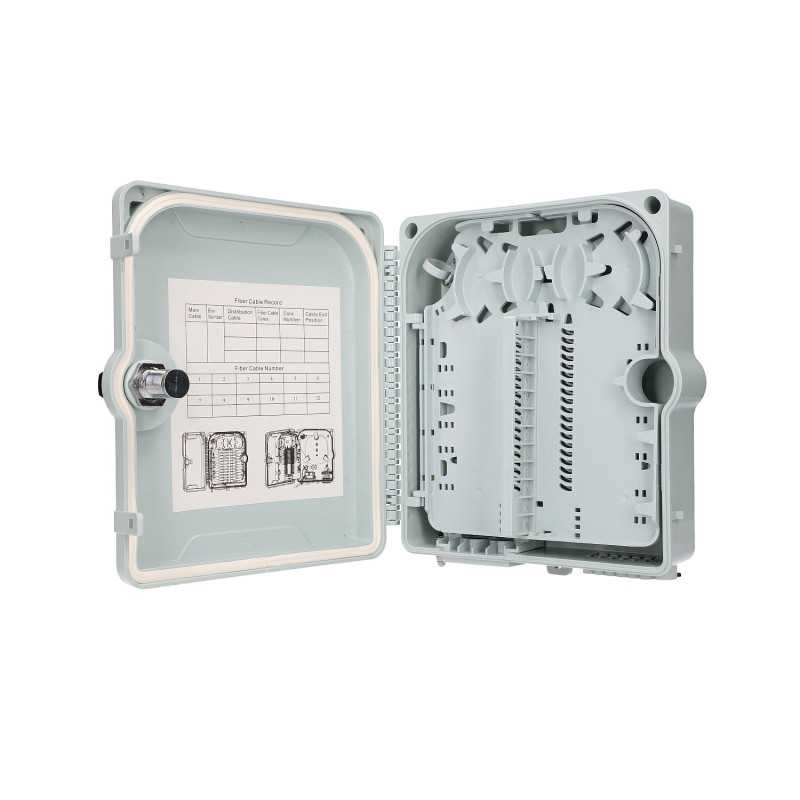

• Power cord and drop cable mounting, fiber linking, mounting, storage and distribution in one
• Cables, pigtails, crossover cables run on their own path without disturbing each other
• Installation of the SC-type adapter
• Easy maintenance
• The control panel can be inverted, the power cable can be placed in an articulated manner
• Maximum capacity is 24 fibres

Technical data on lightning resistance

The earthing device is insulated with a housing, the insulation resistance is not less than 1000 M/500V (DC); IR 1000M/500V. The static voltage between the earthing device and the housing is not less than 3000V(DC)/min, without any puncture; U3000V
