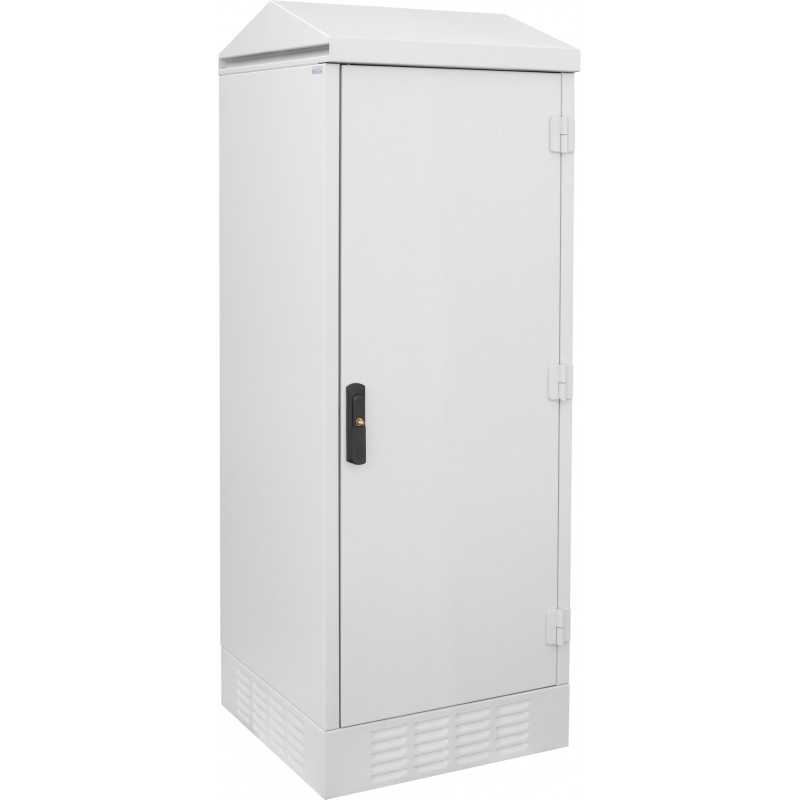

Mantar SZK-30U 19'' 169/61/61 AC | Cabinet | for mounting on the drain SK-1, with air conditioner

Mantar cabinet SZK-30U 19" 169/61/61

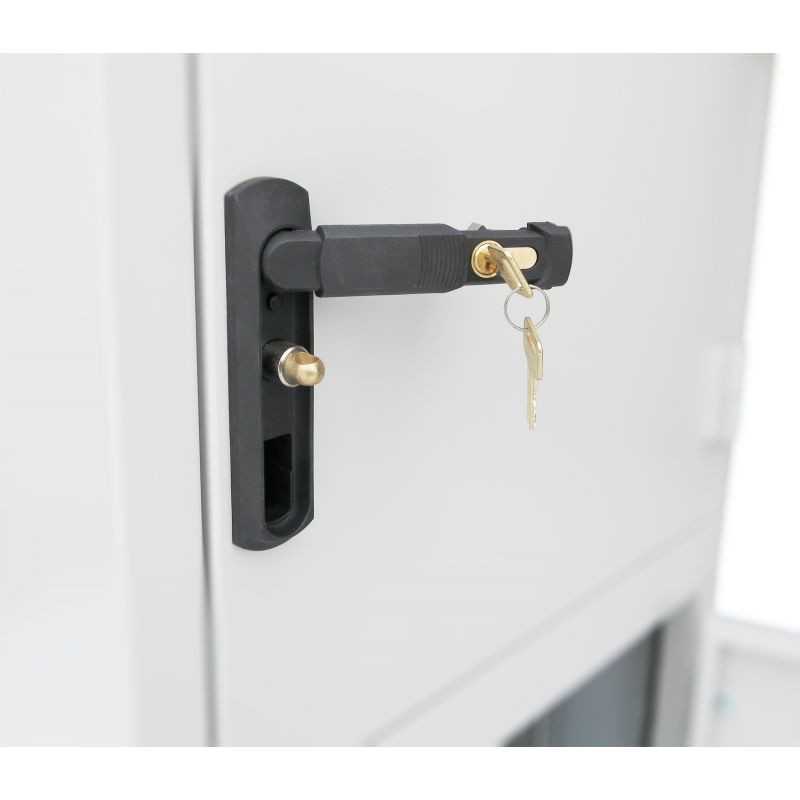

Mantar cabinet SZK-30U 19" 169/61/61 with air conditioner, to be mounted on the SK-1 channel sump. External cabinet equipped with air conditioner of 640W. It has a double sheath made of sheet metal (internal sheet metal wall with Magnelis coating 1 mm thick), which is a mechanical shield for telecommunication equipment. Equipped with a 3-point locking system with a pin for the padlock, tilt handle, lock insert and 2 pairs of 19" rack handles. - with adjustable distance between the front and rear pair from 290 mm to 420 mm; the distance between the first pair of racks and the front of the door is from 55 mm to 125 mm.

Features:

• Adapted for installation on a sewer sump SK- 1
• Made of sheet metal with Magnelis coating 1.5 mm thick
• Degree of protection IP65, mechanical resistance IK10
• Plinth made of 2 mm thick sheet metal with Magnelis coating 150 mm high, ventilation holes covered with filter mat on the sides
• Powder coated in colour: RAL7035 - light grey, thick structure

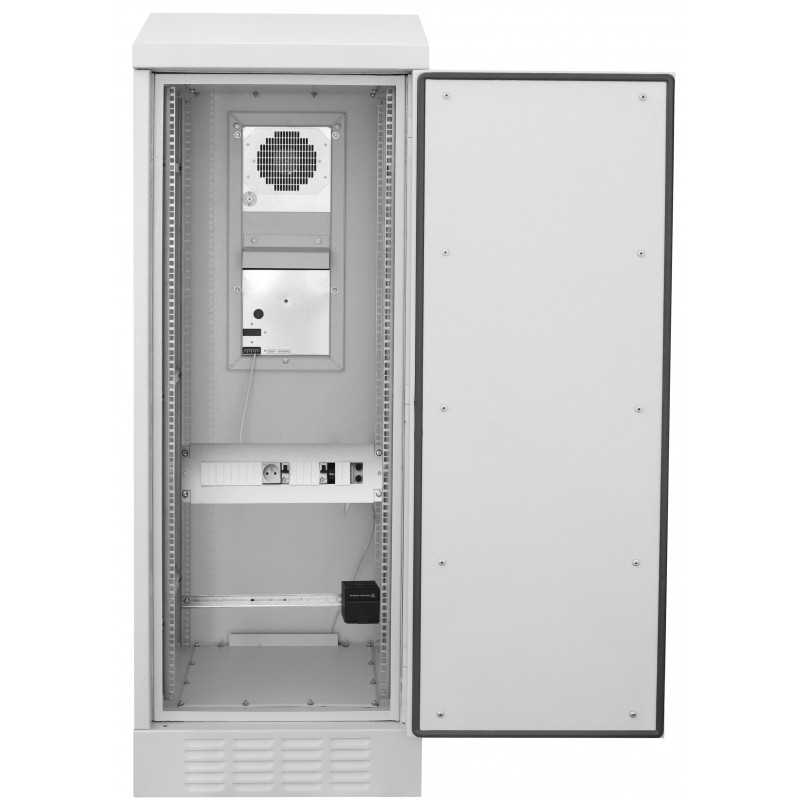

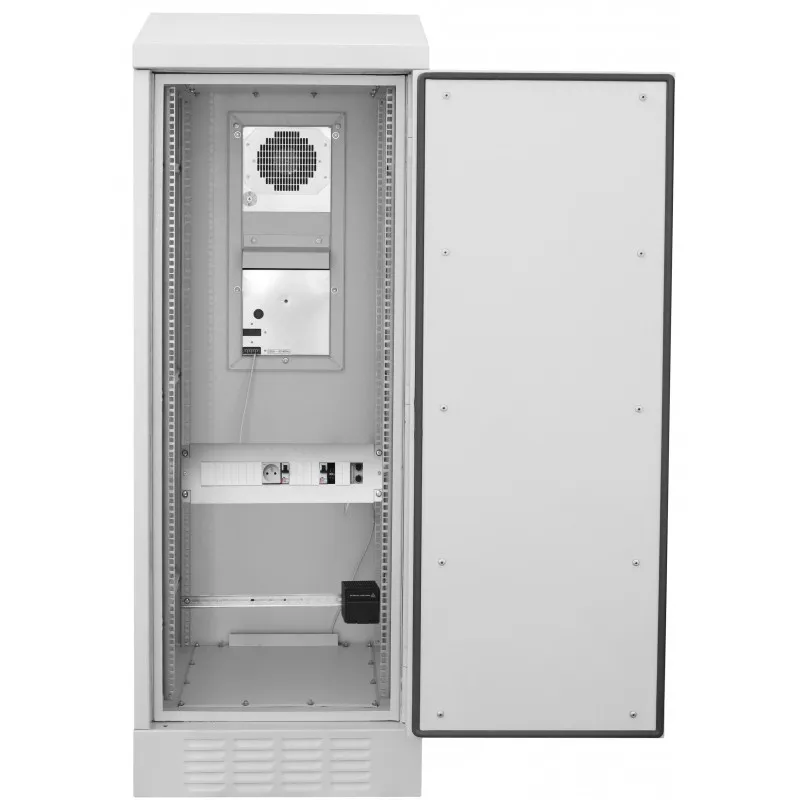

The cabinet is equipped as standard:

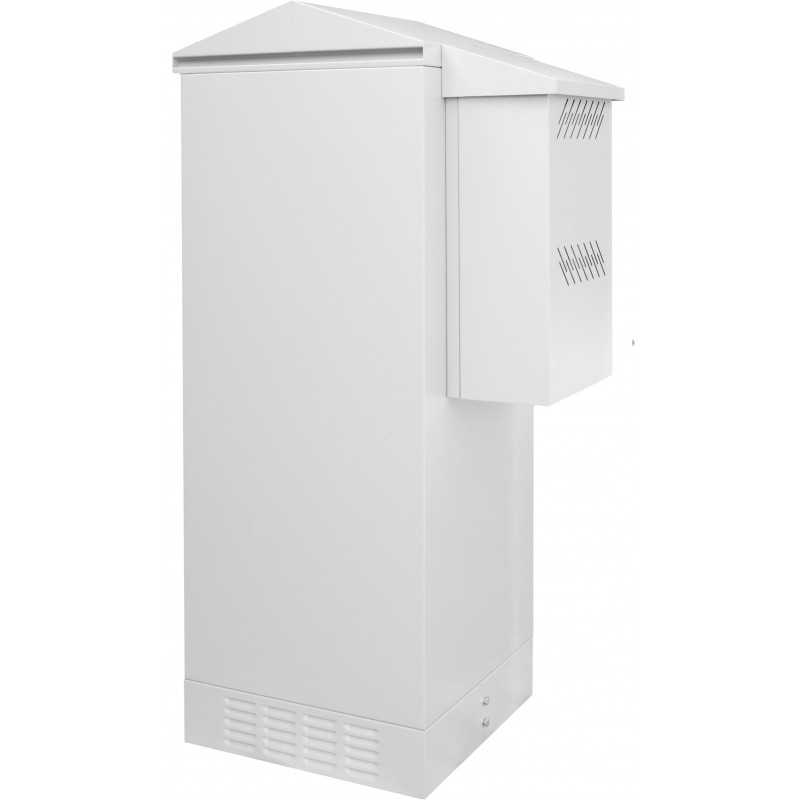

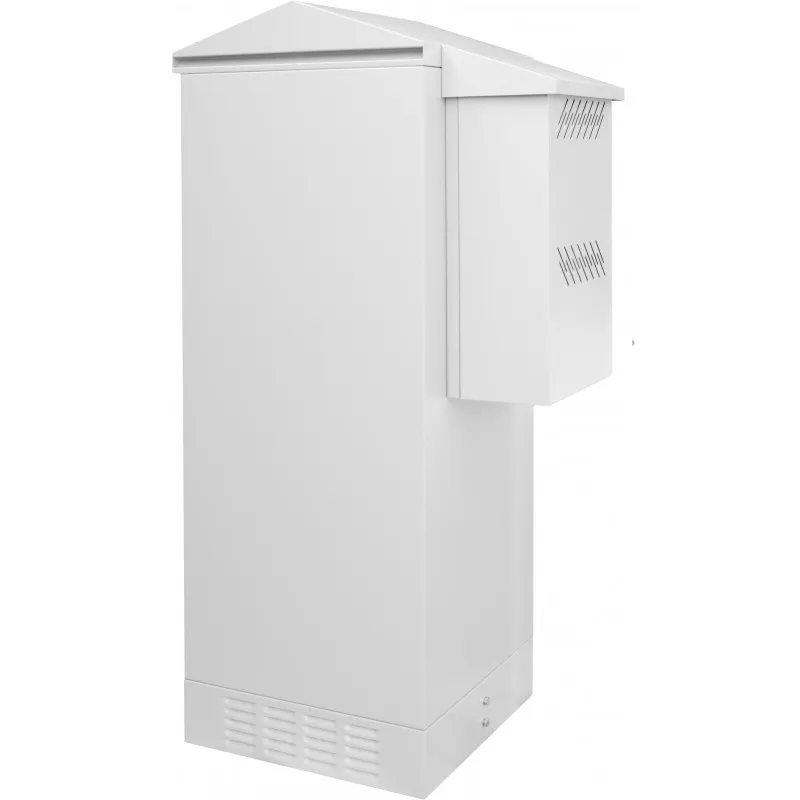

• 640W air conditioner (voltage: 230V) manufacturer: TEXA model: EMO06BM1B
• 3U voltage distribution panel
• heating set consisting of a semiconductor blower CSL028 250W controlled by means of an electronic hygrother ETF 012
• additional thermostat-controlled fans installed in the canopy

Accessories:

• Shelf 19" 2U
• PS 19" 1U 24xSC Simplex/Duplex extension slide
• PS 19" 2U 48xSC Duplex SC Duplex extension
