Mantar RSZ-170/60/20 | Outdoor cabinet | FTTH 144J, depth 200 mm

Mantar outdoor cabinet RSZ-170/60/20 - FTTH 144J

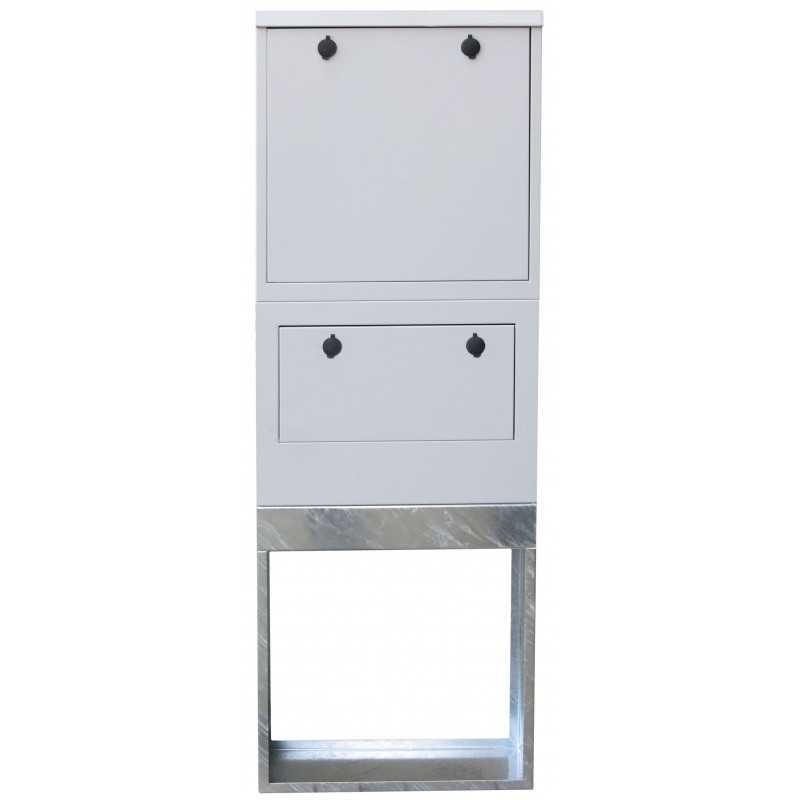

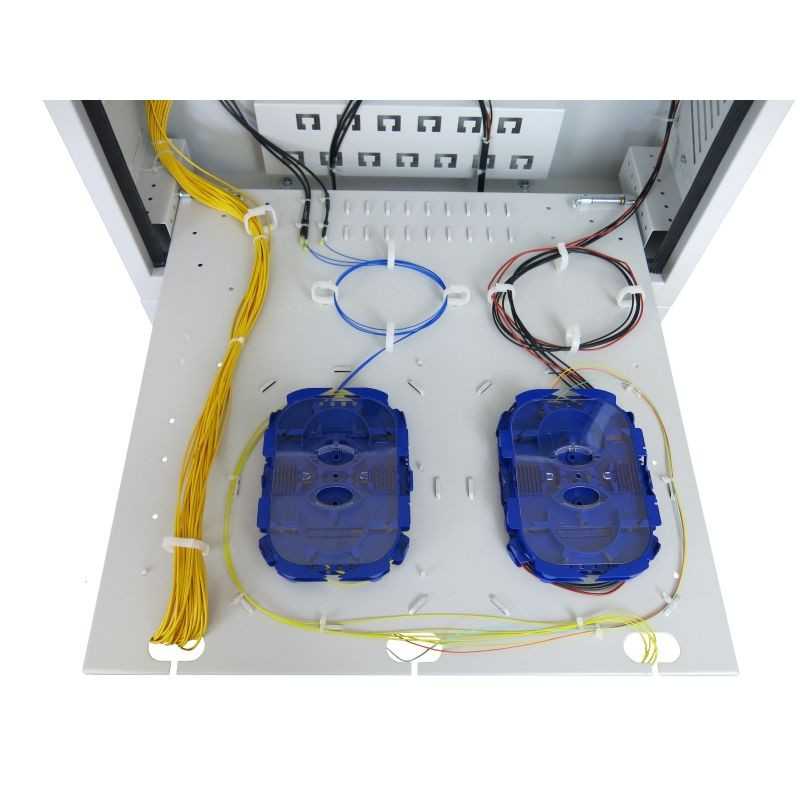

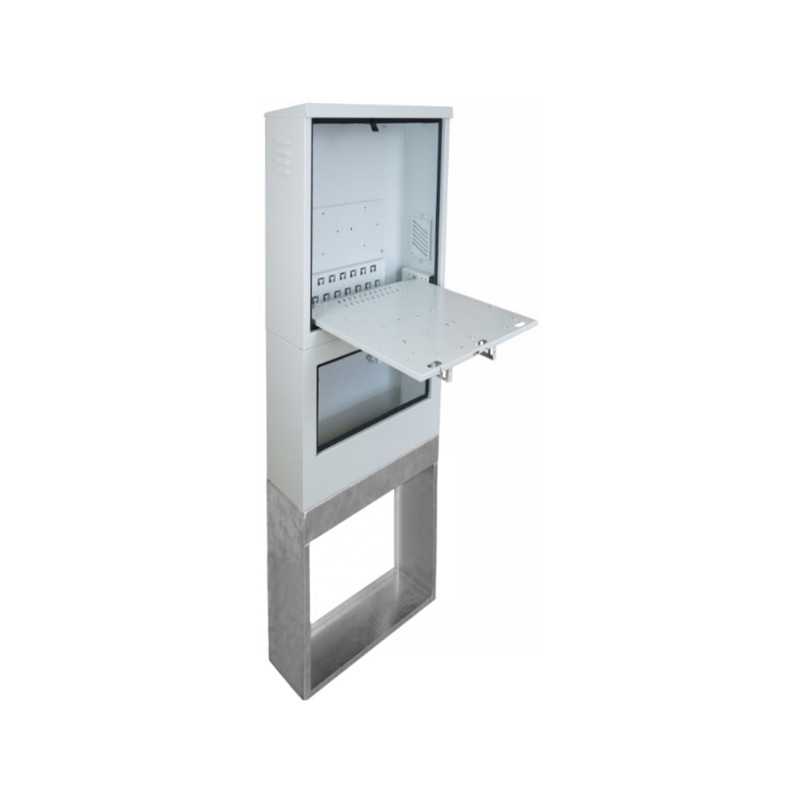

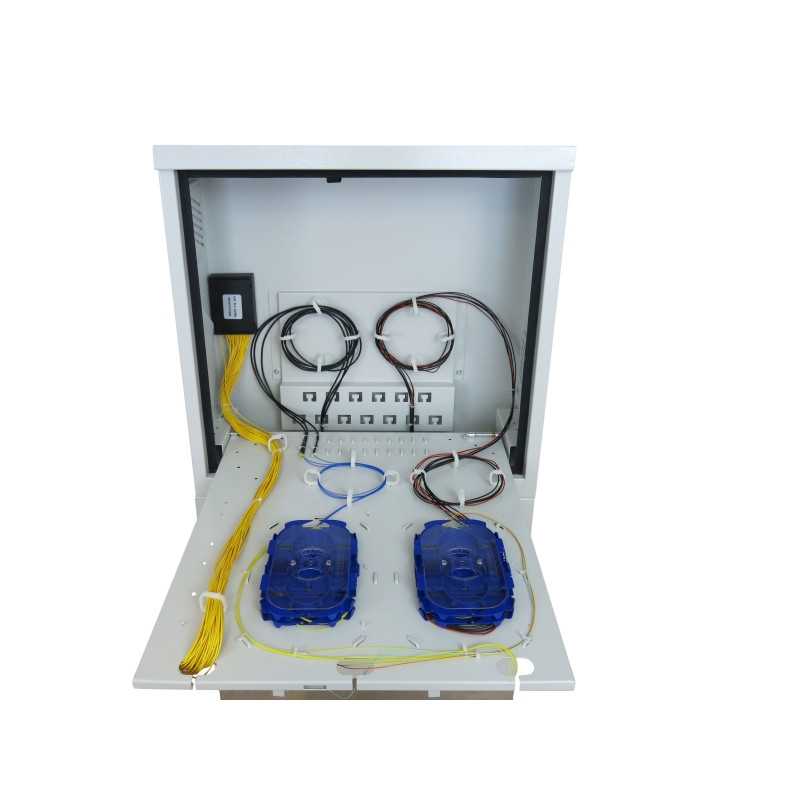

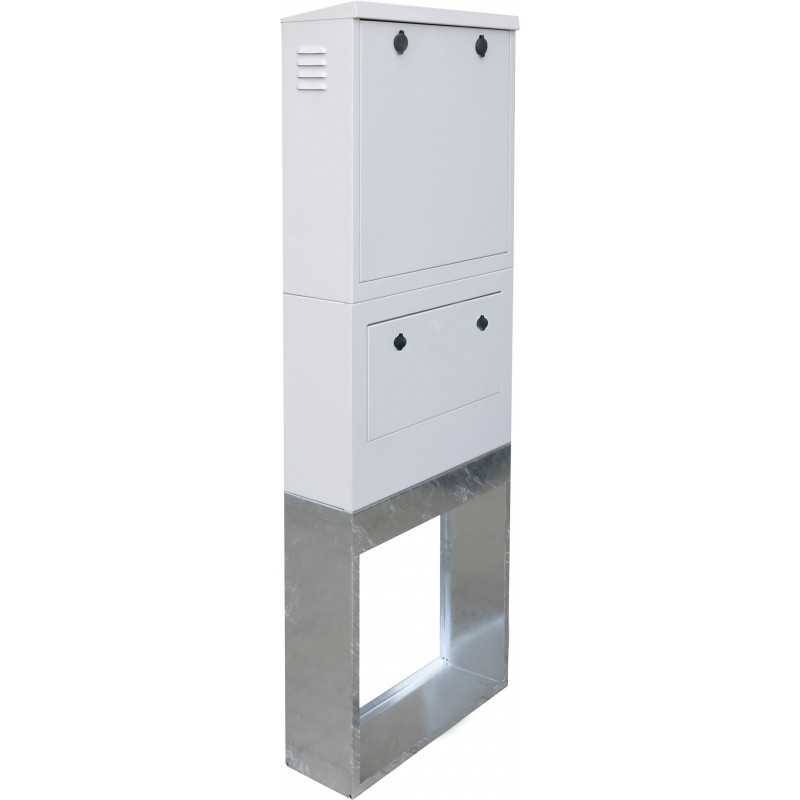

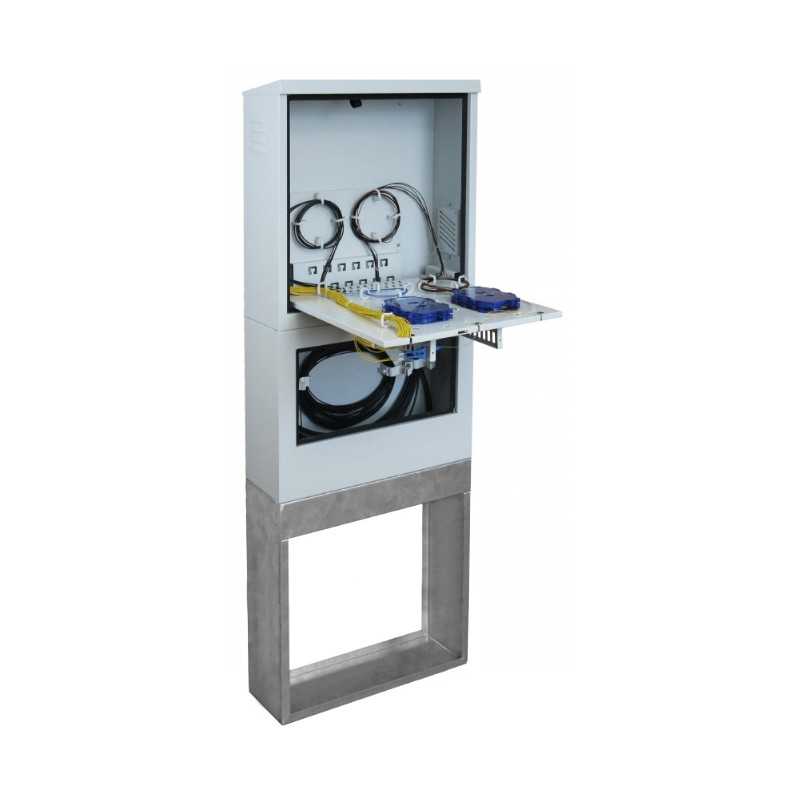

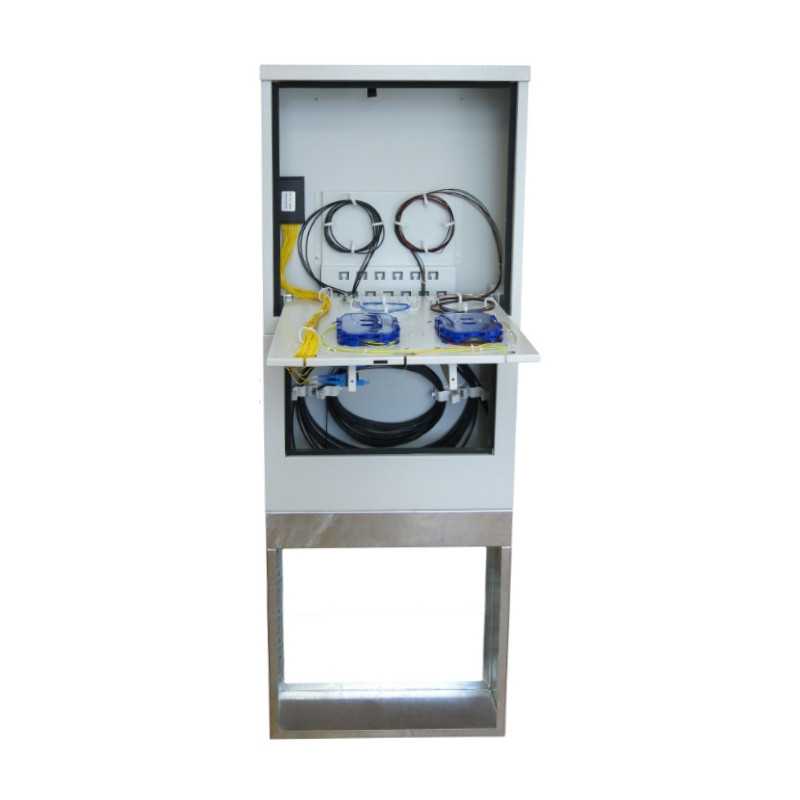

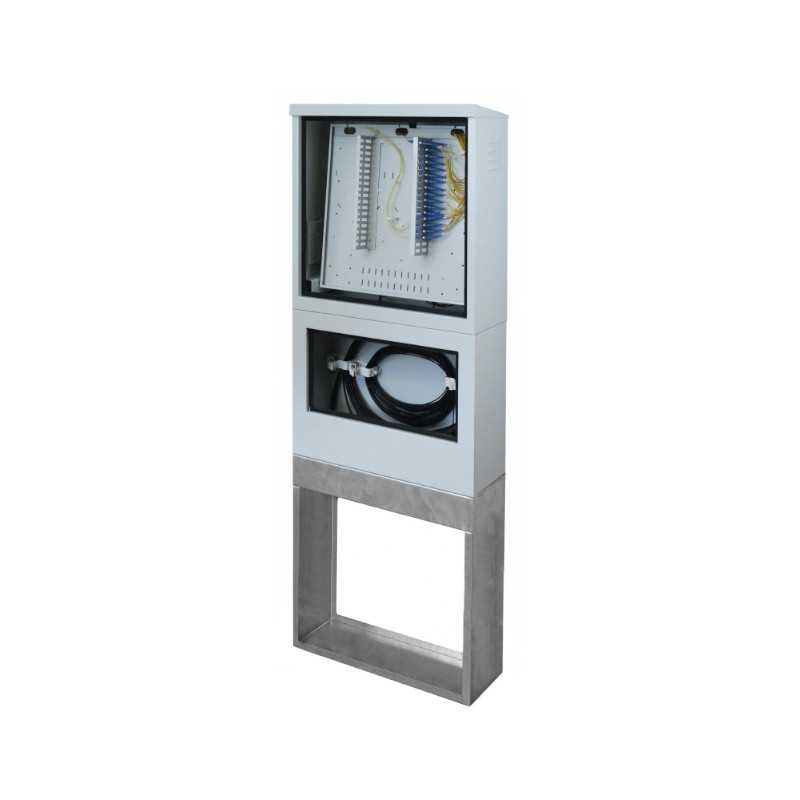

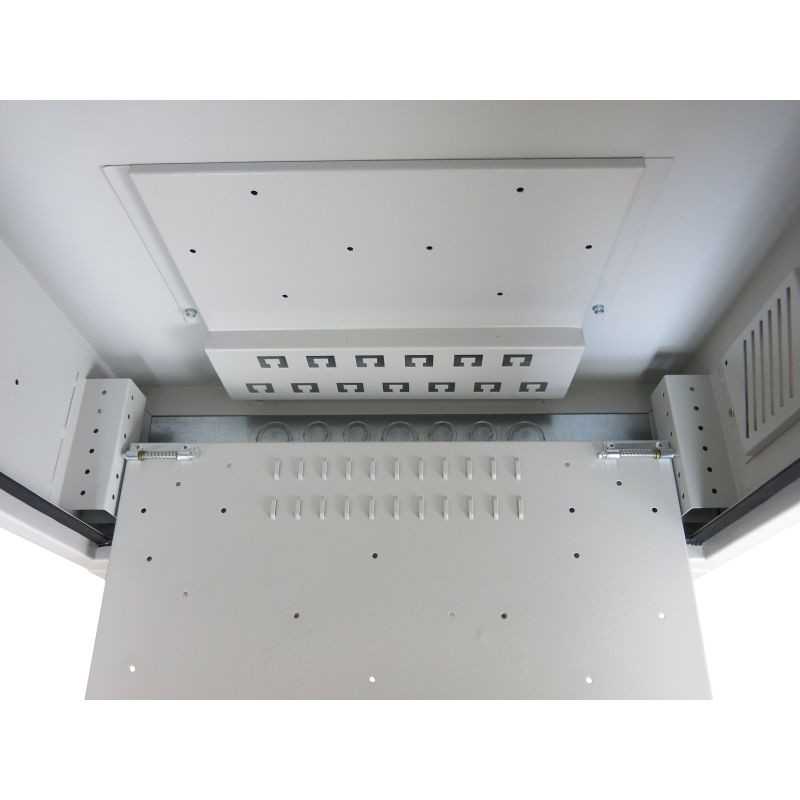

Mantar external cabinet RSZ-170/60/20 - FTTH 144J designed for outdoor installation, for FTTx network. The external walls are made of steel sheet. The cabinet is corrosion resistant, light grey colour. Equipped with a 144J commutation field (72 holes for SC Duplex adapters). It has a tiltable panel with the possibility of disassembly, a separate large supply of cable in the lower part of the cabinet and dedicated space for a splitter in the back of the cabinet. Each door is closed with 2 hermetic cylinder locks (dedicated key code). Note: Fiber optic accessories shown in the pictures are not part of the set!

Features:

• Cabinet made in modular construction
• The pedestal is designed to be installed by digging 60cm deep into the ground.
• The total height of the cabinet after the pedestal has been fixed is 110cm.
• Body made of sheet metal with Magnelis coating 1.0 mm thick, powder coated
• Pedestal made of sheet metal with Magnelis coating 2.0 mm thick
• 5-year warranty on corrosion protection

Accessories:

• weld trays
• adaptors
