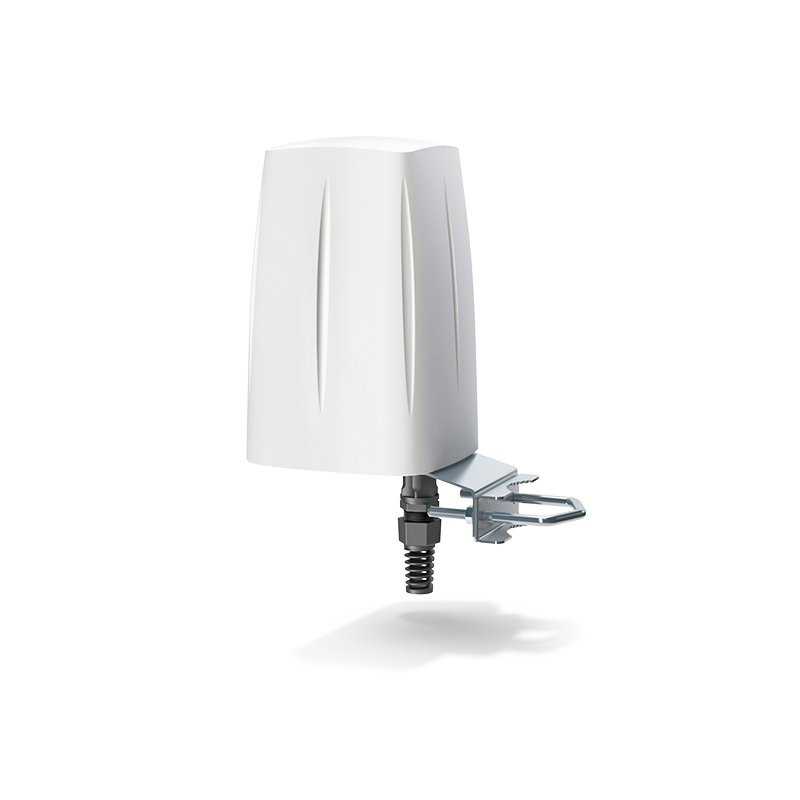

QuWireless QuSpot A500S | 5G Antenna | for Teltonika TRB500
EAN: 5905868601954
Reference: A500S
926.19 zł gross gross / meter 753,00 zł netto gross / piece
Warranty and service support
Available options and delivery cost
Same-day shipping
Payments methods
Compatibility with the Most Popular LTE Bands
The QuSpot A500S antenna operates in the most commonly used LTE bands : 3, 7 and 20. It is designed to build client-side stations that can operate in all available operator bands: LTE/3G 694-960 MHz and 1700-2700 MHz (B3, B7, B20). This provides a reliable and broadband connection, ideal for demanding applications.
Advanced Technical Features
The QuSpot A500S kit includes a PoE splitter to separate data and power from a single Ethernet cable. This solution allows gigabit transfer speeds to be maintained while protecting the LAN port from damage caused by overvoltage, short circuit or improper connection. This innovative approach increases the security and reliability of connections.
Resistance to Outdoor Conditions and Ease of Installation

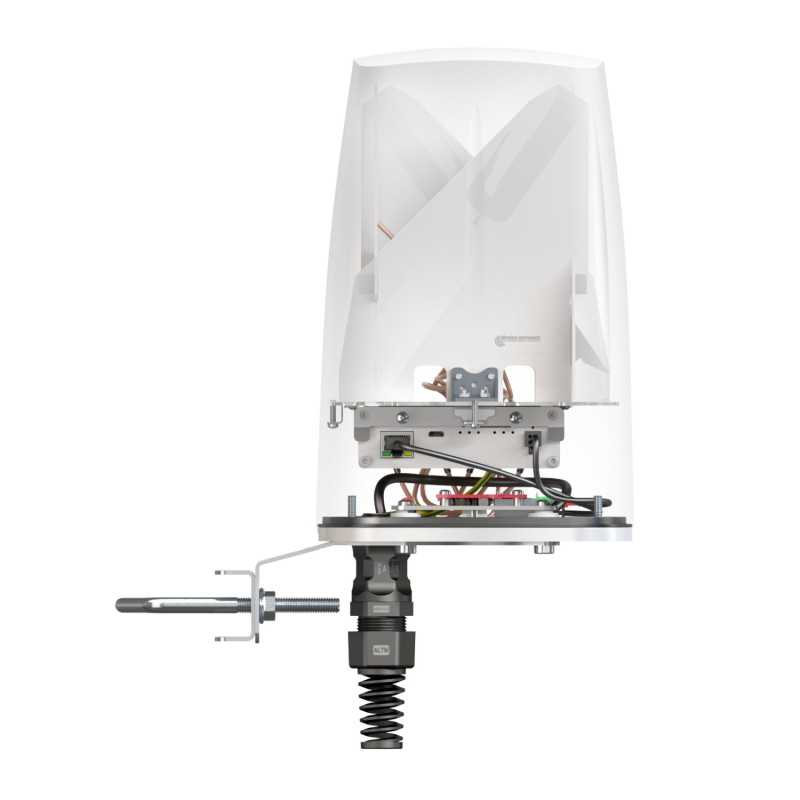

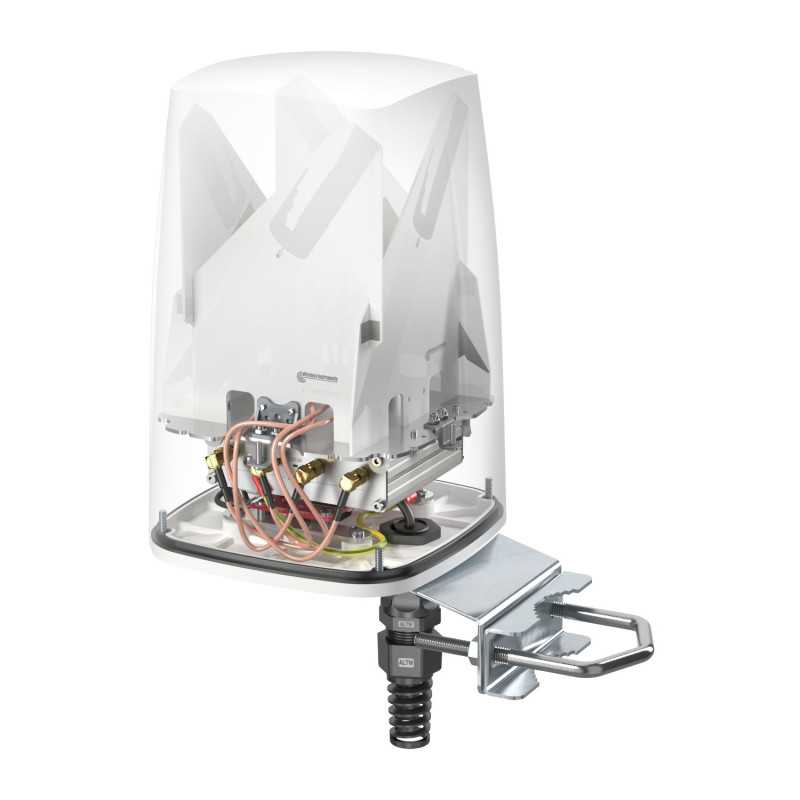

The QuSpot A500S features an outdoor-resistant housing (IP67), which guarantees reliability in all weather conditions. Mounting the antenna is simple thanks to the included mounting system, which allows easy attachment to a mast. In addition, the antenna has an installation space for mounting a network gateway, and the electronics are powered by passive PoE, which increases flexibility and ease of configuration.
QUWIRELESS QUSPOT antenna dedicated only to the TELTONIKA TRB500. The router is sold separately.
Height 240 mm
Antenna type Omni-directional antenna
Width 160 mm
Depth 160 mm
Antenna gain level (max) 4.5 gain
Impedance 50 Ω
Country of origin Poland
Operating temperature (T-T) -40 - 75 °C
Mounting Wall/Pole
International Protection (IP) code IP67
Product colour White
Voltage Standing Wave Ratio (VSWR) 2.50
Horizontal beam width 360 °
Vertical beam width 25 °
Polarization Vertical polarization
Gain 2 gain
Antenna connector type PoE/LAN
Watch case material Acrylonitrile butadiene styrene (ABS)
Designation Indoor & outdoor
Product weight 1500 g
