Huawei GPHF C+ | GPON Card | dedicated for MA5800 OLT

Huawei H901GPHF

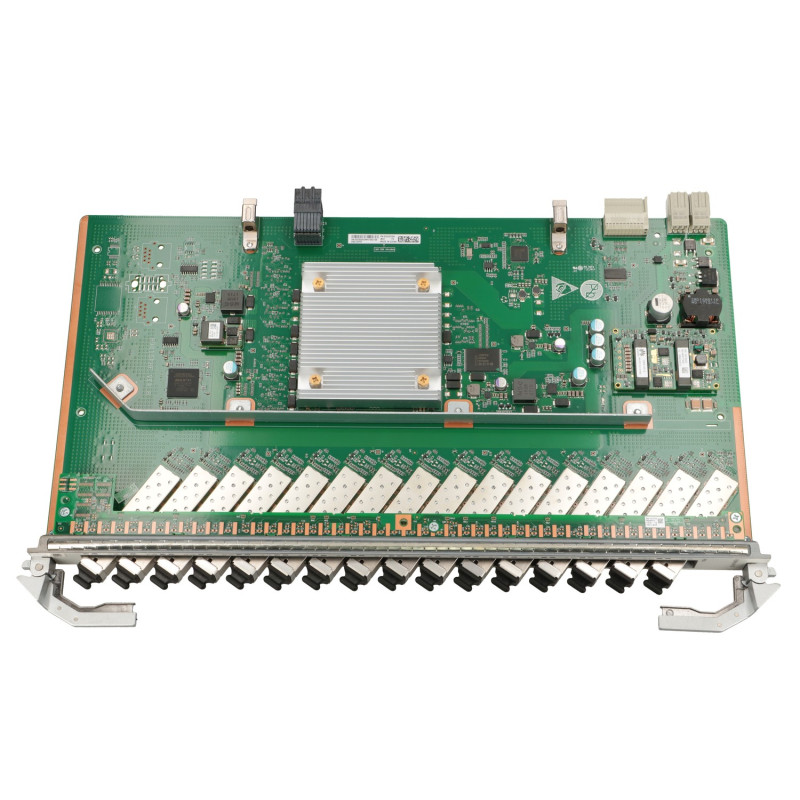

Huawei H901GPHF is a 16-port Huawei NG OLT GPON interface card, providing access to GPON service with ONT. GPHF with inserts (2.5 Gb/s downlink and 1.25 Gb/s uplink). GPHF can get maximum access to 2048 subscriptions. The card has a manual shutdown of idle PON ports, thus preventing power wastage. The board uses 4-level technology HQoS (Hierarchical Quality of Service), and 9216 jumbo frames, which significantly affects the comfort of use.

The H901GPHF supports the following functions and specifications:

-16 GPON SFP ports -Maximum partition coefficient 1: 128 - Bidirectional unidirectional optical modules class B + / C + / C ++ -Received signal strength indicator detection (RSSI) and optical module signal transmission control - ONU-based traffic shaping - Temperature reading and high temperature alarm -Automatic shutdown for high temperatures -Fault correction up and down (FEC) -B/type C protection. -L3VPN and D-CCAP networks -Maximum transmission range 20 km -Falsely detected ONU -GPON port optical power budget -B + class B + optical module with 28.5 dB power budget (used in most cases) -C+ class C + optical module with 32 dB budget (used for long distance transmissions) -C++-class optical module with 35 dB budget (used for long distance transmissions)
