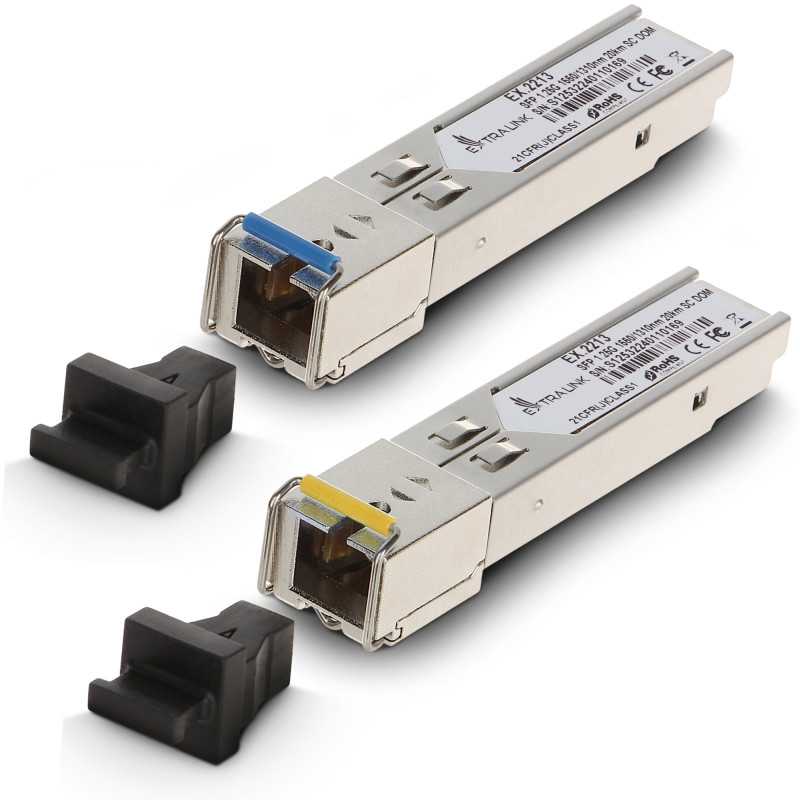

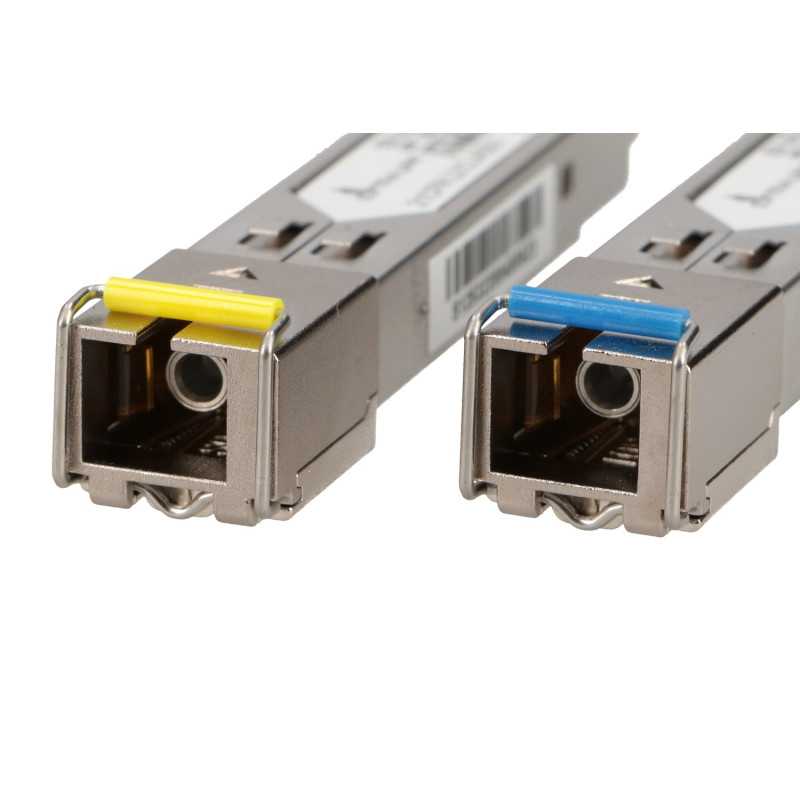

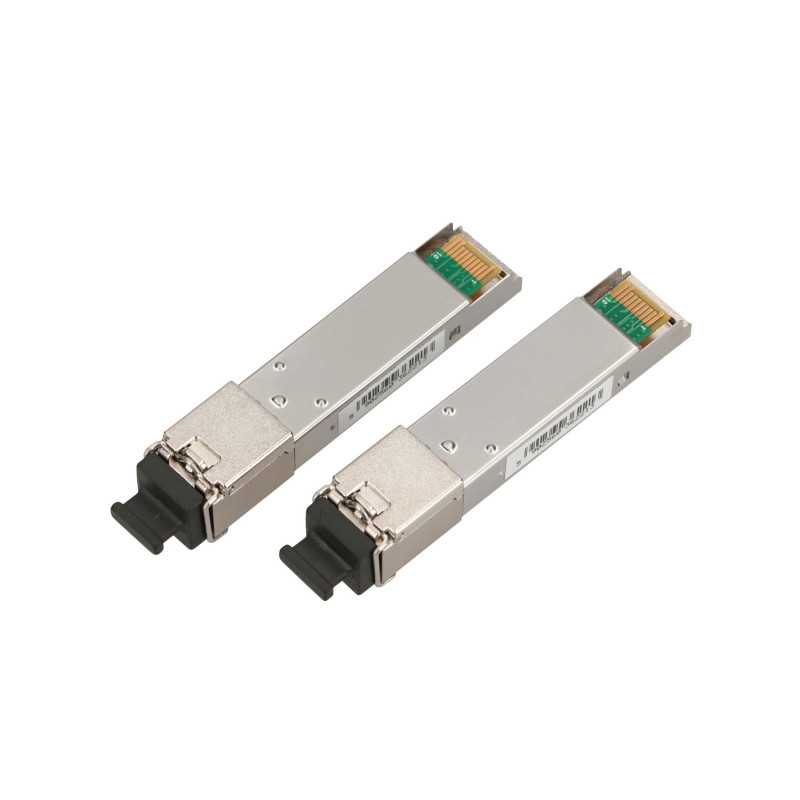

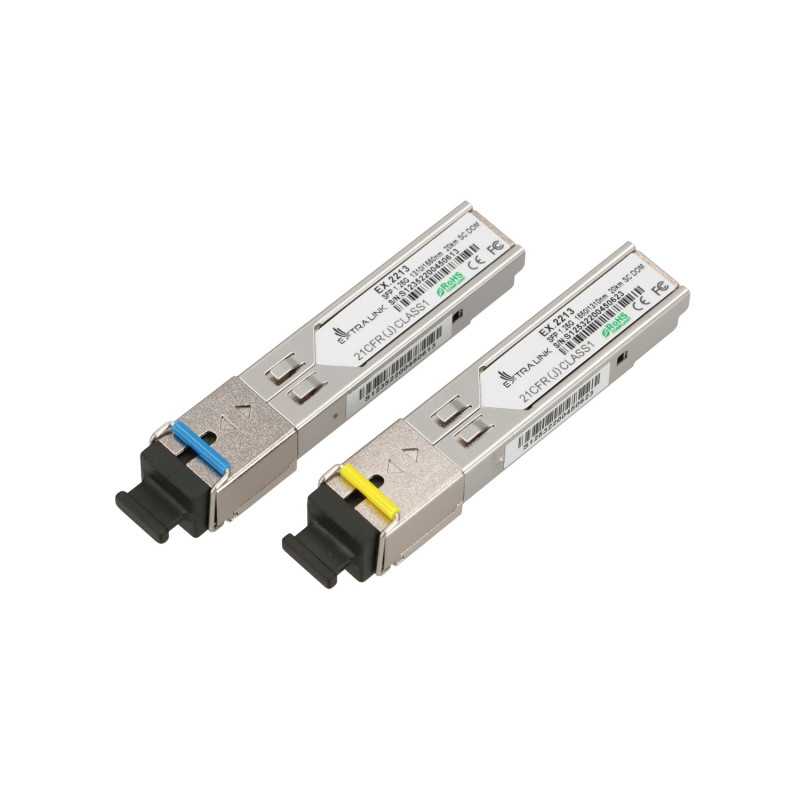

Extralink SFP 1.25G | SFP WDM Module | 1,25Gbps, 1310/1550nm, single mode, 20km, SC, DOM, pair

Set of single-mode SFP modules 1.25G WDM 1310/1550NM SM 20KM SC

Bidirectional SFP modules are high-performance, cost-effective single-mode SFP transceivers supporting data transmission speeds of 1.25 Gbps/1.0625 Gbps and a transmission range of up to 20 km with SMF. The fibre optic SFP module consists of three sections, i.e. an FP laser transmitter, a PIN photodiode integrated with a transimpedance preamplifier (TIA), and an MCU control unit. All SFP optical modules meet Class I laser safety requirements. Bidirectional 1.25G SFP modules comply with SONET OC-24-LR-1 and the RoHS directive.

Fibre optic SFP transceivers for a wide range of applications

The pair of 1.25G WDM 1310/1550NM SM 20KM SC SFP modules can be used, among others, in Gigabit Ethernet, fibre optic channels, switch-to-switch interfaces, switched backplane applications, router/server interfaces and other optical transmission systems.

Special features

• Dual data rate 1.25 Gbps/1.063 Gbps
• 1310 nm FP laser and PIN photodetector for transmission over 20 km
• Compliant with SFP MSA and SFF-8472 with SC socket
• Digital diagnostic monitoring - internal or external calibration
• Compatible with SONET OC-24-LR-1 and the RoHS directive
• Single +3.3 V power supply
