Teltonika TSW304 | Switch | 4x RJ45 1000Mb/s, DIN
EAN: 4779051840144
Reference: TELTONIKA TSW304000010
287.99 zł gross gross / meter 234,14 zł netto gross / piece
Warranty and service support
Available options and delivery cost
Same-day shipping
Payments methods
Industrial router with built-in DIN rail from Teltonika Networks

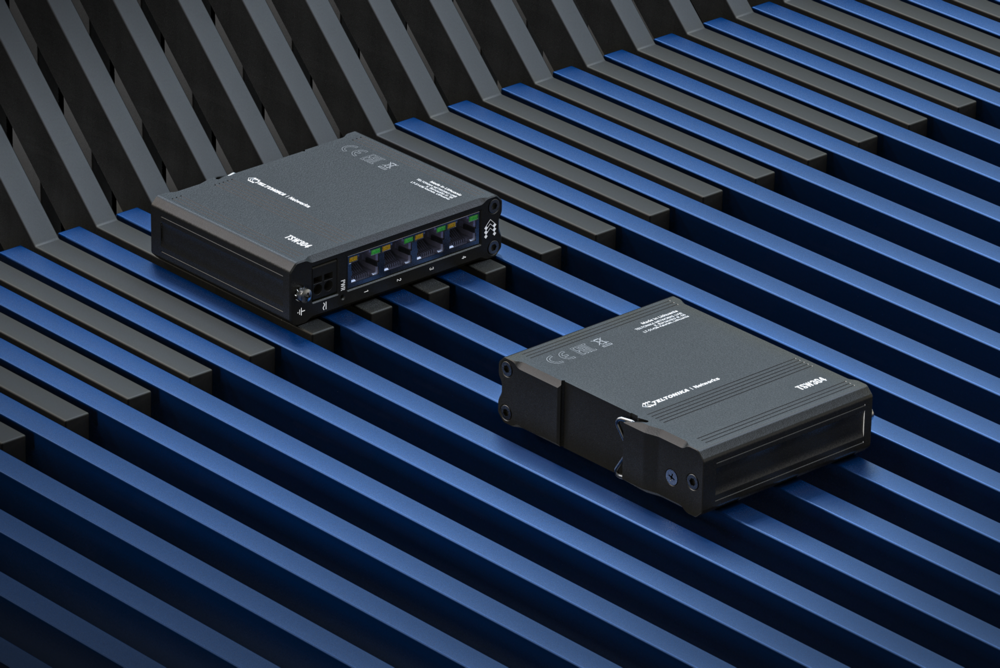

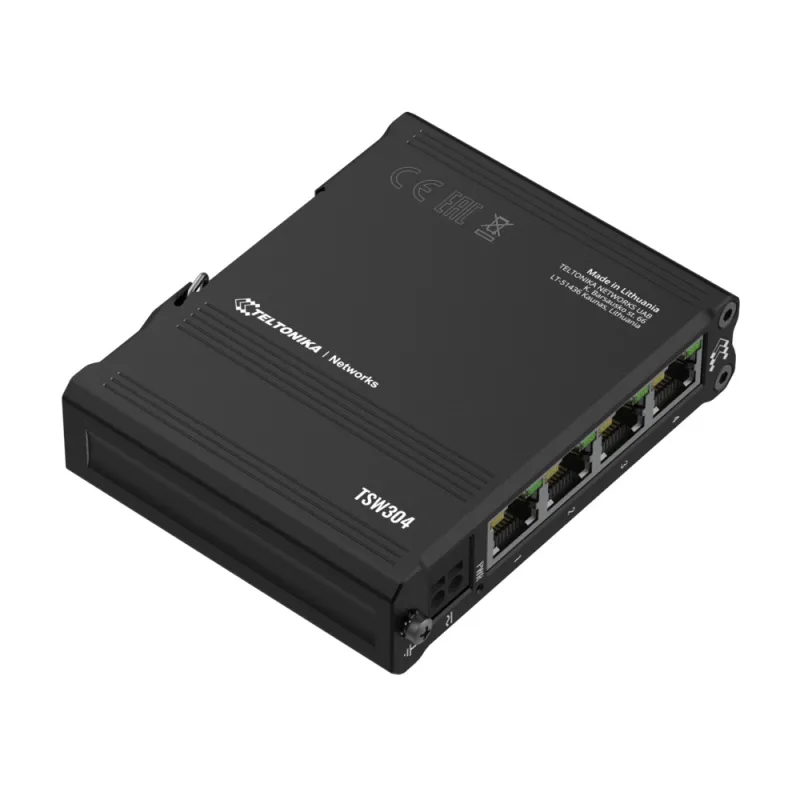

The TSW304 is Teltonika Networks ' first unmanaged switch with an integrated, built-in DIN rail mount and 4 Gigabit Ethernet ports.
Key features of TSW304
- Compact size

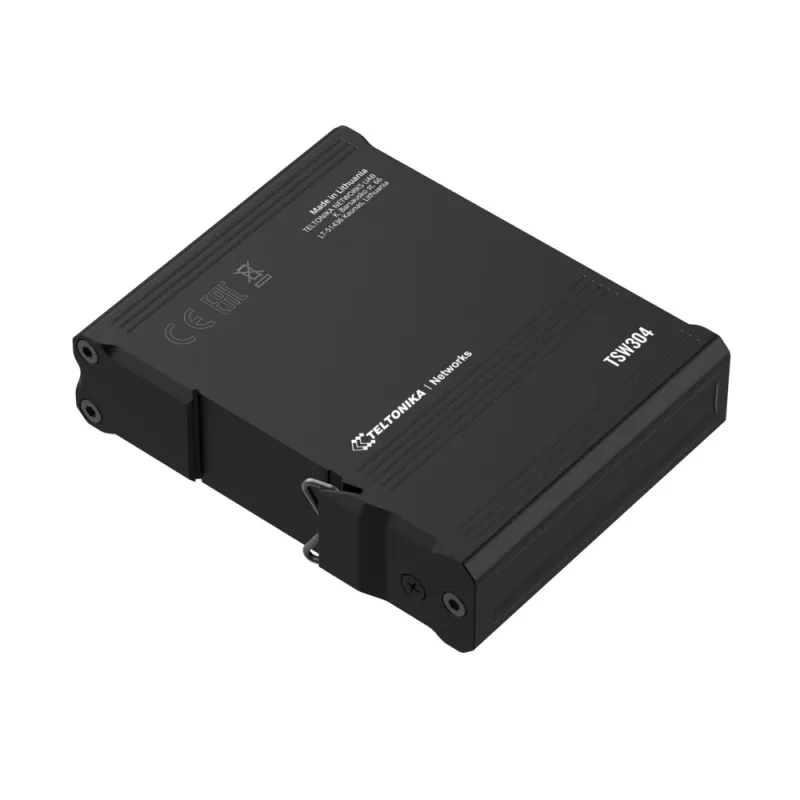

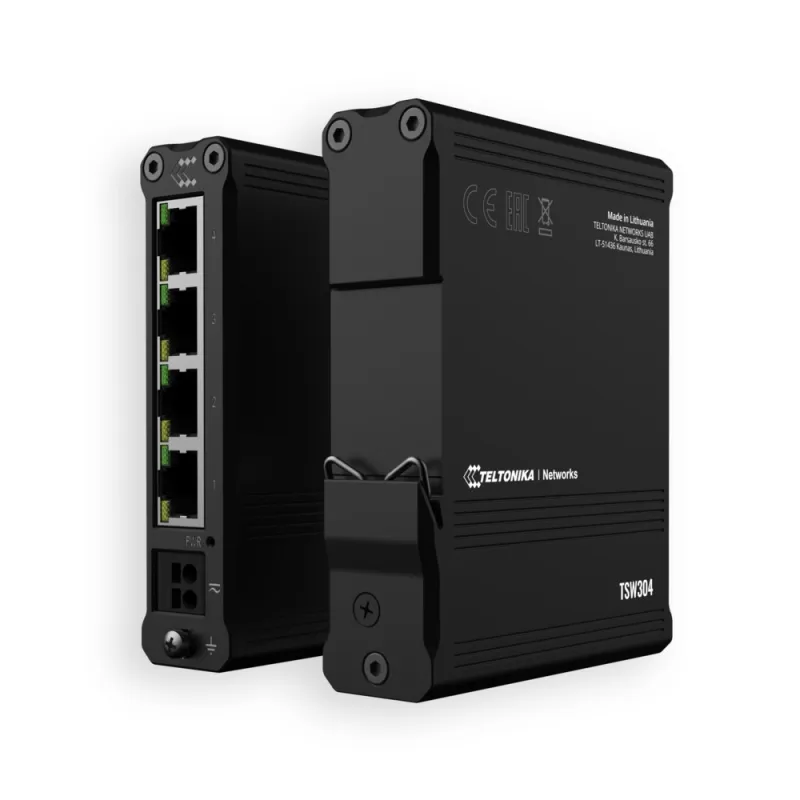

- Built-in, integrated DIN mount
- Wide range of supported supply voltages
- 4 x Gigabit Ethernet with speeds up to 1000 Mbps
- Robust aluminum housing
- Wide operating temperature range
Gigabit ports
The TSW304 switch is equipped with four Gigabit Ethernet ports supporting IEEE 802.3, IEEE 802.3u and 802.3az Ethernet standards. Ideal for cost-effective, broadband solutions that provide reliable data throughput.

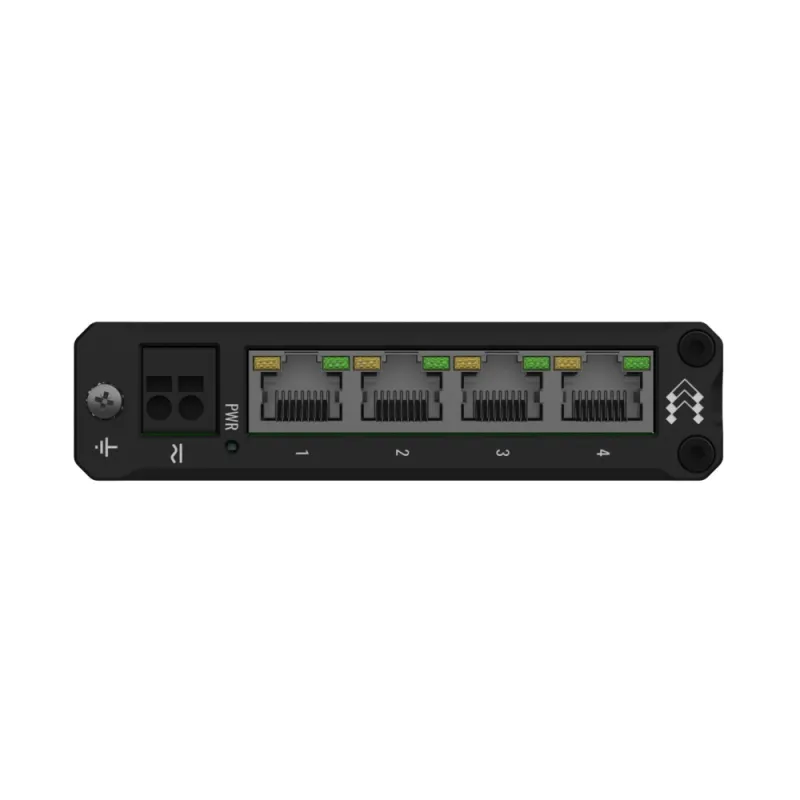

2-pin industrial power socket
The Teltonika TSW304 switch has a 2-pin industrial power socket and a wide range of supported supply voltages (7-57 VDC and 9-40 VAC).
Regulatory Approvals CE, REACH, RoHS, WEEE, UKCA, FCC, IC, CB, RCM
Power source AC/DC
Height 25 mm
Input voltage 9 V
LED indicators Power
Wall mountable Yes
Width 102 mm
Depth 81.5 mm
Packet buffer memory 0.128 MB
Power consumption (max) 1.44 W
Power consumption (typical) 0.26 W
Humidity measurement range 10 – 90%
DIN rail mounting Yes
Switching capacity 8 Gb/s
Networking standards IEEE 802.3
10G support No
Auto MDI/MDI-X Yes
DC input voltage 7 V
Operating temperature (T-T) -40 to 75 °C
Jumbo frames 9216
Jumbo frames support Yes
MAC address table 2000 entries
International Protection (IP) code IP30
Power over Ethernet (PoE) Yes
Power over Ethernet (PoE) type supported Passive PoE
Product colour Black
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Watch case material Aluminium
Basic switching RJ-45 Ethernet ports quantity 4
Product weight 210 g
