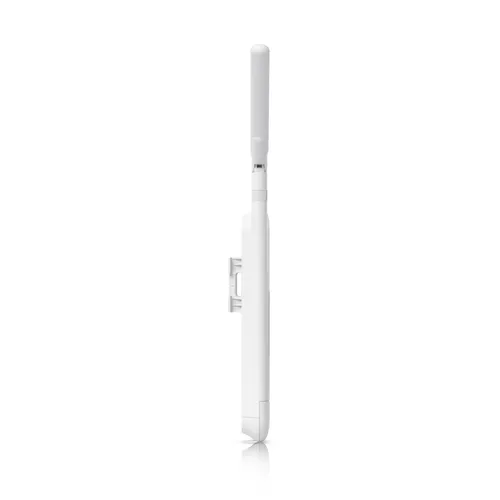

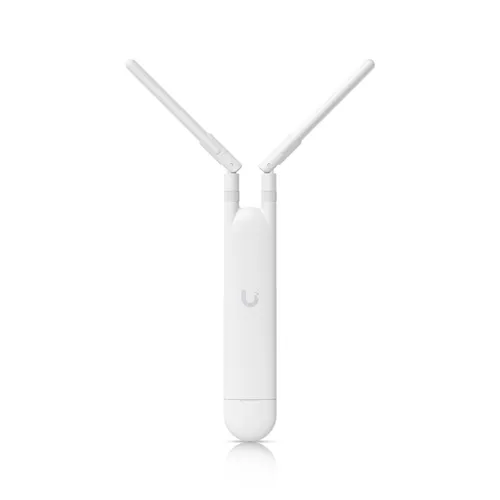

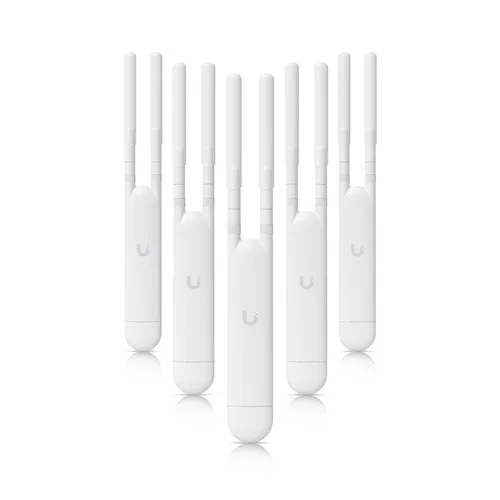

Unifi UAP-AC Mesh belongs to the UniFi system created by Ubiquiti to easily build WiFi access anywhere you want. Its minimalist design is inconspicuous, but it conceals endless possibilities of Mesh network expansion within UniFi. The advantage is easy installation inside and outside of buildings. This set of access points is perfect for creating a wireless Mesh network in public places. The Wireless Uplink function enables wireless connectivity between access points in an extended range. One UniFi AP uplink (connected by cable) supports up to 4 wireless downlink connections on a single operating band, allowing you to receive devices wirelessly in their default state and make changes to the network topology in real time. For devices that support Plug & Play Mesh, this feature is extended to allow multiple wireless uploads.
The device works in a Multi-Hop network, which increases transmission speed. You can easily build wireless network infrastructure in public places using UniFi UAP-AC Mesh series devices.
The UniFi AC Mesh AP has adjustable dual-band omni antennas, as well as the ability to use any 5 GHz omni antenna to provide coverage in densely populated areas with numerous access points and clients, such as a conference room.
Basic technical data | |
Dimensions | 353 x 46 x 34.4 mm (13.9 x 1.81 x 1.35") |
Weight | 152 g (5.36 oz) with antennas |

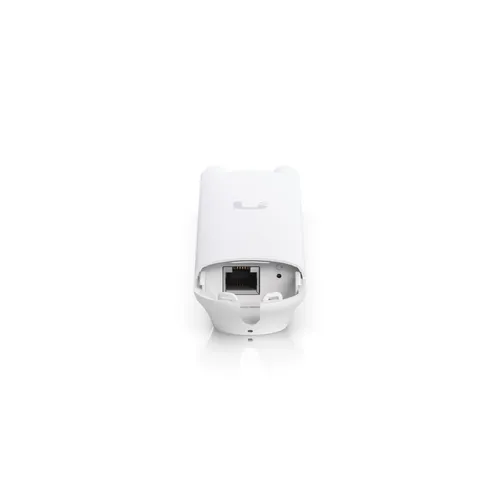

Network Interfaces | (1) Ethernet 10/100/1000 port |
Buttons | Reset |
Power supply methods | 24V Passive PoE (Pairs 4, 5+; 7, 8 Return); 802.3af Alternative A (Pairs 1, 2+; 3, 6 Return) (Supported voltage range: DC 44-57 VDC) |
Power supply | 24V, 0.5A Gigabit PoE |
Saving energy | Yes |
Maximum power consumption | 8,5W |
Max. power TX | 20 dBm |
Antennas | (2) Omni external dual-band antennas 2,4GHz - 3dBi 5GHz - 4dBi |
Wi-Fi standards | 802.11 a/b/g/n/ac |
Network security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
BSSID | Up to four on the radio |

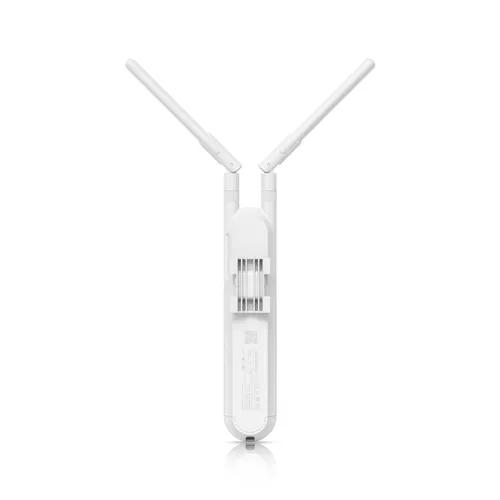

Installation | Wall/post/Fast-mount (kits included) |
Operating temperature | -30 to 70° C (-22 to 158° F) |
Operating humidity | 5 to 95% non-condensing |
Certificates | CE, FCC, IC |
Advanced traffic management | |
VLAN | 802.1Q |
Advanced QoS | Bandwidth limitation for each user |
Guest traffic isolation | Yes |
WMM | Voice, Video, Best Effort, and Background |
Number of simultaneous clients | 250+ |
Supported data rates (Mbps) | |
802.11ac | 6.5 Mbps to 1300 Mbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80) |
802.11n | 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40) |
802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
802.11b | 1, 2, 5.5, 11 Mbps |
Maximum wireless transmission speed: 1200 Mb/s
Operating temperature from -30 to 70° C (-22 to 158° F)
Power supply: 24V, 0.5A Gigabit PoE
