Simply hang the Aqara E1 Curtain Controller on the rail and start enjoying automatic control of your existing curtains based on weather, time or other Aqara devices running.
The E1 roller shutter controller is compatible with a wide range of smart home ecosystems and voice assistants. Apple HomeKit, Amazon Alexa, Google Assistant, IFTTT and others are supported. Matter support will be available via an OTA update of the Aqara hubs after the official release of the Matter specification.

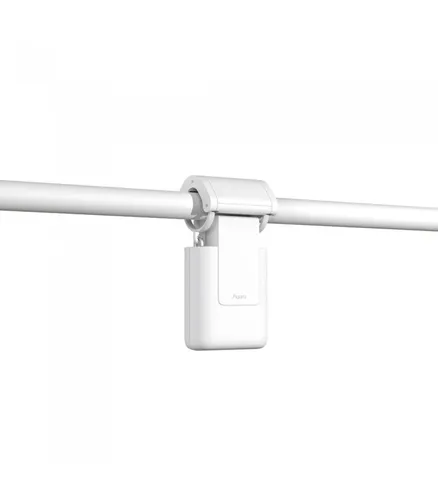

No tools are needed. Simply mount the Aqara E1 blind controller on your existing curtain rods and hide it behind the curtain, then follow the directions and complete the setup in the Aqara Home app.
State-of-the-art power-saving technologies and a huge 6,000 mAh battery guarantee up to a year of use time. The most versatile Type-C port is used for charging and even continuously powering the device.
The E1 roller shutter motor supports virtually any type of curtain rod. The Rod version fits rod curtain rods, while the Track version will be ideal for rail curtain rods ( U-Rail and I-Rail).
Apple's Siri, Amazon Alexa and Google Assistant are supported. Choose the most popular voice assistant you want to easily control the Aqara E1 controller with a voice command.
The E1 roller shutter motor can be started with just one touch: pulling the curtain lightly, pressing the Aqara mini switch, or turning the Aqara cube once.
In the morning, the curtains will slowly open just before you wake up to make your mornings more pleasant. When the sun is too bright, the curtains will partially close. Finally, the curtains will open just before sunset, so you can enjoy the view. Everything can be configured in the Automation section of the Aqara Home app.
Before bedtime, the Aqara motion sensor placed at the top of the bed will cause the E1 curtain controller to close the curtains, so you can sleep more comfortably and have pleasant dreams.
Aqara's temperature and humidity sensor will cause the E1 curtain controller to close the bedroom curtains when the humidity level in the bathroom rises, and your privacy will be protected when you leave the bathroom.
The Aqara Home app has a powerful scheduling feature, including days of the week, holidays, monthly and yearly repeats, geofencing, and sunrise and sunset.
| Technical data | |
| Dimensions | 140.5 x 96 x 44 mm |
| Rated current | 1,5 A |
| Rated torque | 0.2 Nm |
| Wireless protocol | Zigbee 3.0 IEEE 802.15.4 |
| Model | CM-M01 (CM-Curtain Motor products, M01-first motorized products) |
| Battery Type | Lithium battery (not replaceable) |
| Rated voltage | 5 V |
| Rated input power | 7,5 W |
| Rated rotor speed | 100 rpm |
| Speed | 12 cm/s |
| IP class | IP20 |
| Operating humidity | 0 ~ 95% RH, non-condensing |
| Operating temperature | 0°C ~ 45°C |
